RAKARJ20 868MHz Whip Antenna Datasheet
Overview

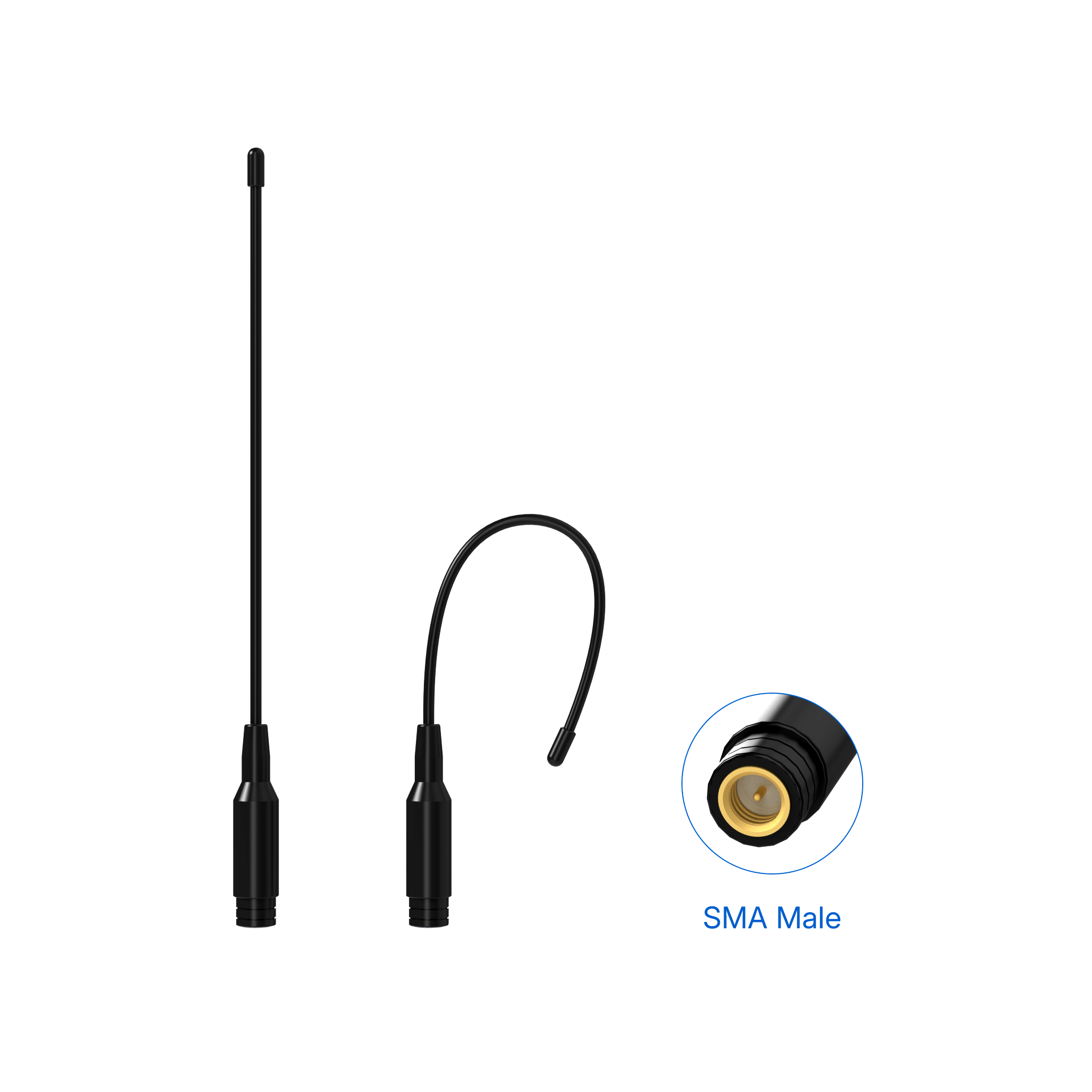

Figure 1: RAKARJ20 Antenna OverviewDescription
The RAKARJ20 868 MHz Whip Antenna is a compact omnidirectional antenna for sub-GHz mesh networking. It is optimized for Meshtastic and similar low-power applications in the EU868 ISM band.
Its vertical polarization and stable impedance matching improve signal reliability. The lightweight whip design supports portable nodes, handheld devices, and fixed gateways. It is suitable where long-range communication and consistent radiation performance are required.
This Whip Antenna also supports LoRa and LoRaWAN IoT applications. It enables reuse across mesh and star network topologies.
Features
- Frequency Range: 863~870 MHz
- Peak Gain: 2 dBi
- VSWR: ≤1.5
- Omnidirectional radiation (360º horizontal beamwidth)
- Vertical polarization
- Lightweight 200 mm whip design
- SMA connector interface
Specifications
| Parameters | RAKARJ20 |
|---|---|
| Frequency Range | 863~870 MHz |
| Peak Gain | 2 dBi |
| Horizontal Beamwidth | 360º |
| Vertical Beamwidth | 45±3º |
| VSWR | ≤1.5 |
| Polarization | Vertical |
| Feed Impedance | 50 Ω |
| Maximum Input Power | 10 W |
| Connector Type | SMA |
| Dimensions (mm) | 200 mm |
| Operation Temp (°C) | -40~55º C |
| Humidity | 10%~95% RH non-condensing |
| Weight | 25 g |
| Base Material | Rubber |
| Use Environment | Indoor / Outdoor |
| Rated Wind Velocity | 36.9 m/s |
