Barometric Pressure Monitoring Solution - Datasheet
Solution Overview​
Description​
The Sensor Hub Barometric Pressure Monitoring solution is a version of the Sensor Hub that includes the popular RAK1902 barometric pressure sensor in the Sensor Probe. This solution can be used in scenarios with critical requirements for barometric pressure, such as meteorology, aviation, marine navigation, engineering, and construction, among others.
With the plug-and-play feature of the Sensor Hub, the Barometric Pressure Solution comes with pre-installed components ready for easy installation and connection. The sensor provides highly accurate barometric pressure readings, with the Sensor Hub collecting and transmitting the data via LoRaWAN or NB-IoT/CAT M1.
The Sensor Hub’s connectivity function allows for versatile data transmission to the cloud using the two most commonly used communication protocols in IoT. This versatility ensures that data is readily available for storage, visualization, and in-depth analysis, enabling informed decision-making based on comprehensive knowledge of barometric pressure levels.
Features​
- Supports LoRa® and NB -IoT/LTE CAT-M wireless communication modes
- Support LoRa frequency band: CN470, EU868, IN865, RU864, US915, AU915, KR920, and AS923-1/2/3/4
- Easy to configure, and the network access configuration can be completed through the WisToolBox app on mobile devices.
- Single wire protocol
- Automatic recognition of the sensor type
- Low power consumption
- External DC power supply (optional)
- Solar panel power supply (optional)
- Long transmission distance
- Waterproof (probe body protection level: IP67)
- Easy to install
Device List​
Device List | Description |
---|---|
1 x Sensor Hub 1 x Mounting Kit | Sensor Hub + SensorHub Installation Kit |
1 x Micro Sensor Probe | RAK1902 Barometric Pressure Sensor |
1 x Power Adapter 1 x Power Cable | Sensor Hub Power Adapter + Power Cable |
1 x Cable Tie | For wiring or fixing |
Hardware Specifications​
Sensor Hub Datasheet​
For more detailed information about the Sensor Hub, refer to the Sensor Hub Datasheet.
RAK1902 Barometric Pressure Sensor Datasheet​
Parameter | Value |
---|---|
Pressure Range | 260 ~ 1260Â hPa |
Pressure Precision | ± 0.1 hPa |
Pressure Sensitivity | 4096Â LSB/hPa |
RMS Pressure Sensing Noise | 0.0075 hPa RMS |
Pressure Output Data Rate | 1/10/25/50/75 Hz |
Temperature Range | -40° C ~ 85° C |
Temperature Precision | ±1.5° C |
Temperature Output Data Rate | 1/10/25/50/75Â Hz |
Interface | I2C |
Module Size | 10Â mm x 10Â mm |
VDD (module power supply) | 1.7Â V ~ 3.6Â V |
Shutdown Current | 1Â uA |
Solar Cell System Specifications​
Definition of Terms​
List of AbbreviationsAbbreviation | Definition |
---|---|
BMS | Battery Management System |
BMU | Battery Management Unit |
BOL | Begin of Life |
Bus-bar | Battery Pole Connecting Rod |
CMC | Cell Manager Circuit |
EOL | End of Life |
HV | High Voltage |
LV | Low Voltage |
OCV | Open Circuit Voltage |
SOC | Stage of charge |
Terminology | Definition |
---|---|
Battery Cell | Commonly known as a battery is the fundamental unit of energy storage, which converts chemical energy to electrical energy. |
Battery Module | Intermediate energy storage unit, comprising several individual cells and circuitry components, along with electrical and communication interfaces. |
Battery Pack | A comprehensive power system consisting of multiple battery modules and circuits working together to supply power to electrical devices. |
Rated Voltage | Refers to the approximate voltage value that a battery is designed to operate at or provide. |
Capacity | The amount of electrical charge that a fully charged battery can store and subsequently provide to a device or system. It is typically measured in ampere-hours (Ah). |
Energy Capacity | The total amount of energy that a fully charged battery can deliver under specific conditions. Unit: Watt-hours (Wh) or kilowatt-hours (kWh) |
Rated Capacity | At the beginning of life (BOL), the minimum capacity that a fully charged battery can provide at a discharge rate of 1 C (discharge C-rate). |
Units | V: Volt, voltage A: Ampere, current Ah: Ampere-hour, charge Wh: Watt-hour, electrical energy Ω: Ohm, resistance ° C: degrees Celsius, temperature mm: millimeter, length s: seconds, time kg: kilogram, weight Hz: Hertz, frequency |
Main Specifications​
Parameter | Specifications | Remark |
---|---|---|
Battery Model | RAK9154 | |
Battery Cell Model | Rechargeable cylindrical lithium-ion battery H18650CH | H18650CH or equivalent product. |
Rated Capacity | 5200Â mAh | |
Rated Voltage | 10.8Â V | Single battery voltage 3.6Â V |
Operating Voltage Range | 9Â V~12.6Â V | |
Rated Power | 56.16Â Wh | |
SOC Transportation Range | 50Â % | |
Operating Temperature | Charging temperature: 0° C Discharge temperature: -20° C | |
Storage Temperature | -20° C~60° C | More than three months @25° C |
Operating Humidity | 20~80° %RH | |
PV Input | 18° V/1.0° A | Typical |
Maximum PV Input Voltage | 30Â V | Open circuit voltage |
Maximum Continuous Charging Current | 0.2Â C (1.0Â A) | Limited by solar charger |
Maximum Continuous Discharging current | 0.4Â C (2.0Â A) | |
∆ Voltage | ≤20 mV | SOC 30 %~60 %; rest for at least 2 hours after charging or discharging |
Weight | 0.85Â Kg | |

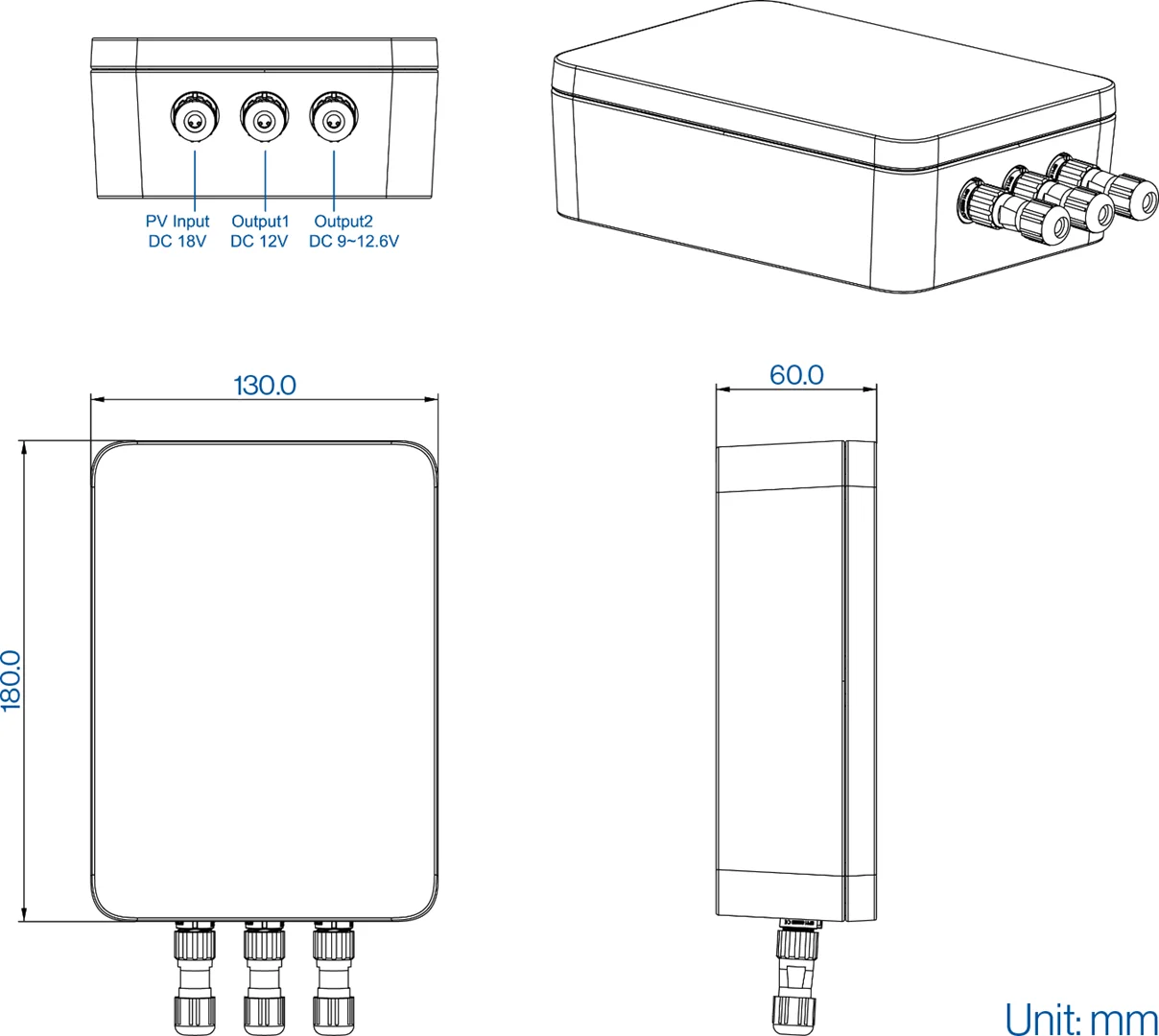

Size | Length: 180 (±3) mm Width: 130 (±3) mm Height: 60 (±3) mm |

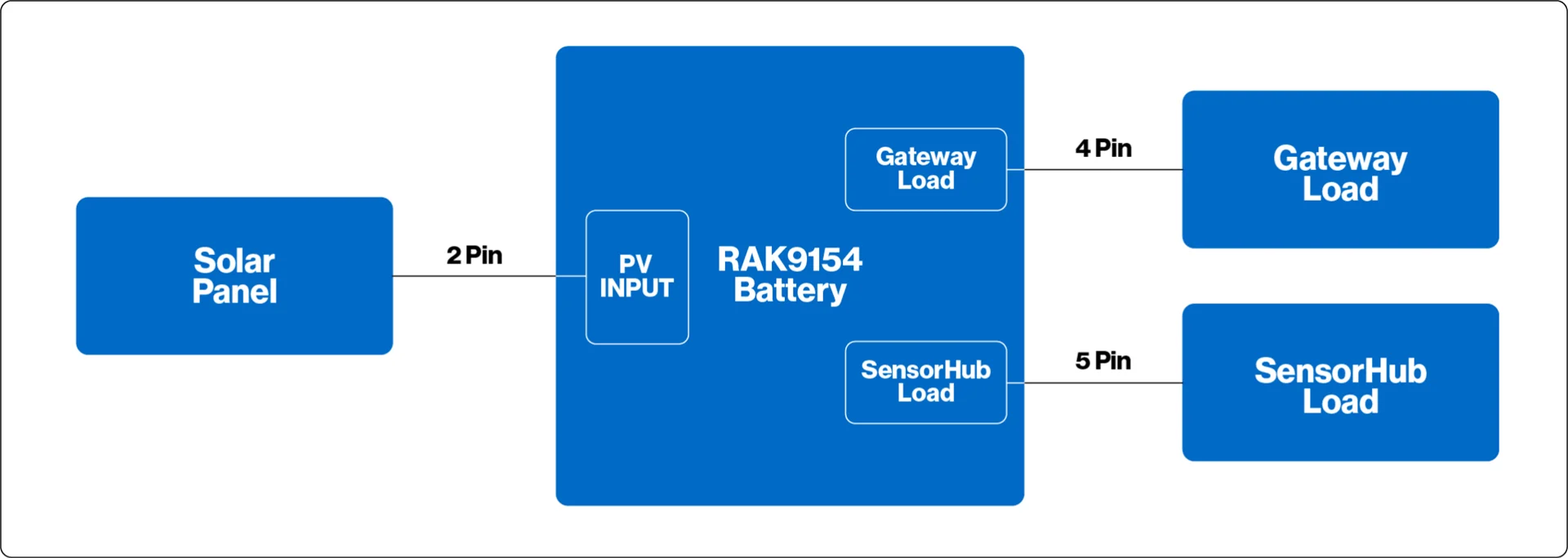

Interfaces​

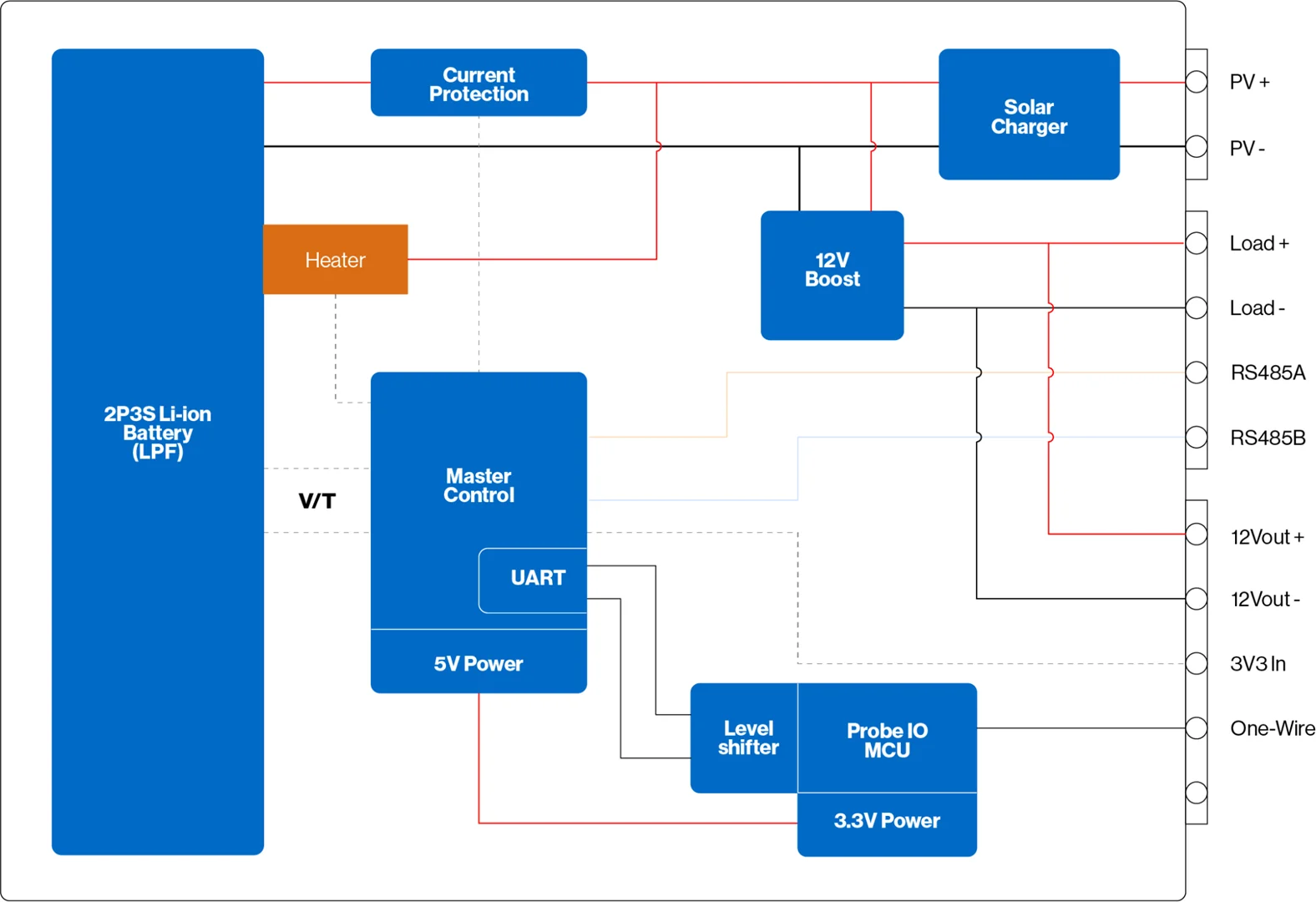

Battery System Structure​
As shown in Figure 2, the RAK9154 battery system comprises two sets of three 2600 mAh battery units connected in series. The system also incorporates one (1) BMS board integrated with an 18 V input solar charger.
- Electrical Characteristics
Battery System Panel Connector​
Connector | Connector Socket Model | Connector Plug Model | Definition | Remark |
---|---|---|---|---|
Gateway Load | SP1110/P4 | SP1110/P4-N | Pin1: P+ | SP11 IP67 Rated current 2Â A Contact diameter 0.75Â mm * 4 |
Pin2: P- | ||||
Pin3: R485A | ||||
Pin4: RS485B | ||||
Sensor Hub Load | SP1110/P5 | SP1110/P5-N | Pin1: P+ | SP11 IP67 Rated current 2Â A Contact diameter 0.75Â mm * 5 |
Pin2: P- | ||||
Pin3: TXD | ||||
Pin4: 3V3_In | ||||
Pin5: RXD | ||||
PV Input | SP1110/P2 | SP1110/P2-N | Pin1: PV+ | SP11 IP67 Rated current 1Â A Contact diameter 1.0Â mm * 2 |
Pin1: PV- |
Sensor Characteristics​
The following tables show the sensor data definition and the data format of the Barometric Pressure Monitoring Solution.
- Register Summary
Sensor Name | Sensor Type | Data Length | Ratio | Range | Unit |
---|---|---|---|---|---|
Temperature | 0x67 | 2 | 0.1 | -40 ~ 85 | ° C |
Barometer | 0x73 | 2 | 0.1 | 260 ~ 1260 | hPa |
- Data Interpretation
ID (Channel) | Type | Data |
---|---|---|
1 byte | 1 byte | 2 bytes |
With the defined data, here's how to interpret the payload received data:
Data Example:Payload (hex) received data: 0367 00CA 0473 24F5
- Temperature Sensor Data Unit
ID (Channel) | Type | Data |
---|---|---|
03 | 67 | 00CA |
Convert the value to decimal:
Temperature: 0367
,
Data: 000CA
00CA (hex) = 202 (dec)
202 × 0.1 (conversion factor) = 20.2° C
- Barometric Pressure Sensor Data Unit
ID (Channel) | Type | Data |
---|---|---|
04 | 73 | 24F5 |
Convert the value to decimal:
Temperature: 0473
,
Data: 24F5
24F5 (hex) = 9461 (dec)
9461 × 0.1 (conversion factor) = 946.1 hPa
Environmental Requirements​
Transportation Requirements​
- When transporting the battery, avoid severe vibrations, shaking, and exposure to sunlight or rain.
- Do not invert the battery to prevent potential short circuits.
- During loading and unloading, exercise caution to prevent the battery from falling, rolling, enduring heavy pressure, or being inverted.
Storage Requirements​
Store the module in a partially charged state, typically around 40Â % state of charge (SOC). Ensure the storage environment meets the following requirements:
Temperature and HumidityParameter | Value | Remark |
---|---|---|
Temperature | -30° C to 50° C, 40% SOC | Storage time < 3 months |
0° C to 25° C, 40% SOC | Storage time > 3 months | |
Humidity | 2%RH to 90%RH | < 85% Recommended |
-
Storage Environment:
- Store the product in a clean, ventilated, and cool environment.
- Avoid direct sunlight, high temperatures, corrosive gases, severe vibration, mechanical shaking, and heavy pressure.
- Keep the product away from heat sources and store it at an altitude below 1500Â meters, maintaining atmospheric pressure between 86Â kPa and 106Â kPa.
-
Maintenance:
- Charge and discharge the device once a month while storing it at room temperature or in a dry and ventilated environment.
- If storing the device takes more than 30 days, adjust the SOC to 40Â % after charging.
- If the module is expected to be stored for more than 30 days, adjust the State of Charge (SOC) to 40% after charging is completed.
The operation of the product must adhere to the provided operating instructions. Installation, maintenance, and usage of this product must strictly comply with relevant safety regulations.
- Avoid storing or using the product in high-temperature environments, and keep it away from heat sources. Temperatures outside the safe range can significantly reduce the performance and lifespan of the product, and may even cause serious consequences such as combustion and explosion.
- Do not store or use the product in environments with high static electricity or high electromagnetic radiation. Doing so may damage the electronic components of the battery, leading to safety hazards.
- Avoid exposing the battery to water or immersing it in water. Otherwise, it may result in internal short circuits, loss of function, or abnormal chemical reactions, leading to fire, smoke explosion, and other incidents.
- If you notice any smoking, heating, discoloration, deformation, or any other abnormalities during the use, storage, transportation, and service of the product, contact a professional immediately for assistance.
- Do not discard waste batteries in fires or incinerators. Waste batteries should be recycled by professional institutions or organizations.
- It is strictly prohibited to place heavy objects on the product or stack them on top of each other.
- Although this module is not a high-voltage energy storage device, improper operation and use of the device may lead to serious consequences, such as combustion and explosion.
- Only professional technicians must handle the installation and maintenance of the battery system. All operations must strictly adhere to relevant safety regulations. Non-professionals are strictly prohibited from installing, maintaining, and misusing the battery system.
