RAK612 WisNode Button Datasheet
Overview
Description
The RAK612 WisNode Button is a remote wireless trigger device. It supports user-defined functions for each key and is based on the LoRaWAN 1.0.2 standard. All prevailing LoRaWAN bands are supported: EU433, CN470, IN865, EU868, AU915, US915, KR920, and AS923.
The RAK612 WisNode Button is suitable for a variety of Smart Home applications: Entertainment system control, Control of Lights, as a Snooze Button for your Alarms, or a Remote trigger. With long-range wireless connectivity, amazing battery life, and four programmable buttons, the possibilities are only limited by your imagination!
Features
- LoRaWAN® compatible
- myDevices Cayenne Certified
- Product Size: 38 mm x 52 mm
- Battery: 300 mAh
- Battery working time: 2 years (Rechargeable)
- Power Consumption: Transmit: 30 mA, Standby: 10 uA
- Operating Temperature: -20° C to 60° C
- Working Environment: Indoor
Application
- Smart Home
- Home Video
- Control Lights
- Snooze Button
- Take Picture
- Wireless Trigger
- Remote Switch
Specifications
Hardware
| Parameter | Value |
|---|---|
| Model | RAK_LB801 LoRaButton |
| Module Size | 38 mm x 52 mm |
| Battery Capacity | 300 mAh (To be ordered individually) |
| Battery Lifespan | 2 Years (Chargeable) |
| Power Consumption | Transmit: 30 mA Standby: 10 uA |
| Operating Temperature | -20° C to 60° C |
| Working Environment | Indoor or Outdoor |
| Equipped with Module | RAK811 |
| LoRaWAN Version | V1.0.2 |
| Network Activation Way | ABP and OTAA |
| Upgrade Method | Serial Port |
Schematic

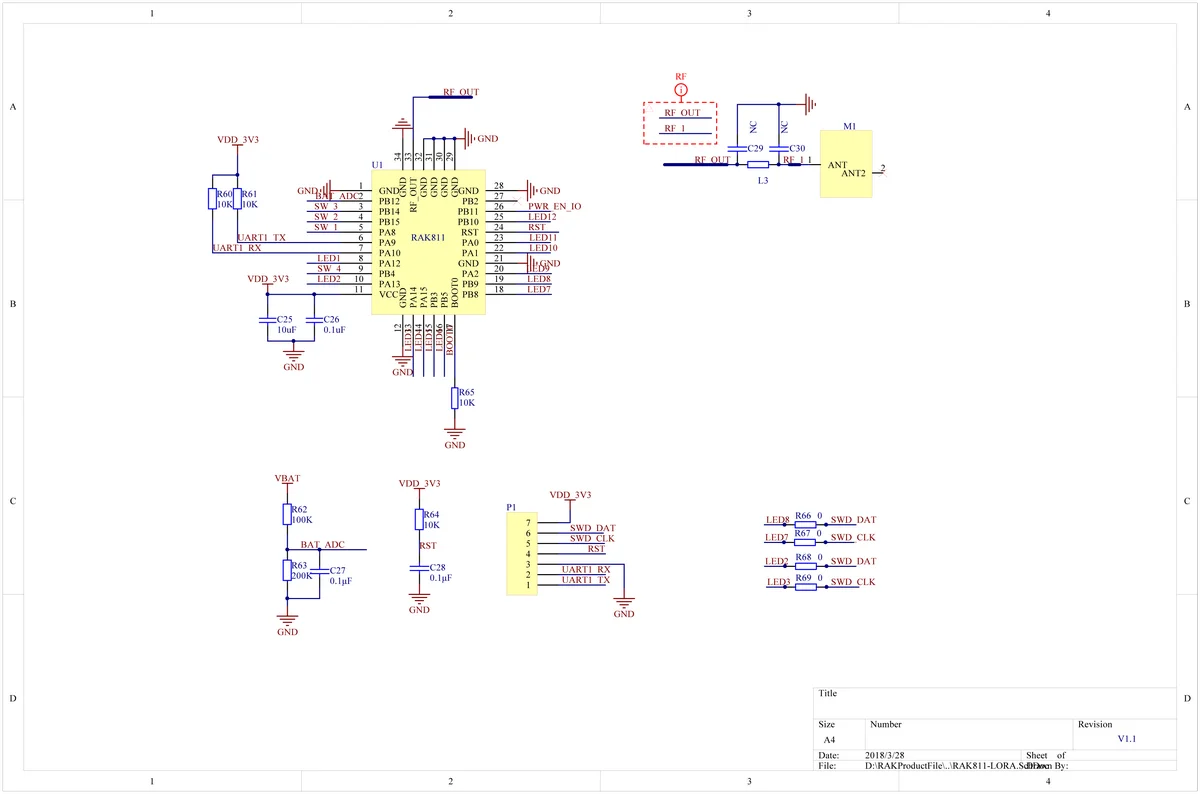

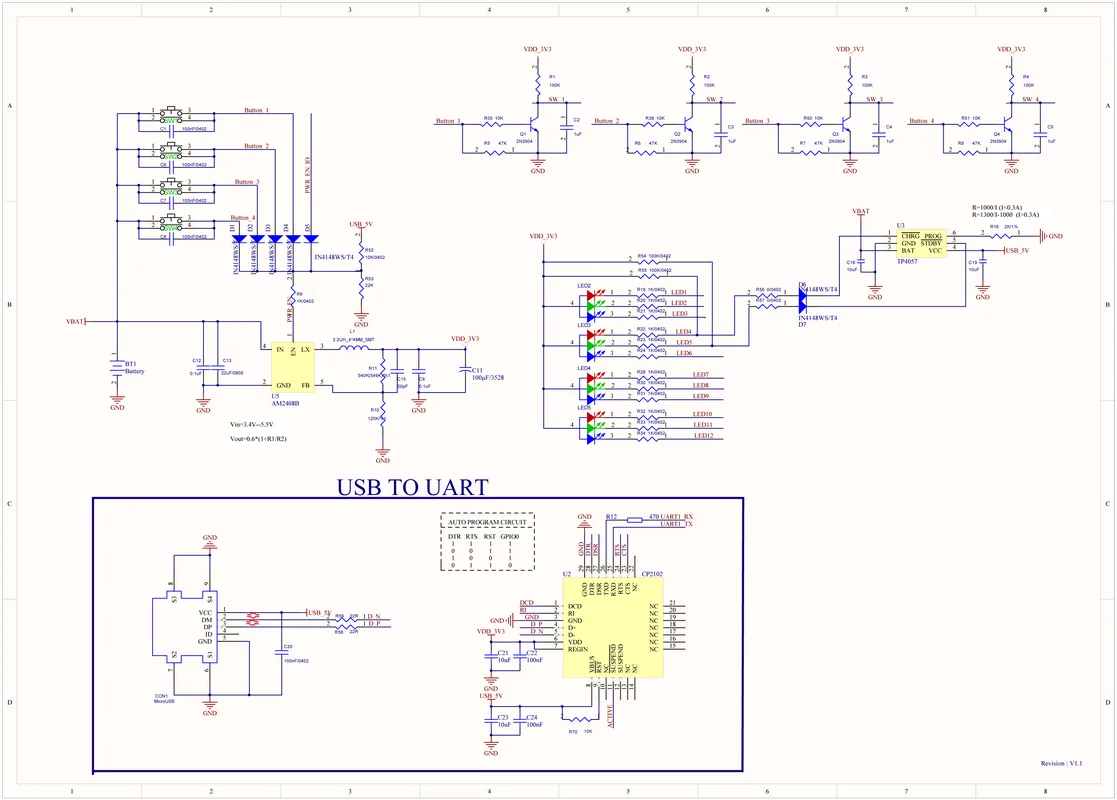

Figure 11517: RAK612 Schematic Diagram
Figure 11518: RAK612 Schematic Diagram

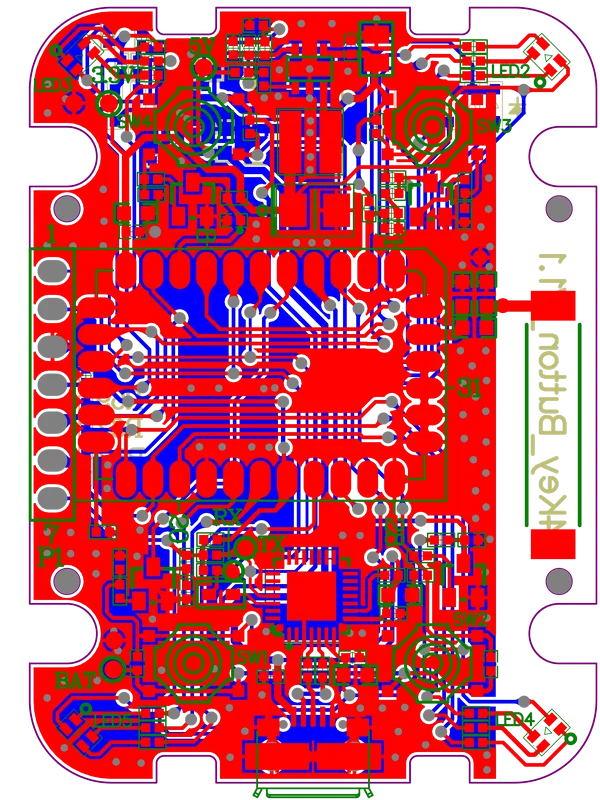

Figure 11519: RAK612 PCB FileModels / Bundles
Ordering Information
| Product | Description | Activation |
|---|---|---|
| RAK612 | Supported LoRaWAN Region: EU433, CN470, EU868, US915, AS923, AU915, KR920, IN865 (Different regions can be switched by upgrading different firmware) | OTAA/ABP |
