RAK7201 WisNode Button 4K Datasheet
Overview
Description
The RAK7201 WisNode Button 4K is a remote wireless trigger device. It supports user-defined functions for each key and is based on the LoRaWAN 1.0.2 protocol. Supported LoRaWAN bands are IN865, EU868, AU915, US915, KR920, and AS923.
This WisNode Button is suitable for a variety of Smart Home applications. Including, but not limited to, entertainment system control, control of lights, a snooze button for the alarms, or a remote trigger. A device with long-range wireless connectivity, amazing battery life, and four programmable buttons. There are tons of applications this device can fit into.
Figure 11655: RAK7201Features
- 4 Buttons with LED indicator
- Product Size: 43 x 57 x 15 mm
- LoRaWAN 1.0.2 compatible
- Battery: 350 mAh
- Battery working time: 1 year (Rechargeable)
- Power Consumption: Transmit: 77.4-153* mA, Standby: 4.8 uA
- Operating Temperature: -20° C to 60° C
- Working Environment: Indoor
*transmit current depends on factors such as transmit power, SF, and Payload Length
Specifications
Overview
| Parameter | Value |
|---|---|
| LoRa protocol | LoRaWAN 1.0.2 Class A |
| LoRa TX power | 20 dBm max |
| LoRa RX sensitivity | -136 dBm |
| LoRa antenna | Spring antenna |
| Battery capacity | 350 mAh |
| Charge current | 500 mA/ 5 V |
| Battery lifetime | 1 year |
| Sleep current | 4.8 uA |
| Operating temperature | -20° C to 60° C |
| Dimensions | 43 x 57 x 15 mm |
| Mounting | Sticker |

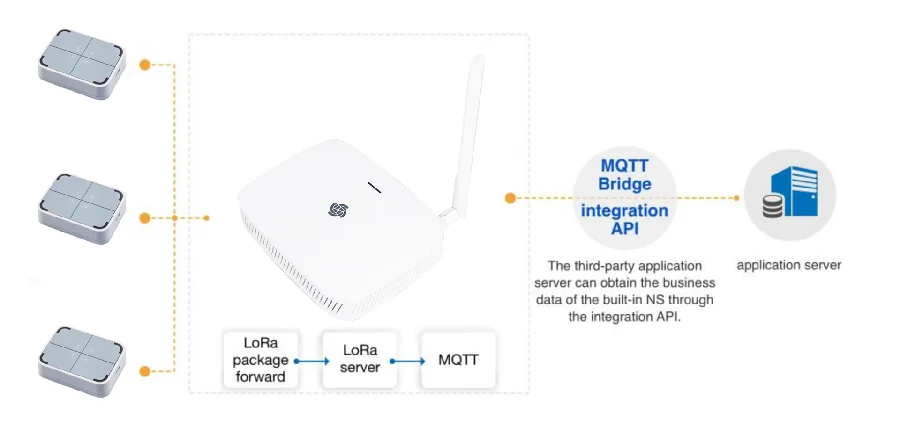

Figure 11656: Deployment ScenarioHardware
The hardware specification covers the parameters of the RAK7201 in terms of electrical and supported LoRaWAN frequency parameters.
RF Characteristics
| Parameter | Value |
|---|---|
| LoRa protocol | LoRaWAN 1.0.2 Class A |
| LoRa TX power | 20 dBm max |
| LoRa RX sensitivity | -136 dBm |
| LoRa Antenna | Spring antenna |
The RAK7201 supports different LoRaWAN frequency bands for different country regions.
| Region | Frequency Band Common Name (MHz) |
|---|---|
| Europe | EU868 |
| India | IN865 |
| North America | US915 |
| Australia | AU915 |
| Asia | AS923 |
| Korea | KR920 |
Actuators
Figure 11657: RAK7201 buttons and LED- Buttons
RAK7201 has 4 buttons, which all can be configured to execute defined functionality. The stock firmware is configured to send the buttons ID number via a LoRa frame, whenever one is pressed.
- LEDs
- Blue LEDs
There are four blue LEDs, one per button, which light when a press occurs.
| Status | Function |
|---|---|
| Flash once | The button is pressed. |
| Flash twice | The server received button information correctly. |
| Four LEDs flash clockwise | Joining the network. |
| Four LEDs flash for 1s | Joining to the network is successful. |
| Four LEDs are lit up | RAK7201 is in configuration mode. |
- Red LED on button 2
The red LED on Button 2 indicates the charging status of the RAK7201.
| Status | Function |
|---|---|
| on | The battery is charging. |
| off | The battery is not charging. |
- Red LED on button 4
The red LED on button 4 indicates the network related information.
| Status | Function |
|---|---|
| Flash for 1s | Joining to the network failed. |
| Flash for 1s after a button is pressed | Not connected to the network. |
| Flash twice | Transmission failed. |
Interfaces
RAK7201 has a standard Micro USB port on the side, that adheres to the USB 2.0 specification. This port is used as both configuration interface and for charging the battery.
Electrical Characteristics
The following are the electrical characteristics of RAK7201 WisNode Button 4K. For specific details regarding a project, contact us.
Power consumption:
| Parameter | Value | Unit |
|---|---|---|
| Transmitting current | 77.4-153* | mA |
| Standby current | 4.8 | uA |
*transmit current depends on factors as transmit power, SF and payload length.
Battery Specification
The RAK7201 comes with a 350 mAh rechargeable LiPo battery inside. In need of replacement, adhere to the specification.
| Parameter | Value | Unit |
|---|---|---|
| Nominal Battery Voltage | 3.7 | V |
| Nominal capacity | 350 | mAh |
| Temperature range | -20º~60º (discharge), 15º-45º (charging) | C |
| Battery dimensions | 5.7 x 21 x 37.5 | mm |
Firmware
| Model | Version | Source |
|---|---|---|
| RAK7201 | V1.0.2 | Download |
Working Modes
The WisNode Button 4K supports LoRaWAN. LoRaWAN supported modes are OTAA and ABP network mode. Class A communication.
Models/Bundles
| Model | Description |
|---|---|
| RAK7201 | 4 keys LoRaWAN button (EU868/IN865/AU915/US915/KR920/AS923) |
