RAK9150 PSU Datasheet
Overview
Description
The PSU is an AC/DC power supply product designed to provide a regulated 12 VDC / 1.5 A output for compatible RAK gateways, such as the RAK7267 and RAK7240V2/RAK7240CV2. It is supplied as a complete power solution with an AC plug, PSU body, and DC output cable, allowing you to select the appropriate option according to the required AC plug type.
RAK9150 features IP67-rated protection, Class II power supply design, energy efficiency level VI, low no-load power consumption, and built-in protection against short circuits, overload, and overvoltage. It is suitable for office facilities, industrial equipment, consumer electronic devices, telecommunication devices, and security alarm systems.
Product Models
Select the product model based on the AC plug type required for the installation region.
NOTE
If your region is not covered by the standard Type A, Type I, Type C, or Type G plug options, or if the provided cable length does not meet your requirements, contact RAKwireless for a customized solution.
| Model | AC Plug Type | Pins | Grounding | Notes |
|---|---|---|---|---|
| RAK9150-A2 | Type A | 2 pins | Not grounded | For regions or installations requiring a Type A AC plug. |
| RAK9150-I2 | Type I | 2 pins | Not grounded | For regions or installations requiring a Type I AC plug. |
| RAK9150-C2 | Type C | 2 pins | Not grounded | For regions or installations requiring a Type C AC plug. |
| RAK9150-G3 | Type G | 3 pins | Not grounded; plastic earth pin for shutter opening only | For regions or installations requiring a Type G AC plug. |
Features
- IP67-rated enclosure
- Energy efficiency level VI
- Class II power supply
- 3-year warranty
- Universal AC input/Full range
- No-load power consumption < 0.1 W
- Short-circuit, overload, and overvoltage protection
- Wide operating temperature range: -40 °C to +85 °C
Applications
- Office facilities
- Industrial equipment
- Consumer electronic devices
- Telecommunication devices
- Security alarm systems
Specifications
Overview

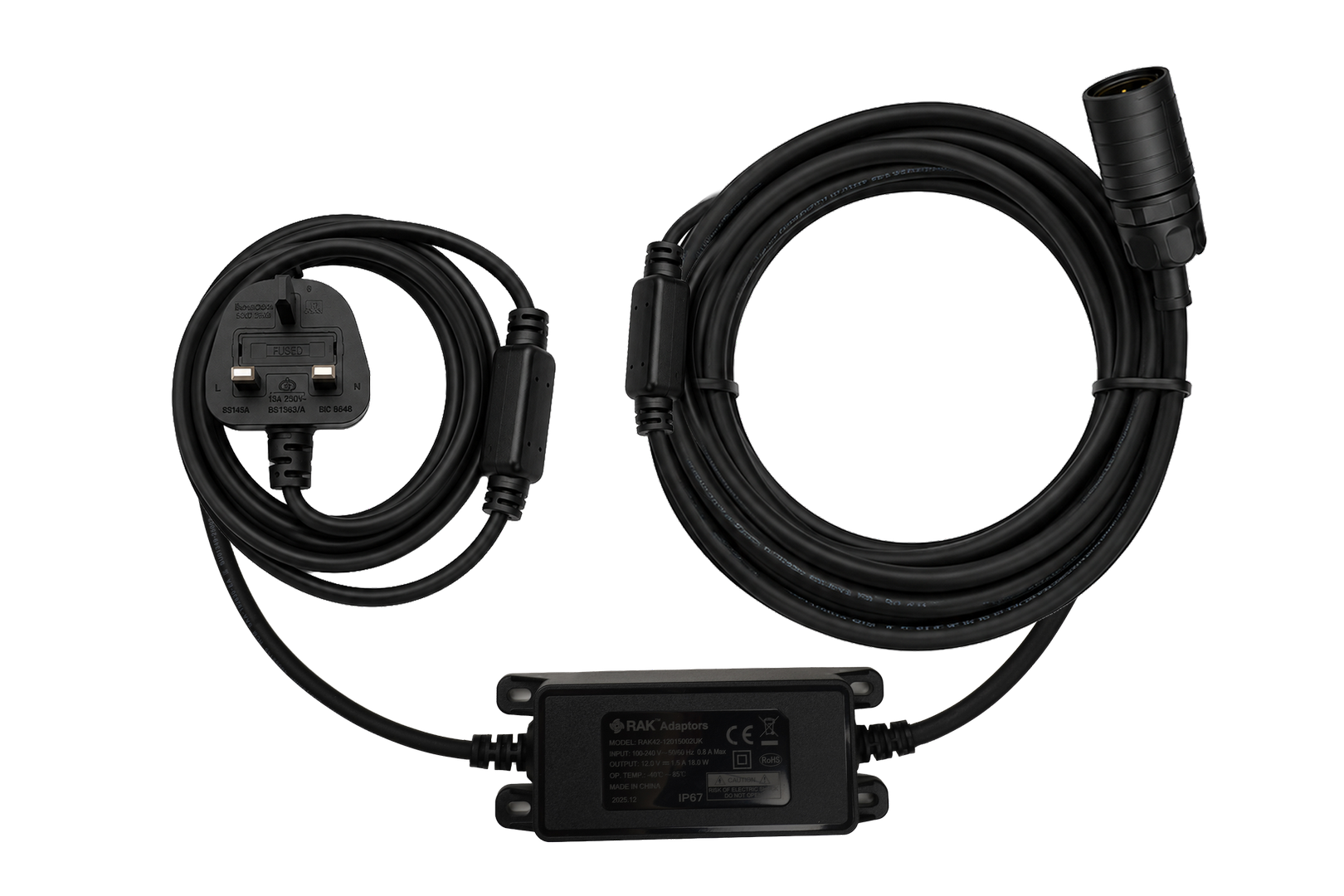

Figure 1: PSU OverviewHardware
Cable Assembly Options

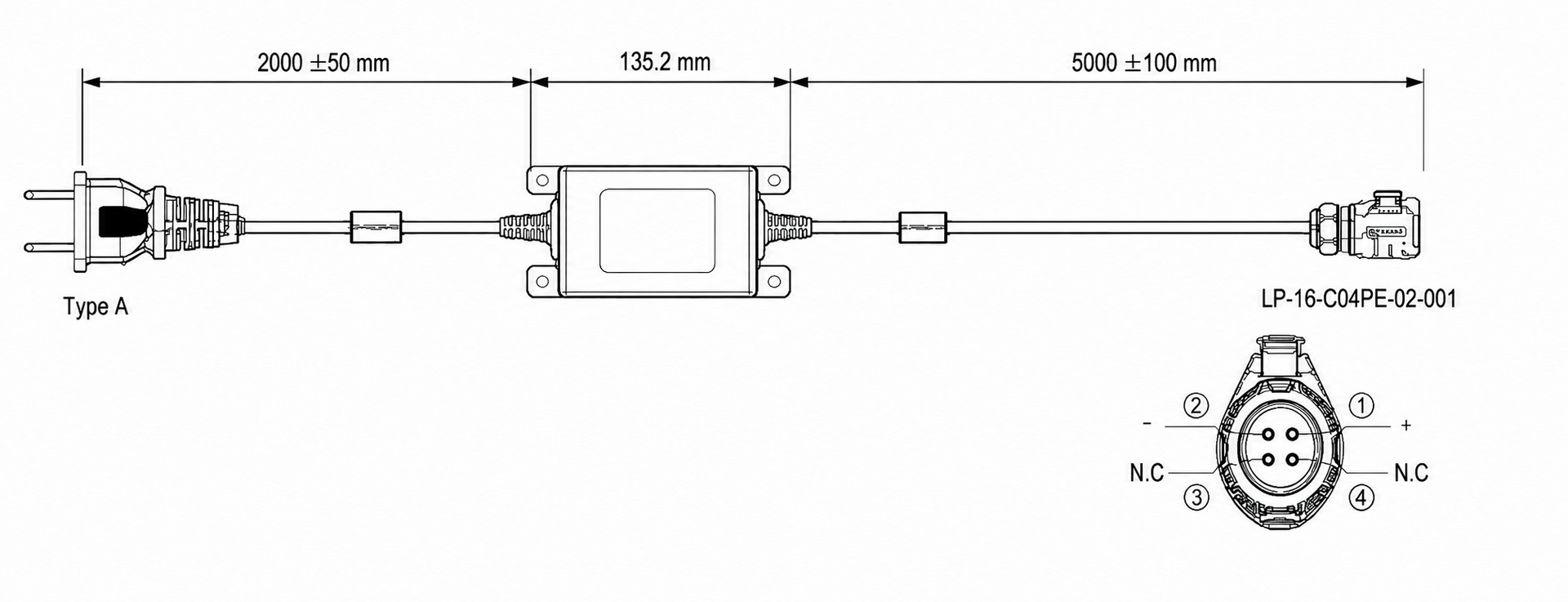

Figure 1: PSU AC Input Power Cable Assembly – Type A| Category | Item | Specification |
|---|---|---|
| AC Input | Plug Type | Type A |
| AC Input | Cable Length | 2000 ±50 mm, from AC plug to PSU |
| DC Output | Cable Length | 5000 ±100 mm, from DC connector to PSU |
| DC Output | Pin 1 | + |
| DC Output | Pin 2 | - |
| DC Output | Pin 3 | N.C / Not Connected |
| DC Output | Pin 4 | N.C / Not Connected |

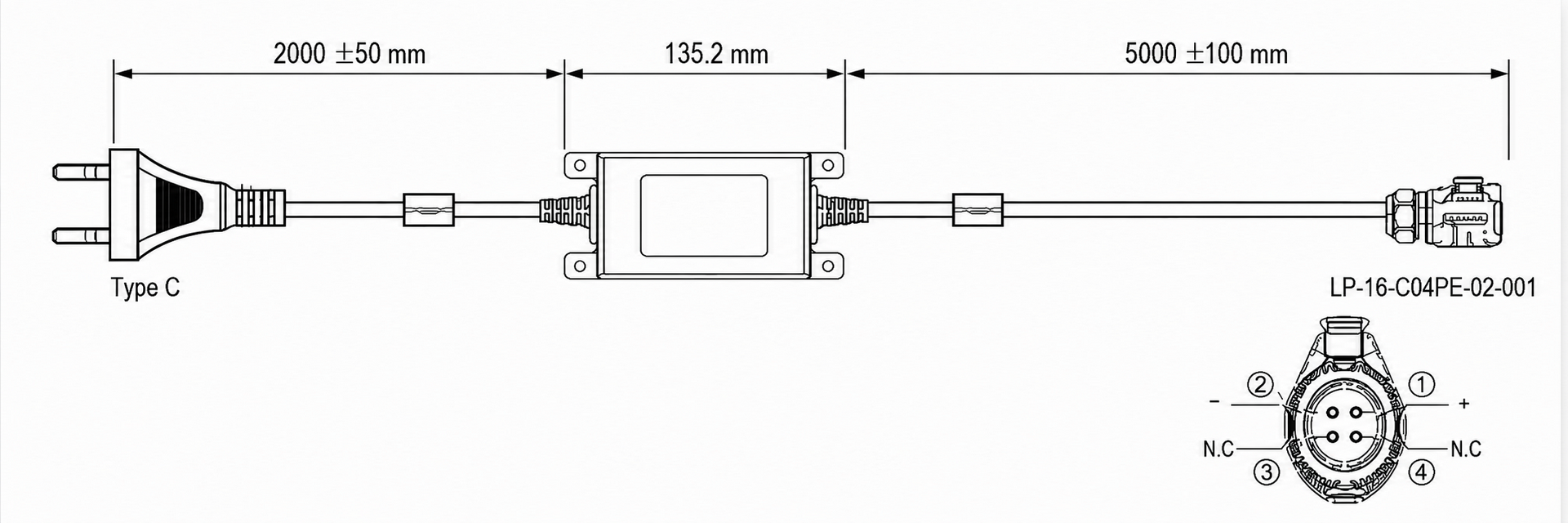

Figure 1: PSU AC Input Power Cable Assembly – Type C| Category | Item | Specification |
|---|---|---|
| AC Input | Plug Type | Type C |
| AC Input | Cable Length | 2000 ±50 mm, from AC plug to PSU |
| DC Output | Cable Length | 5000 ±100 mm, from DC connector to PSU |
| DC Output | Pin 1 | + |
| DC Output | Pin 2 | - |
| DC Output | Pin 3 | N.C / Not Connected |
| DC Output | Pin 4 | N.C / Not Connected |

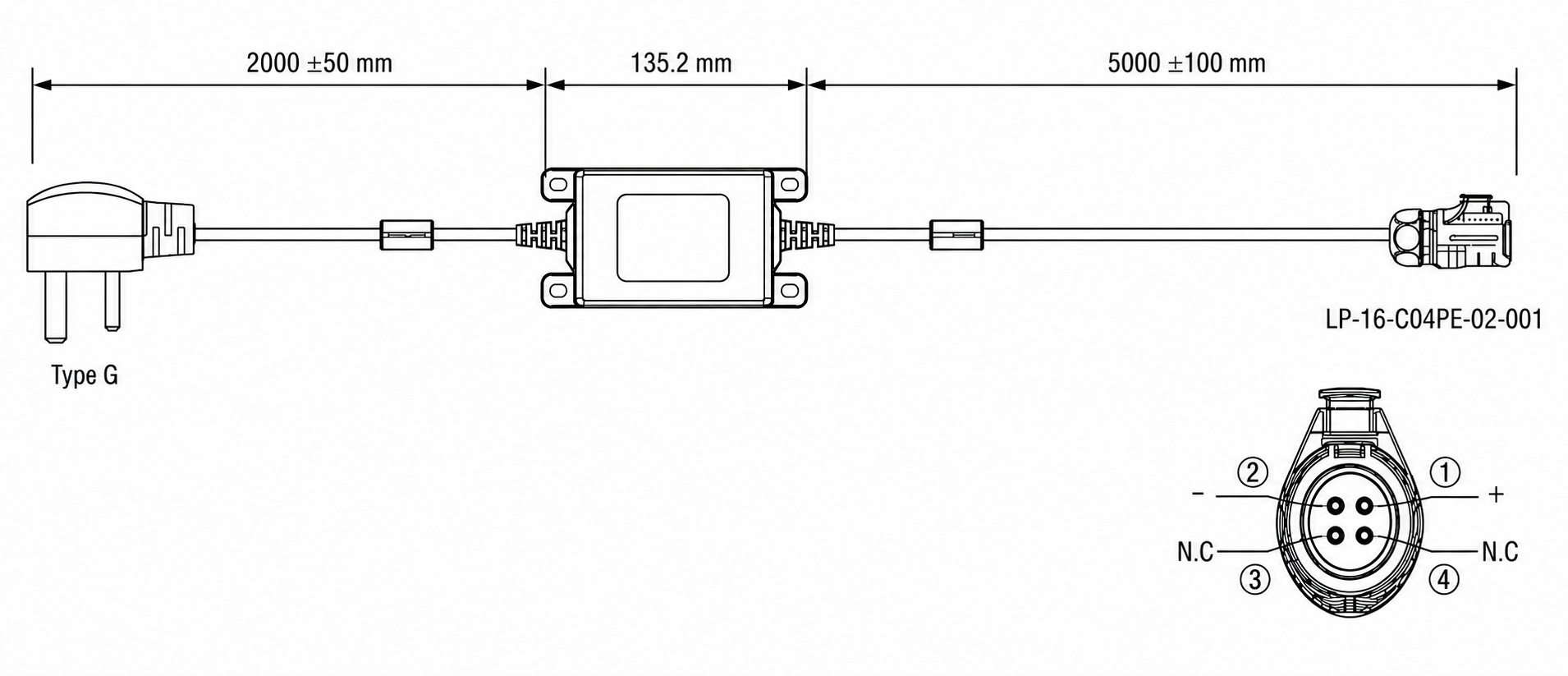

Figure 1: PSU AC Input Power Cable Assembly – Type G| Category | Item | Specification |
|---|---|---|
| AC Input | Plug Type | Type G |
| AC Input | Cable Length | 2000 ±50 mm, from AC plug to PSU |
| DC Output | Cable Length | 5000 ±100 mm, from DC connector to PSU |
| DC Output | Pin 1 | + |
| DC Output | Pin 2 | - |
| DC Output | Pin 3 | N.C / Not Connected |
| DC Output | Pin 4 | N.C / Not Connected |

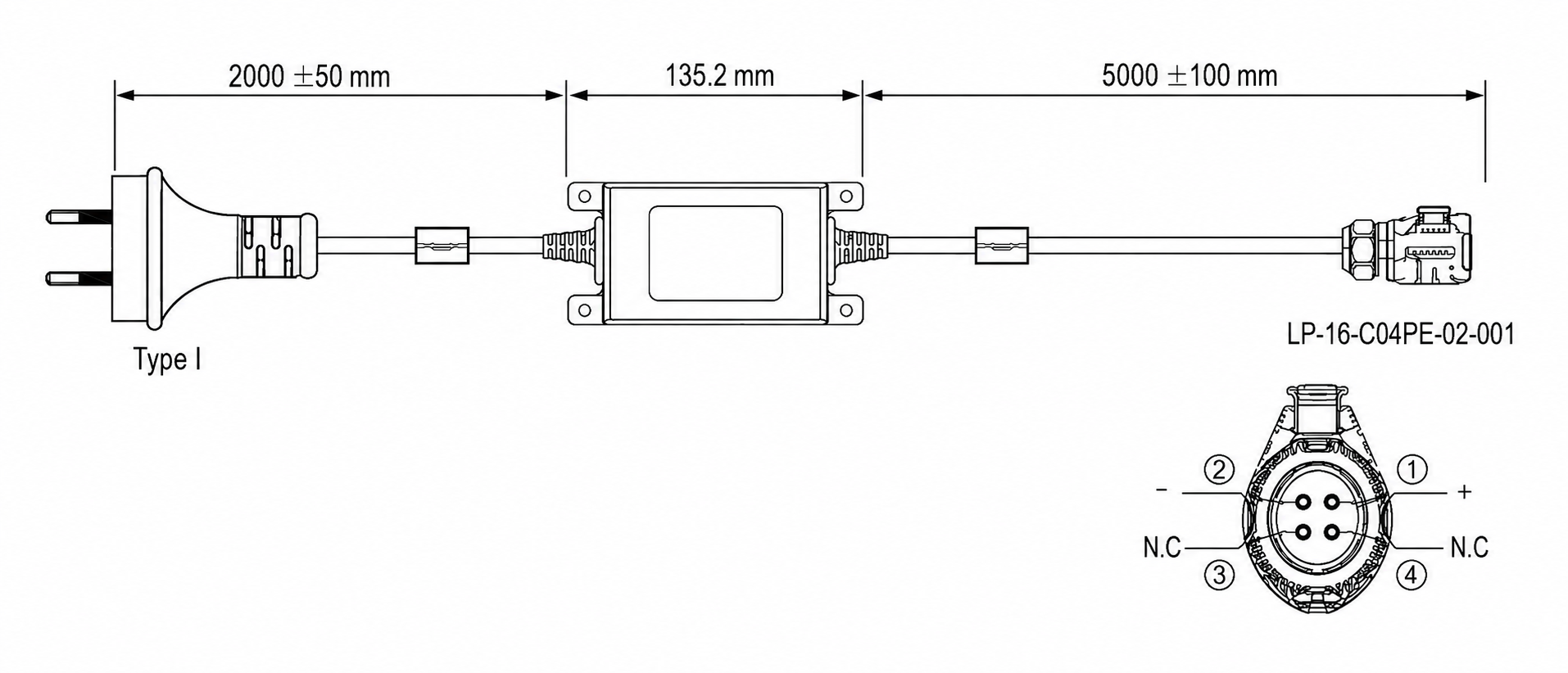

Figure 1: PSU AC Input Power Cable Assembly – Type I| Category | Item | Specification |
|---|---|---|
| AC Input | Plug Type | Type I |
| AC Input | Cable Length | 2000 ±50 mm, from AC plug to PSU |
| DC Output | Cable Length | 5000 ±100 mm, from DC connector to PSU |
| DC Output | Pin 1 | + |
| DC Output | Pin 2 | - |
| DC Output | Pin 3 | N.C / Not Connected |
| DC Output | Pin 4 | N.C / Not Connected |
Electrical Characteristics
Input Characteristics
| Parameter | Value |
|---|---|
| Rated Voltage Range | 100-240 VDC (Applicable to RAK9150-I2, RAK9150-C2, and RAK9150-G3) 100-120 VAC (Applicable to RAK9150-A2) |
| Voltage Range | 85-264 VDC (Applicable to RAK9150-I2, RAK9150-C2, and RAK9150-G3) 85-132 VAC (Applicable to RAK9150-A2) |
| Frequency Range | 50/60 Hz |
| AC Current | 0.8 A / 115 VAC (Applicable to RAK9150-A2) 0.4 A / 230 VAC (Applicable to RAK9150-I2, RAK9150-C2, and RAK9150-G3) |
| Inrush Current | Cold Start 90 A/200 µs at 230 VAC 50 Hz (Applicable to RAK9150-I2, RAK9150-C2, and RAK9150-G3) Cold Start 40 A/200 µs at 115 VAC 50 Hz |
| Leakage Current | <0.25 mA/115 VAC (Applicable to RAK9150-A2) <0.2 5mA/230 VAC (Applicable to RAK9150-I2, RAK9150-C2, and RAK9150-G3) |
| Efficiency | 86.2% |
| No-load Power Consumption | <0.1 W |
Output Characteristics
| Parameter | Value |
|---|---|
| DC Voltage | 12 V |
| Rated Current | 1.5 A |
| Rated Power | 18 W |
| Ripple and Noise(max.) | 120 mVp-p |
| Voltage Tolerance | ±5% |
| Line Regulation | ±3% |
| Load Regulation | ±5% |
| Setup, Rise, Hold up Time | 1.65 s, 10 ms, 24.4 ms / 115 VAC(at full load) 0.85 s, 10m s, 121 ms / 230 VAC(at full load) (Applicable to RAK9150-I2, RAK9150-C2, and RAK9150-G3) |
Mechanical Characteristics

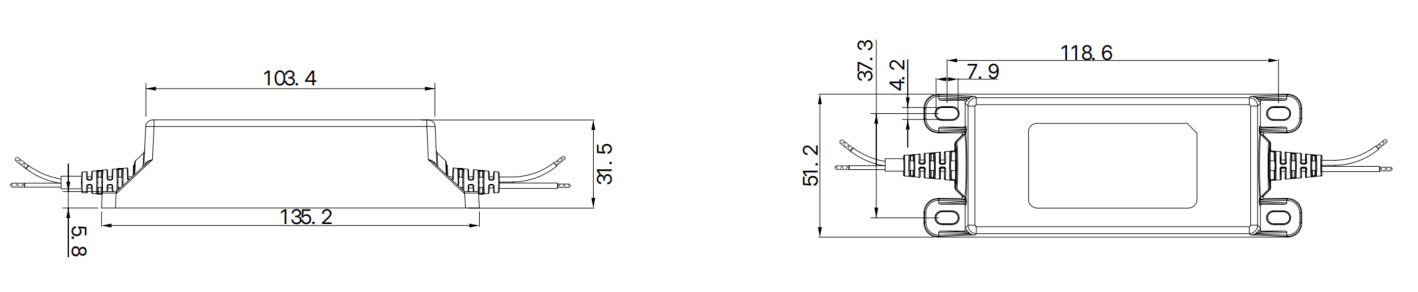

Figure 1: PSU Mechanical| Parameter | Specification |
|---|---|
| Dimension (L x W x H) | 103.4 x 51.2 x 31.5 mm |
| Weight | 365 g/pcs |
| Packaging Information | 185 x 75 x 70 mm Quantity per Package: 100 pcs |
| MTBF | 489.6K hours min. MIL-HDBK-217F, 25 °C |
Overload and Overvoltage Protection
| Parameter | Specification | Description |
|---|---|---|
| Overload Protection | 120-250% | Operates in hiccup mode and recovers automatically after the fault condition is removed. |
| Short Circuit Protection | - | Output voltage shuts down. Re-power the PSU to recover. |
| Overvoltage Protection | 15.6 V @ 115 VAC (Applicable to Type A) 15.6 V @ 230 VAC (Applicable to RAK9150-I2, RAK9150-C2, and RAK9150-G3) | Output voltage shuts down. Re-power the PSU to recover. |
Safety Characteristics
| Parameter | Specification |
|---|---|
| Safety Standards | EN62368-1, BS EN62368-1, IEC62368-1, AS/NZS 62368.1 (Applicable to RAK9150-I2, RAK9150-C2, and RAK9150-G3) IEC/UL 62368-1 (Applicable to RAK9150-A2) |
| Withstand Voltage | I/P-O/P: 3 KVAC / 1 min |
| Isolation Resistance | I/P-O/P: 100 MΩ / 500 VDC / 25 °C / 70% RH |
EMC
EMC Emission
| Parameter | Standard | Test Level |
|---|---|---|
| Conducted | EN55032 / CISPR32 (Applicable to RAK9150-I2, RAK9150-C2, and RAK9150-G3) FCC Part 15 / CISPR22 (Applicable to RAK9150-A2) | Class B |
| Radiated | EN55032 / CISPR32 (Applicable to RAK9150-I2, RAK9150-C2, and RAK9150-G3) FCC Part 15 / CISPR22 (Applicable to RAK9150-A2) | Class B |
| Harmonic Current (Applicable to RAK9150-I2, RAK9150-C2, and RAK9150-G3) | EN61000-3-2 | Class B |
| Voltage Flicker (Applicable to RAK9150-A2) | EN61000-3-3 | Class B |
EMC Immunity
EMC Immunity is applicable to RAK9150-I2, RAK9150-C2, and RAK9150-G3.
| Parameter | Standard | Test Level |
|---|---|---|
| ESD | EN61000-4-2 | Level 3, 8 kV air, criteria A |
| Radiated Susceptibility | EN61000-4-3 | Level 3, criteria A |
| EFT/Burst | EN61000-4-4 | Level 3, criteria A |
| Surge | EN61000-4-5 | Level 4, 2 kV/L-N, criteria A |
| Conducted | EN61000-4-6 | Level 3, criteria A |
| Magnetic Field | EN61000-4-8 | Level 4, criteria A |
| Voltage Dips and Interruptions | EN61000-4-11 | >95% dip 0.5 periods; 30% dip 25 periods >95% interruptions 250 periods |
Environmental Characteristics
| Parameter | Specification |
|---|---|
| Working Temperature | -40 °C to +85 °C |
| Working Humidity | 20-95% RH, non-condensing |
| Storage Temperature / Humidity | -40 °C to +85 °C, 10-95% RH, non-condensing |
| Temperature Coefficient | ±0.03%/°C (0-40 °C) |
| Vibration | 10~500 Hz, 5G, 12 min/cycle, period for 72 min. each along X, Y, Z axes |
NOTE
- Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted-pair wire terminated with a 0.1 µF and 47 µF parallel capacitor.
- Line regulation is measured from low line to high line at rated load.
- Load regulation is measured from 0% to 100% rated load.
- Unless otherwise specified, all parameters are measured at nominal input voltage, rated load, and 25 °C ambient temperature.
- Derating may be required under low input voltage conditions. Refer to the Static Characteristics section for details.
- The power supply is considered a component used in the final equipment. Therefore, EMC performance may be affected by the complete installation, and the final equipment manufacturer must re-qualify EMC compliance for the complete system.
