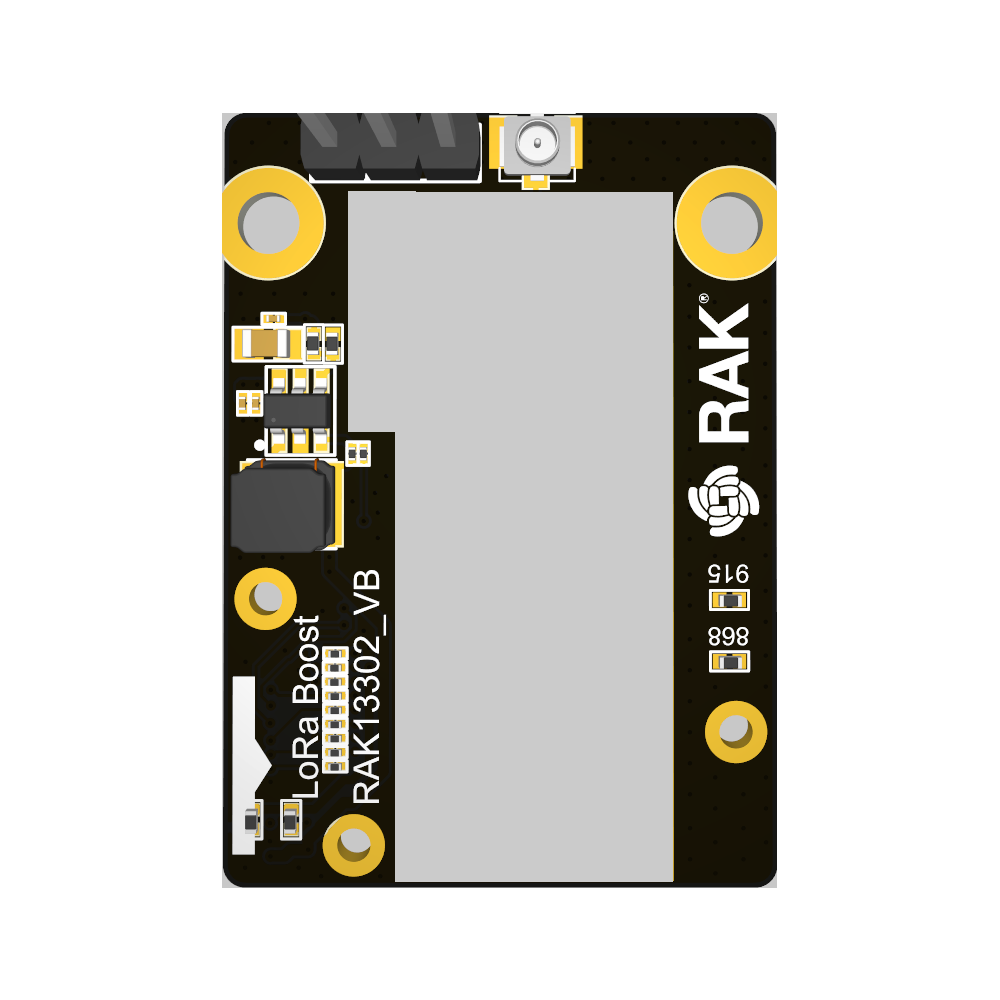

RAK13302 WisBlock LPWAN Wireless Module
Thank you for choosing RAK13302 WisBlock LPWAN Wireless Module in your awesome IoT Project! To help you get started, we have provided you with all the necessary documentation for your product.
- RAK13302 Quick Start Guide
- Datasheet
- WisBlock Quick Start Guide
- WisBlock Source Code Repository
- RAK13302 3D Model
- 40-Pin Male Connector 3D file
- WisBlock Sensor Tutorial
Product Description
The RAK13302 is a LoRa module built around the Semtech SX1262 LoRa transceiver and the SKY66122 signal booster. It offers an easy-to-use, compact, and low-power solution for long-range wireless data applications.
Fully compliant with LoRaWAN standards, the RAK13302 also supports LoRa Point-to-Point (P2P) communication. It seamlessly integrates with LoRaWAN network servers, including The Things Network (TTN), ChirpStack, Actility, and more.
With its 1-watt (30dBm) signal booster, the RAK13302 is well-suited for applications that demand extended communication range.
The module is compatible with the RAK6421 RPi WisBlock HAT and WisBlock Base Boards, when used in conjunction with the RAK3401 or RAK11200 WisBlock Core module.
Product Features
-
Module Specifications
- Based on Semtech SX1262 LoRa chip
- SKY66122 booster chip
- LoRaWAN Specification compatible
- Supports 902-928 MHz
- LoRaWAN Activation by OTAA/ABP
- LoRa Point-to-Point (P2P) communication
- Ultra-Low Power Consumption
- Supply Voltage: 5 V
- Temperature Range: -40° C ~ 85° C
-
Module Size
- 25 mm x 35 mm
Prerequisites
To use a RAK13302, you need at least a WisBlock Base to plug the module in. WisBlock Base is the connection to the MCU for the RAK13302 module. Furthermore, you need a WisBlock Core module to use the sensor.
- Due to the high power RF signal output, the module requires power either through the USB port on the WisBlock Base Board or from an external 5 V supply voltage.
- Use screws to keep the module firmly in place for proper operation.
