WisBlock Unify Outdoor Enclosure 180x130x60 Datasheet

Overview​

Description​

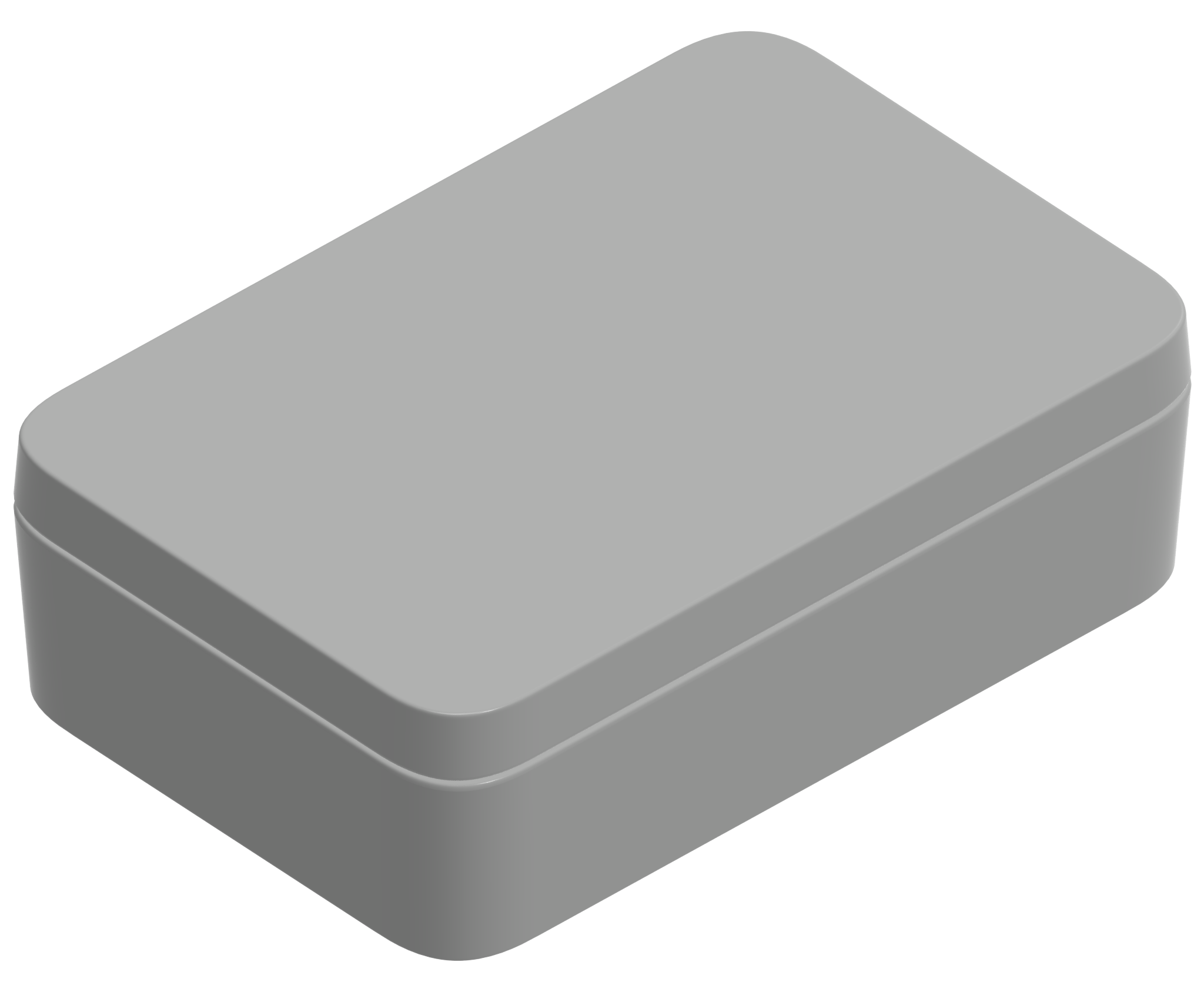

RAKBox-UO180x130x60 is a large-sized WisBlock Unify Enclosure. It is an IP67-rated protection class that allows the unit to be used outdoors while protecting the internal components from dust and water. It is also a weatherproof fire retardant enclosure made from ABS plastic specially designed for outdoors. Its large size makes it applicable to be used on bigger electronic boards and IoT projects. Moreover, it supports different types of mounting options such as pole, wall, DIN rail, belt, and hook.

Features​

  • IP67-rated
  • Dimensions L x W x H: 180 mm x 130 mm x 60 mm
  • Available in two (2) colors: cool gray and white color
  • Supports large Plain Base Plate
  • Support the application of various scenarios via optional mounting accessories
  • Allows customization service without MOQ and supports CNC machining, painting, label printing, etc.

Enclosure Mechanical Dimensions​

Figure 5603: Large WisBlock Unify Enclosure dimensions

Enclosure with Mounting Accessories​

The installation guide for mounting the different types of accessories of the large unify enclosure can be found in the Mounting Guide.

Pole Mount Vertical​

Figure 5604: Vertical pole mount

Figure 3 shows the dimensions of the large unify enclosure with vertical pole mounts attached to it.

Figure 5605: Dimensions of the enclosure with vertical pole mount

Pole Mount Horizontal​

Figure 5606: Horizontal pole mount

Figure 5 shows the dimensions of the large unify enclosure with horizontal pole mounts attached to it.

Figure 5607: Dimensions of the enclosure with horizontal pole mount

Wall Mount​

Figure 5608: Wall mount

Figure 7 shows the dimensions of the large unify enclosure with wall mounts attached to it.

Figure 5609: Dimensions of the enclosure with wall mount

Belt Clip Mount​

Figure 5610: Belt clip mount

Figure 9 shows the dimensions of the large unify enclosure with a belt clip mount attached to it.

Figure 5611: Dimensions of the enclosure with belt clip mount

DIN Mount​

Figure 5612: DIN mount

Figure 11 shows the dimensions of the large unify enclosure with a DIN mount attached to it.

Figure 5613: Dimensions of the enclosure with DIN mount

Magnet Mount​

Figure 5614: Magnet mount

Figure 13 shows the dimensions of the large unify enclosure with a magnet mount attached to it.

Figure 5615: Dimensions of the enclosure with magnet mount

Belt Loop Mount​

Figure 5616: Belt loop mount

Figure 15 shows the dimensions of the large unify enclosure with a belt loop mount attached to it.

Figure 5617: Dimensions of the enclosure with belt loop mount

Label Mount​

Figure 5618: Label mount

Figure 17 shows the dimensions of the large unify enclosure with the label mount attached to it.

Figure 5619: Dimensions of the enclosure with label mount

Hook Loop Mount​

Figure 5620: Hook loop mount

Figure 19 shows the dimensions of the large unify enclosure with the label mount attached to it.

Figure 5621: Dimensions of the enclosure with hook loop mount
