RAK3112 WisDuo LPWAN + BLE + Wi-Fi Module Quick Start Guide

Prerequisites

Before going through the steps of installing the RAK3112 WisDuo LPWAN Module, make sure to prepare the necessary items listed below.

Hardware

• RAK3112 WisDuo LPWAN+BLE+Wi-Fi Module
• Computer
• USB to UART TTL adapter

Software

• Download and install the Arduino IDE.

warning

For Windows 10 users: DO NOT install the Arduino IDE from the Microsoft App Store. Instead, install the original Arduino IDE from the Arduino official website. The Arduino app from the Microsoft App Store has problems using third-party Board Support Packages.

Product Configuration

This section of the guide covers the following:

1. Hardware Setup and Access to IO pins of RAK3112
2. LoRaWAN OTAA and ABP Example with Arduino IDE
3. Wi-Fi Example

Hardware Setup

The RAK3112 requires a few hardware connections to function properly. The bare minimum requirement is to have the power section properly configured, along with the reset pull-up resistor, antennas, USB connection for firmware updates.

Figure 1: RAK3112 schematic

Ensure the antennas are properly connected for a strong LoRa and BLE signal. Note that powering the module without an antenna connected to the IPEX MHF4 connectors can damage the RF section of the chip.

Figure 1: LoRa antenna

Figure 1: Wi-Fi/BLE antenna

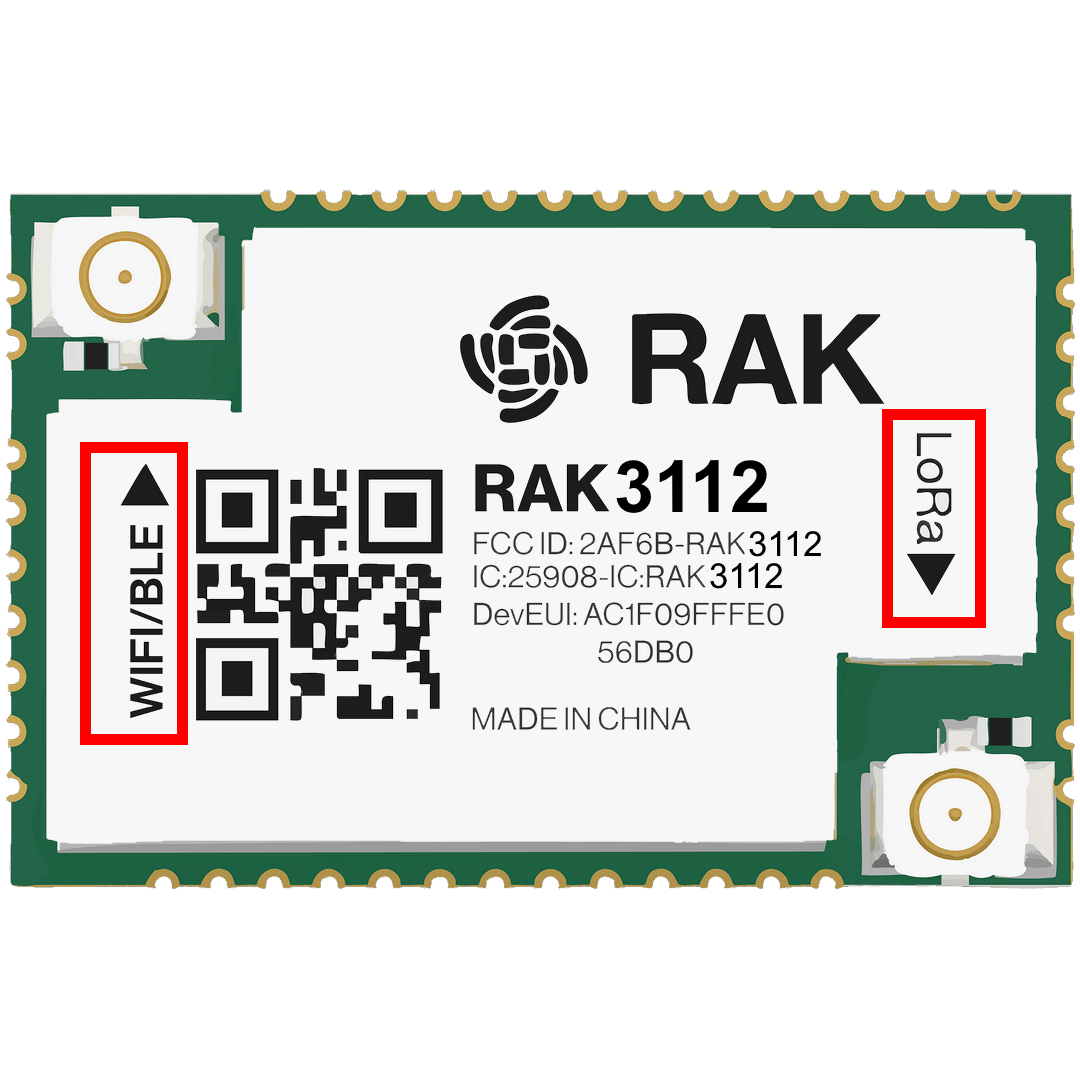

RAK3112 has a label on its sticker indicating where to connect the antennas, as illustrated in Figure 4.

Figure 1: RAK3112 antenna label

NOTE

• Detailed information about the RAK3112 LoRa IPEX MHF4 antenna can be found on the 863-870 MHz antenna datasheet or the 902-928 MHz antenna datasheet.
• If the RAK3112 is not an IPEX MHF4 variant, the connection to the antennas are done via the RF pins. RAKwireless offers RF Antenna Design Service for custom PCB designs.

warning

• Standard IPEX connector will not work on RAK3112. The IPEX antenna connectors of RAK3112 are a different variant called IPEX MHF-4. This is specially designed for low-profile circuit boards with limited spaces.
• When using the LoRa, Wi-Fi or Bluetooth Low Energy transceivers, make sure that the antennas are connected. Using these transceivers without an antenna can damage the module.

Software Setup

The RAK3112 does not come with default firmware. You have to develop your application based on the Arduino IDE, using the Espressif BSP. Examples of how to use LoRa, LoRaWAN, BLE, and WiFi are provided in our Github repo

RAK3112 RUI3 Board Support Package in Arduino IDE

If you don't have an Arduino IDE yet, download it on the Arduino official website.

NOTE

For Windows 10 and up users: If you installed the Arduino IDE from the Microsoft App Store, uninstall it and reinstall the IDE from the Arduino official website. The version from the Microsoft App Store has issues with third-party Board Support Packages.

After successfully installing the Arduino IDE, configure it to add the RAK3112 to its board selection by following these steps:

warning

The Arduino BSP for the ESP32 MCUs, arduino-esp32, does not yet include the RAK3112 board. The request to add it to the official BSP is still pending.

As a temporary solution, a patch can be applied to the arduino-esp32 installation to add support for the RAK3112.

For PlatformIO, it depends on the Arduino BSP to add the RAK3112 to support it. A temporary solution is available and is provided in the prerequisites section.

Patch the BSP (Arduino IDE and PlatformIO)

1. Patch of the BSP in Arduino (temporary)

To use the RAK3112 with the Arduino IDE, a manual patch is required until the RAK3112 is officially supported by the ESP32 BSP. This includes copying a folder into the variants and adding text to the boards file, boards.txt

• Install the arduino-esp32 BSP with Arduino IDE.

• Locate the installation folder of the BSP, which depends on the operating system. For Windows, the location is usually C:\Users\USER_NAME\AppData\Local\Arduino15\packages\esp32

• Download the variant folder WisDuo_RAK3112 from our Github

• Download the file boards-extension.txt from our Github

• Copy the folder WisDuo_RAK3112 into the variants folder of the ESP32 BSP. On Windows, the location is usually C:\Users\USER_NAME\AppData\Local\Arduino15\packages\esp32\hardware\esp32\3.2.0\variants

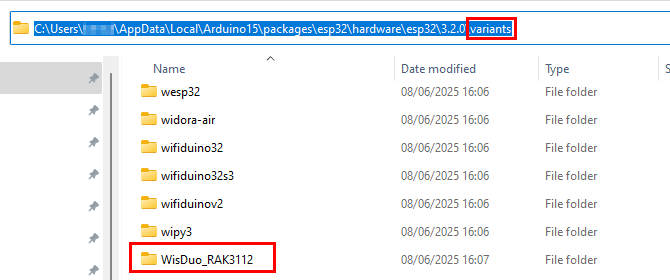

Figure 1: RAK3112 variant in BSP 'variants' folder

• Open the file boards.txt from the ESP32 BSP folder with a text editor. On Windows, the location is usually C:\Users\USER_NAME\AppData\Local\Arduino15\packages\esp32\hardware\esp32\3.2.0

• Copy the content of boards-extension.txt to the end of the boards.txt file.

Restart the Arduino IDE. The WisDuo RAK3112 board will now be available in the board selection menu.

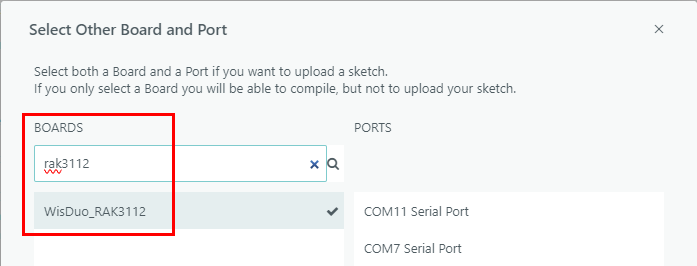

Figure 1: RAK3112 in Arduino IDE Boards Manager

2. Solution to use the RAK3112 with the ESP32 platform in PlatformIO (temporary)

To use the RAK3112 with PlatformIO and the ESP32 platform, a custom project structure is required. This includes an additional folder in the project folder and some extra entries in the platformio.ini file of the project.

• Copy the folder rakwireless from our Github repo

• Copy this folder into your project folder.

Your project folder should look like this:

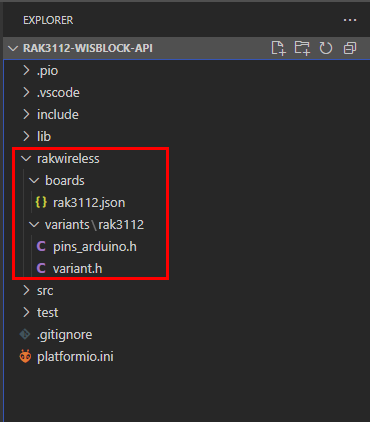

Figure 1: RAK3112 Board definition in PlatformIO project folder

• Add the following entries to the platformio.ini file of your project:

[platformio]
default_envs = rak3112
description = RAK3112
boards_dir = rakwireless/boards

[env:rak3112]
framework = arduino
platform = platformio/espressif32
board = rak3112

build_flags = -I rakwireless/variants/rak3112

boards_dir = rakwireless/boards tells PlatformIO where to find additional boards for the ESP32 platform.

board = rak3112 tells PlatformIO to use the custom board rak3112 from the additional boards folder.

build_flags = -I rakwireless/variants/rak3112 tells PlatformIO where to find pins_arduino.h and variant.h files for the board RAK3112.

Keep these entries in the platformio.ini file and add your other definitions, e.g. lib_deps or additional build_flags.

Compile an Example with Arduino

After adding the RAK3112 to the Arduino IDE, test your setup by running a simple program.

1. Copy the example code below and paste it into the Arduino IDE.

Click to view the example code.

void setup() {
  Serial.begin(115200);
}

void loop() {
  Serial.println("Hello");
  delay(5000);
}

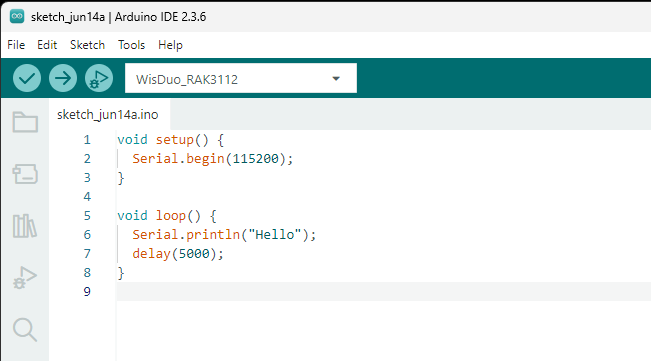

Figure 1: Example code

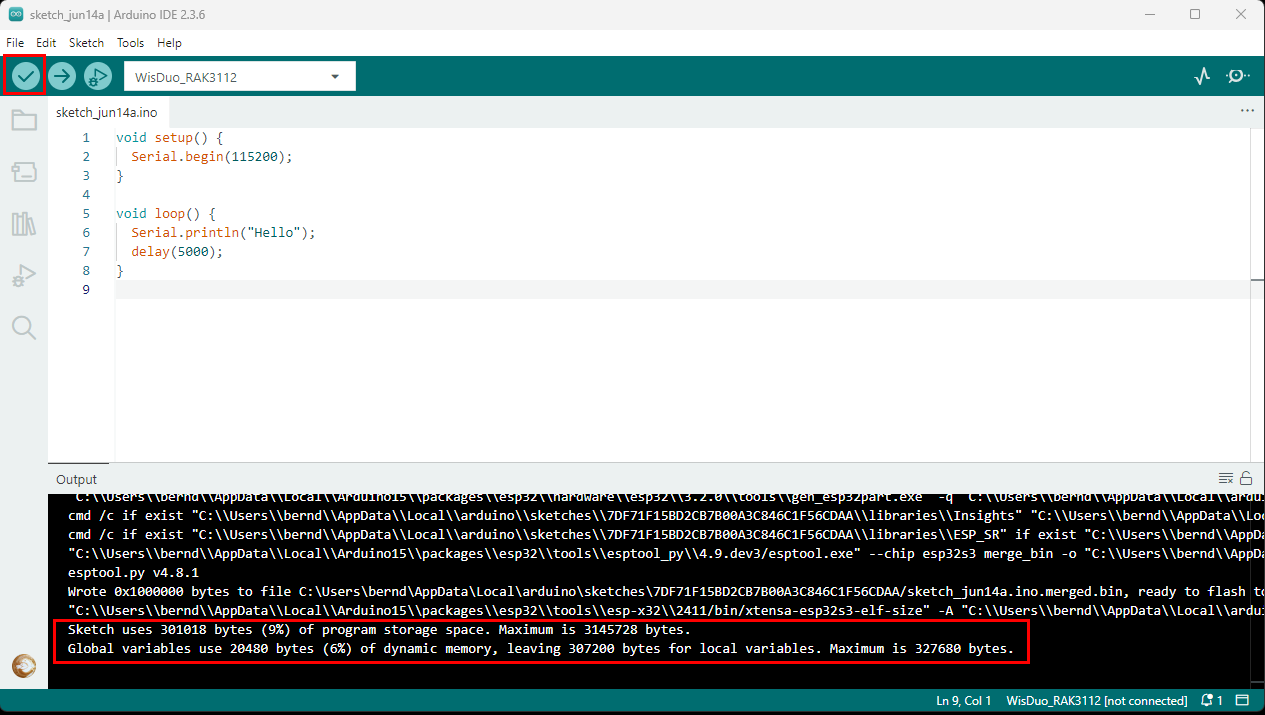

8. Click the Verify button to compile and check for errors.

Figure 1: Verify the example code

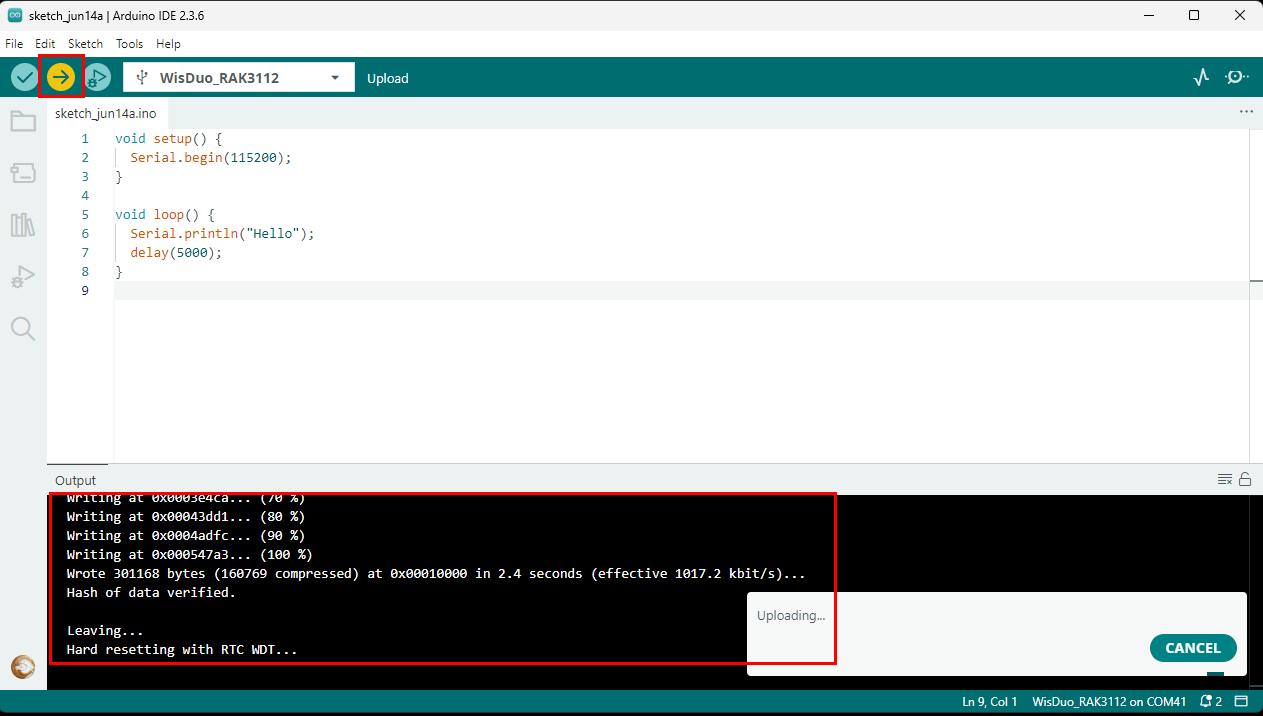

9. When the compilation is complete, click the Upload button to flash the firmware to the RAK3112.

Figure 1: Upload the example code

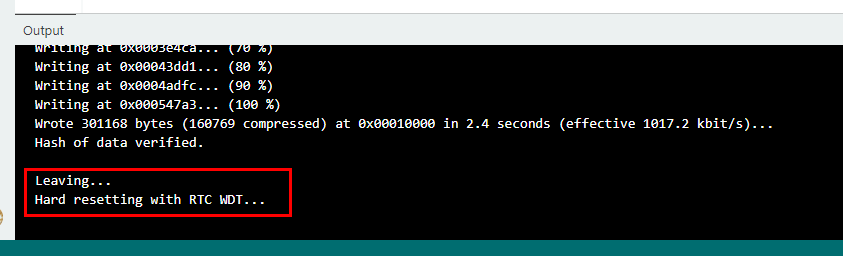

10. Upon successful upload, the Device programmed message will appear.

Figure 1: Device Programmed

11. After the Device Programmed is completed, you will see the "Hello" message every 5 seconds in the console.

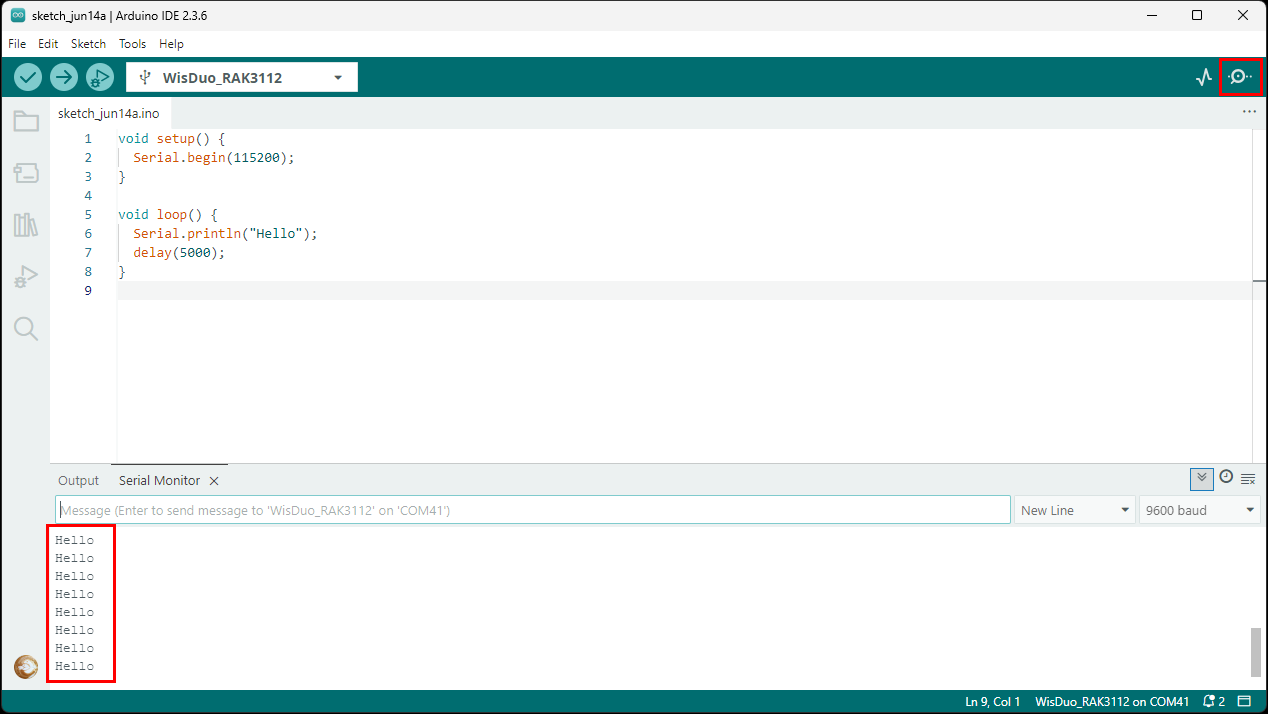

Figure 1: Application log output

RAK3112 IO Pins and Peripherals

This section discusses how to use and access the pinouts of the RAK3112 using Arduino APIs. It shows basic code for using digital IO, analog input, UART, and I2C.

RAK3112 Digital IO Pins

Available Digital IO Pins in RAK3112

Pin No.	Name	Type	Description
11	GPIO38	I/O	GPIO
12	GPIO39	I/O	GPIO
18	GPIO41	I/O	GPIO
19	GPIO42	I/O	GPIO
23	GPIO45	I/O	GPIO
24	GPIO0 / Boot	I/O Boot	GPIO Bootloader force
25	GPIO46	I/O	GPIO
26	GPIO1	I/O	GPIO
27	GPIO2	I/O	GPIO

Any of the pins listed in the table above can be used. Pins with specific functions, such as UART and I2C, are also usable but with limitations. Those dedicated pins have been excluded from this illustration of digital IO pins.

Click to view the example code.

/*
 RAK3112 Digital I/O Example

 You can use any of the following as Digital I/O:

ST_PA8    PA8
ST_PA9    PA9
ST_PB2    PB2
ST_PA10   PA10
ST_PB12   PB12
ST_PB3    PB3
ST_PB4    PB4
ST_PB5    PB5
ST_PA1    PA1
ST_PA15   PA15
*/

void setup()
{
  pinMode(PA8, OUTPUT); //Change the PA8 to any digital pin you want. Also, you can set this to INPUT or OUTPUT
}

void loop()
{
  digitalWrite(PA8,HIGH); //Change the PA8 to any digital pin you want. Also, you can set this to HIGH or LOW state.
  delay(1000); // delay for 1 second
  digitalWrite(PA8,LOW); //Change the PA8 to any digital pin you want. Also, you can set this to HIGH or LOW state.
  delay(1000); // delay for 1 second
}

RAK3112 Analog Input Pins

Available Analog input Pins in RAK3112

Pin No.	Name	Type	Description
34	GPIO14 / AIN1	I/O Analog In	GPIO / Analog In
41	GPIO21 / AIN0	I/O Analog In	GPIO / Analog In

Any of the pins shown in the table above can be used as an Analog Input Pin. See the example code below.

Click to view the example code.

/*
RAK3112 Analog Input Pins

*/

#define analogPin 21  // Use GPIO21

int val = 0;  // variable to store the value read

void setup()
{
  Serial.begin(115200);
}

void loop()
{
  val = analogRead(analogPin);  // read the input pin
  Serial.println(val);          // debug value
}

RAK3112 Serial Interface Peripherals

• UART

There is one UART peripheral and one USB peripheral available on the RAK3112.

Pin No.	Name	Type	Description
2	USB_D-	USB	USB -
3	USB_D+	USB	USB +
6	GPIO44 / UART0_RX	I/O UART	GPIO / UART RX
7	GPIO43 / UART1_TX	I/O UART	GPIO / UART TX

Click to view the example code.

void setup()
{
  Serial.begin(115200);                   // By default Serial is using the USB port.
  Serial0.begin(115200);                  // Serial0 is assigned to the UART0 RX/TX pins
}

void loop()
{
  Serial.println("RAK3112 USB TEST!");
  Serial0.println("RAK3112 UART TEST!");
  delay(1000); // delay for 1 second
}

• I2C

The RAK3112 has two I2C ports

Pin No.	Name	Type	Description
13	GPIO40 / I2C1_SCL	I/O I2C	GPIO / I2C SCL
28	GPIO9 / I2C1_SDA	I/O I2C	GPIO / I2C SDA
39	GPIO18 / I2C2_SCL	I/O I2C	GPIO / I2C SCL
40	GPIO17 / I2C2_SDA	I/O I2C	GPIO / I2C SDA

Make sure you have an I2C device connected to the specified I2C pins to run the example code below.

Click to view the example code.

#include <Wire.h>

void setup()
{
  Wire.begin();             // Wire is using the I2C2 port on GPIO18 and GPIO17

  Serial.begin(115200);
  while (!Serial);
  Serial.println("\nI2C Scanner");
}

void loop()
{
  byte error, address;
  int nDevices;

  Serial.println("Scanning...");

  nDevices = 0;
  for(address = 1; address < 127; address++ )
  {
    // The i2c_scanner uses the return value of
    // the Write.endTransmisstion to see if
    // a device did acknowledge to the address.
    Wire.beginTransmission(address);
    error = Wire.endTransmission();

    if (error == 0)
    {
      Serial.print("I2C device found at address 0x");
      if (address<16)
        Serial.print("0");
      Serial.print(address,HEX);
      Serial.println("  !");

      nDevices++;
    }
    else if (error==4)
    {
      Serial.print("Unknown error at address 0x");
      if (address<16)
        Serial.print("0");
      Serial.println(address,HEX);
    }
  }
  if (nDevices == 0)
    Serial.println("No I2C devices found\n");
  else
    Serial.println("done\n");

  delay(5000);           // wait 5 seconds for next scan
}

• SPI

The RAK3112 has two SPI ports. But only one SPI port is available for peripherals and exposed. The second SPI port is used internally for the connection to the LoRa transceiver.

Pin No.	Name	Type	Description
30	GPIO10 / SPI_MISO	I/O SPI	GPIO / SPI MISO
31	GPIO11 / SPI_MOSI	I/O SPI	GPIO / SPI MOSI
32	GPIO12 / SPI_CS	I/O SPI	GPIO / SPI CS
33	GPIO13 / SPI_SCK	I/O SPI	GPIO / SPI SCK

LoRaWAN Example

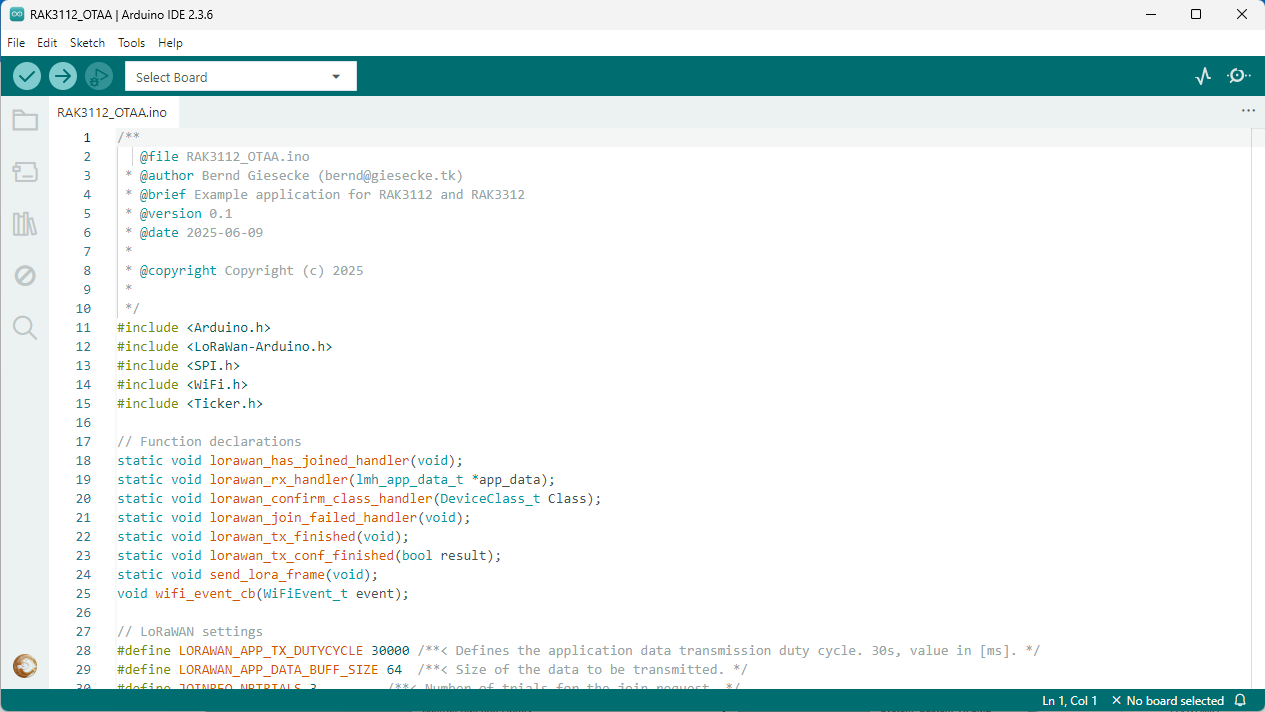

This example illustrates how to program the RAK3112 as a stand-alone LoRaWAN end device via Arduino APIs and the SX126x-Arduino library. To use the RAK3112 as a LoRaWAN end device, it must be within reach of a working LoRaWAN gateway registered to a LoRaWAN network server (LNS) or with a built-in network server.

NOTE

If you are new to LoRaWAN, here are a few good references about LoRaWAN and gateways:

• LoRaWAN® 101: All You Need To Know
• What is a LoRaWAN Gateway?
• How Do Gateways for LoRaWAN® Work?
• Things to Consider When Picking a LoRaWAN® Gateway

To enable the RAK3112 module as a LoRaWAN end-device, a device must first be registered with the LoRaWAN network server. This guide covers both TTN and ChirpStack LoRaWAN network servers and the associated Arduino codes and AT commands for the RAK3112.

• TheThingsNetwork Guide: How to login, register new accounts, and create new applications on TTN.
• RAK3112 TTN OTAA Guide: How to add OTAA device on TTN and what AT commands to use on RAK3112 OTAA activation.
• ChirpStack Guide: How to create new applications on ChirpStack.
• RAK3112 ChirpStack OTAA Guide: How to add OTAA device to ChirpStack and what AT commands to use on RAK3112 OTAA activation.

Connect with The Things Network (TTN)

This section shows how to connect the RAK3112 module to the TTN platform.

NOTE

A working gateway connected to TTN is required, or the device must be within the coverage of a TTN community network.

Figure 1: The Things Stack

As shown in Figure 22, The Things Stack (TTN V3) is an open-source LoRaWAN network server suitable for global, geo-distributed public and private deployments as well as for small local networks. The architecture follows the LoRaWAN Network Reference Model for standards compliance and interoperability. This project is actively maintained by The Things Industries.

LoRaWAN is a protocol for low-power wide-area networks. It allows large-scale Internet of Things deployments where low-powered devices efficiently communicate with internet-connected applications over long-range wireless connections.

The RAK3112 WisDuo module can be part of this ecosystem as a device, and the objective of this section is to demonstrate how simple it is to send data to The Things Stack using the LoRaWAN protocol. To achieve this, the RAK3112 WisDuo module must be located within the coverage of a LoRaWAN gateway connected to The Things Stack server.

1. Sign up for a TTN account.

a. Go to The Things Network and click on Sign up.

Figure 1: Sign up an account in TTN

b. Select a community type by clicking Get started.

Figure 1: TTN community type

c. Sign up through The Things ID by clicking Sign up for free.

Figure 1: Sign up through The Things ID

d. Enter your details, agree to the Terms and Conditions, and click Sign up to The Things ID.

Figure 1: Enter account details

e. Then, select a cluster as shown in Figure 27.

Figure 1: Select a cluster in TTN

Use the same login credentials on the TTN V2 if you have one. If you have no account yet, create one.

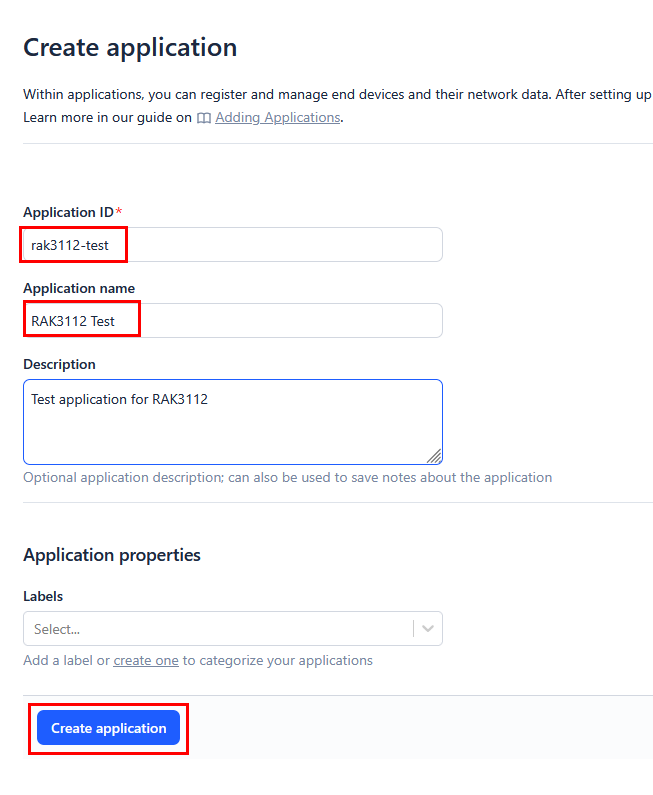

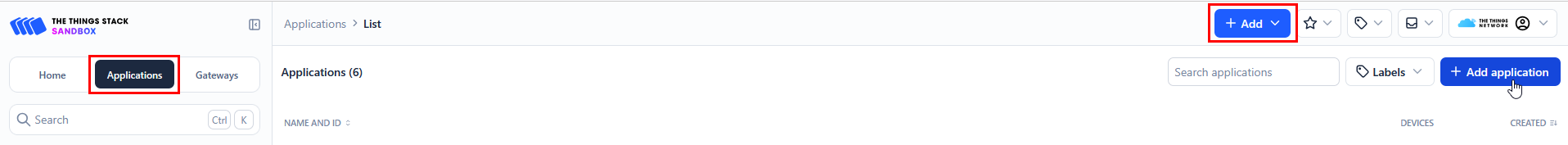

2. Once logged in to the platform, create an application by clicking Create an application.

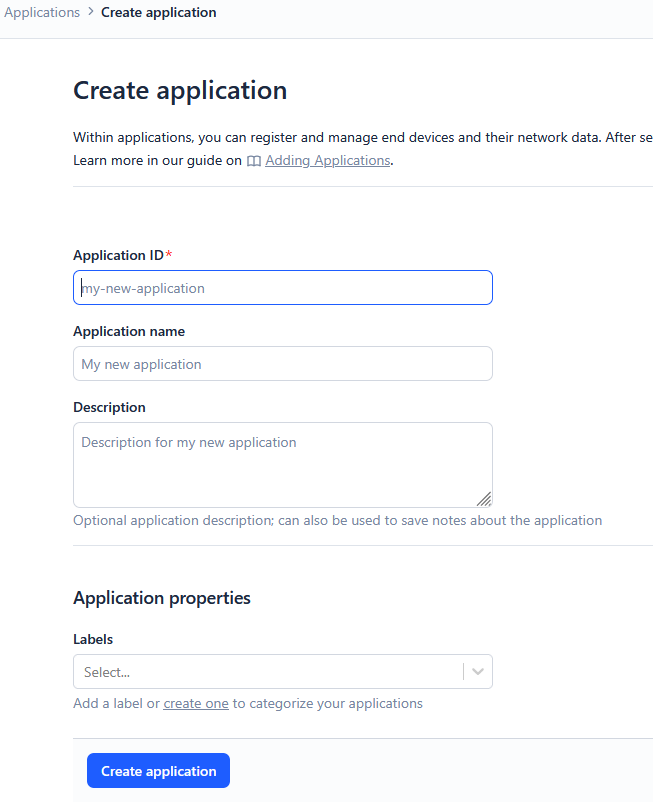

Figure 1: Create a TTN application for your LoRaWAN devices

3. Navigate to the Applications tab.

Figure 1: Details of the TTN application

4. Fill in the necessary information about your application, then click Create application.

Figure 1: TTN application

If you had no errors in the previous step, the application console page should now be visible. The next step is to add end-devices to your TTN application.

LoRaWAN specifications enforce that each end-device has to be personalized and activated. There are two options for registering devices, depending on the activation mode selected. Activation can be done either via Over-The-Air-Activation (OTAA) or Activation-By-Personalization (ABP).

TTN OTAA Device Registration

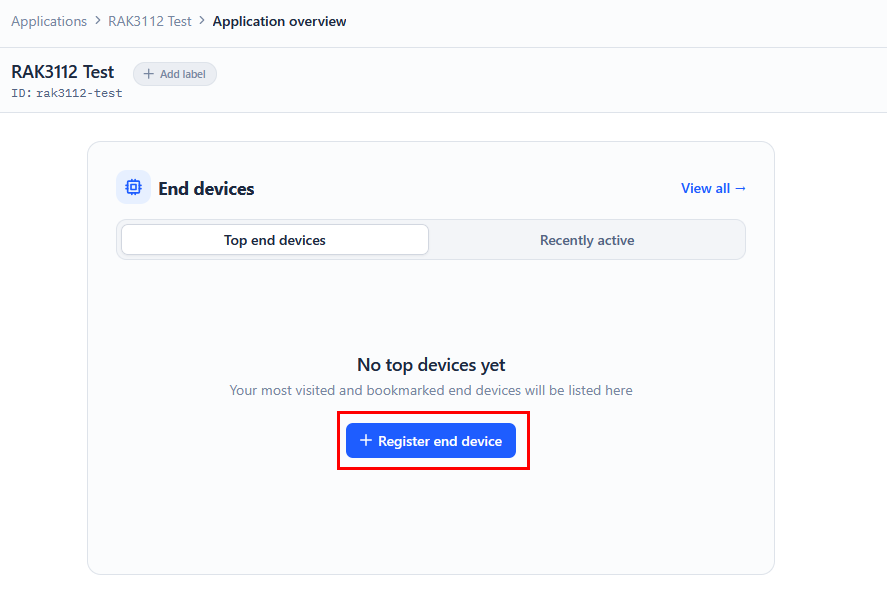

1. Go to your application console to register a device. To start adding an OTAA end-device, click +Register end device, as shown in Figure 31.

Figure 1: Register OTAA end-device

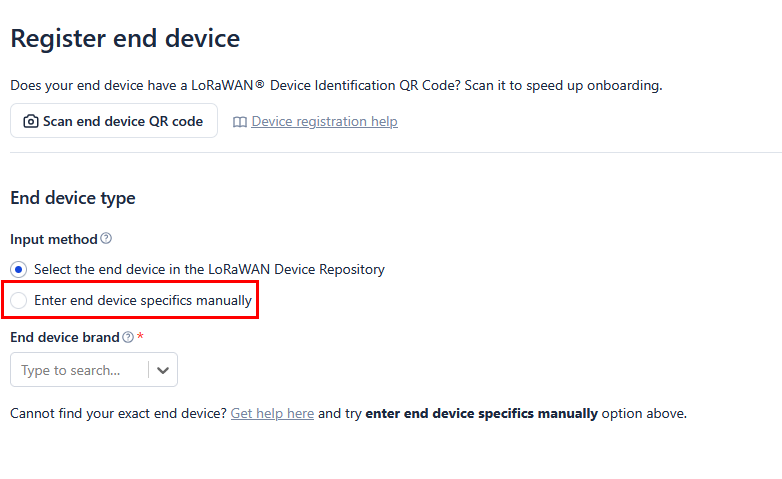

2. Register the board by selecting Enter end device specifics manually.

Figure 1: Enter OTAA end-device specifics manually

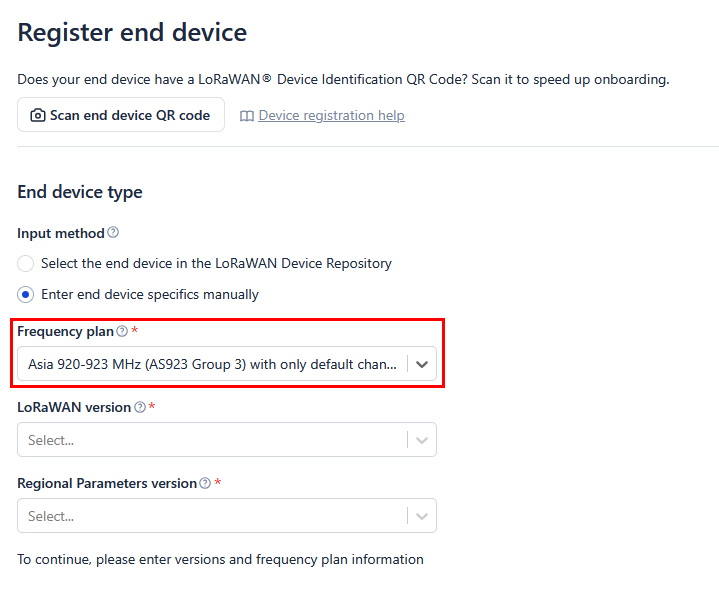

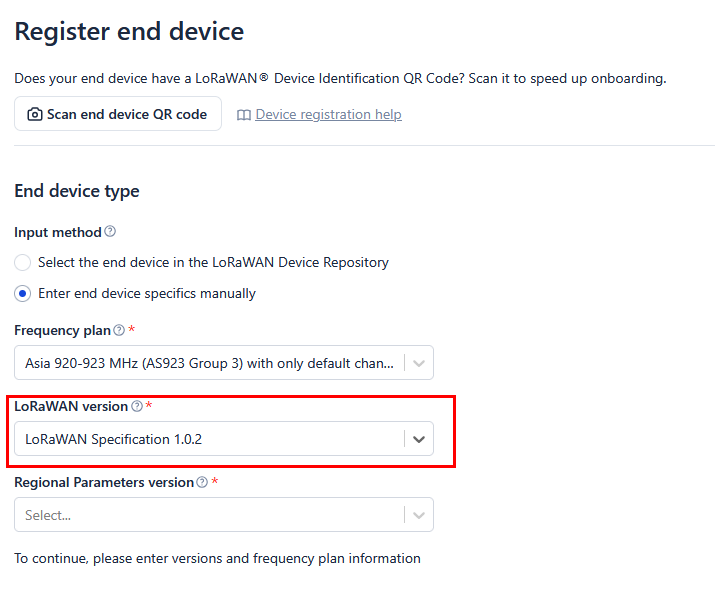

3. Configure the Frequency plan, compatible LoRaWAN version, and supported Regional Parameters version.

Figure 1: OTAA Frequency plan setup

Figure 1: OTAA LoRaWAN version setup

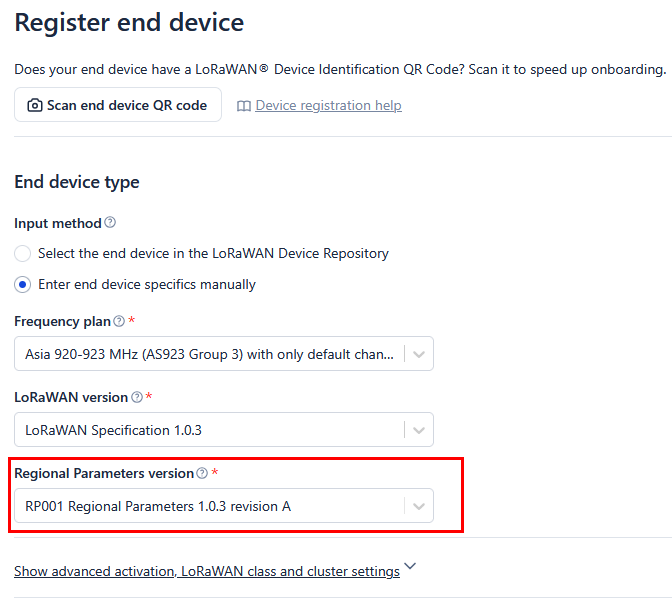

Figure 1: OTAA LoRaWAN Regional Parameters version setup

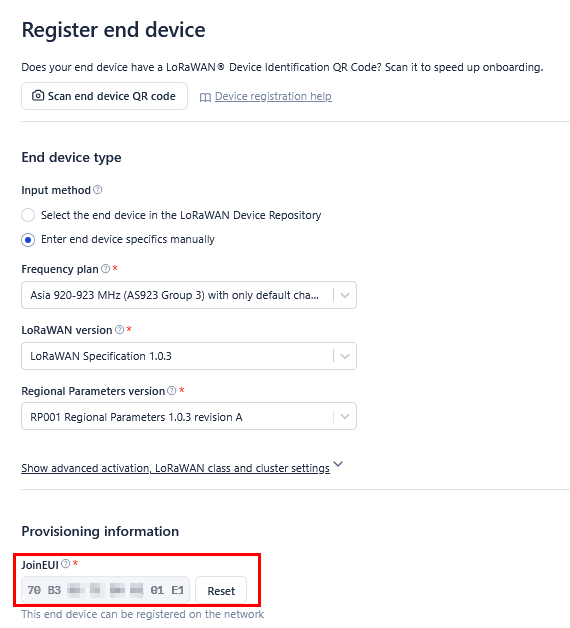

4. Set the JoinEUI.

Figure 1: OTAA JoinEUI setup

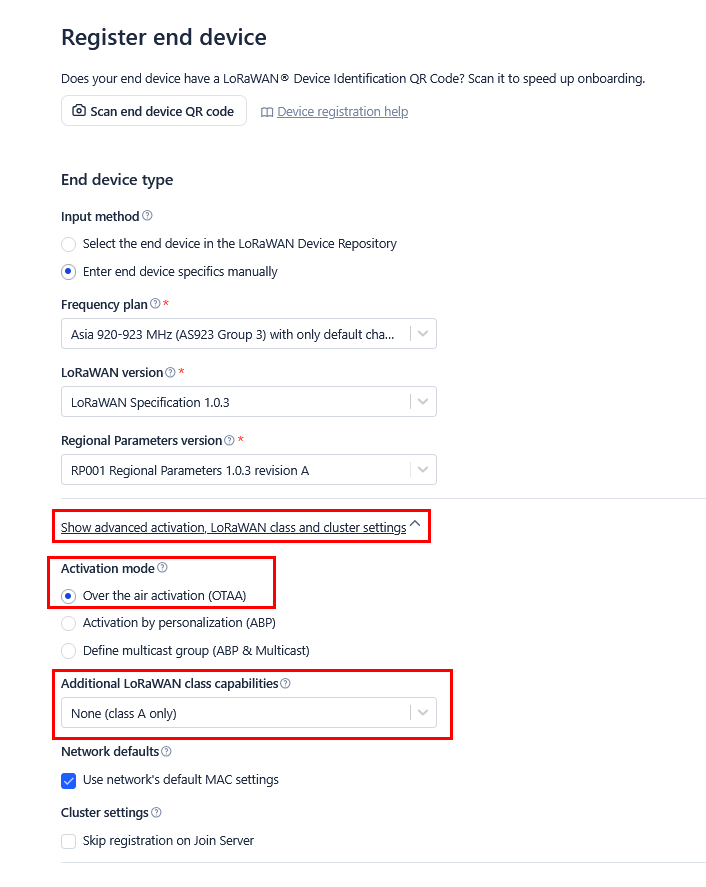

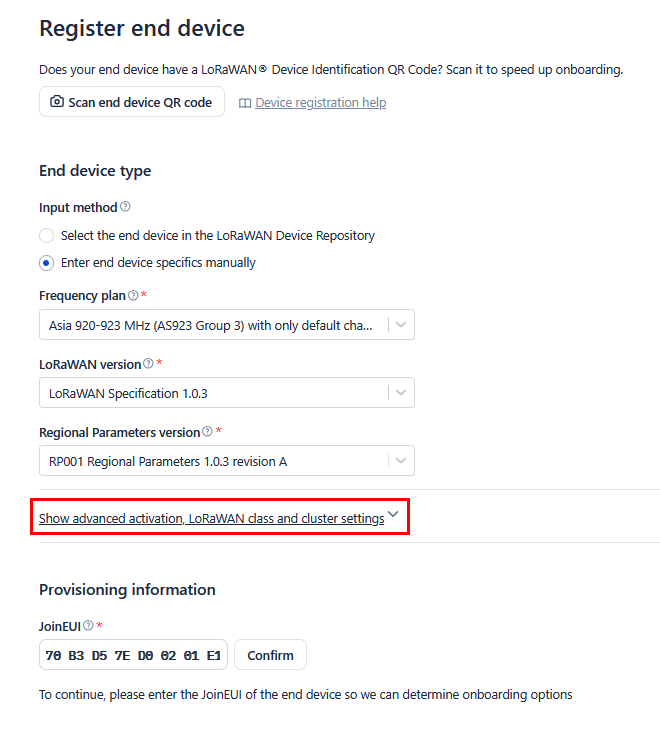

5. Click Show advanced activation, LoRaWAN class and cluster settings.

Figure 1: OTAA Show advanced activation

6. Configure the following, then click Confirm.

• Activation mode: Over the air activation (OTAA)
• Additional LoRaWAN class capabilities: None (class A only)

Figure 1: OTAA LoRaWAN class and cluster settings

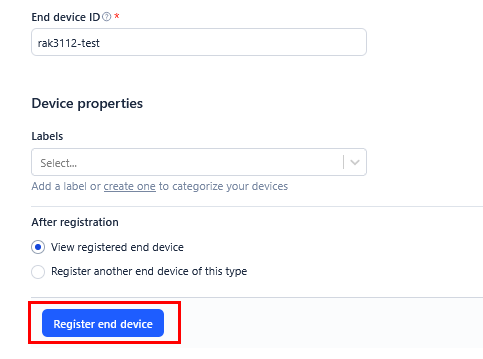

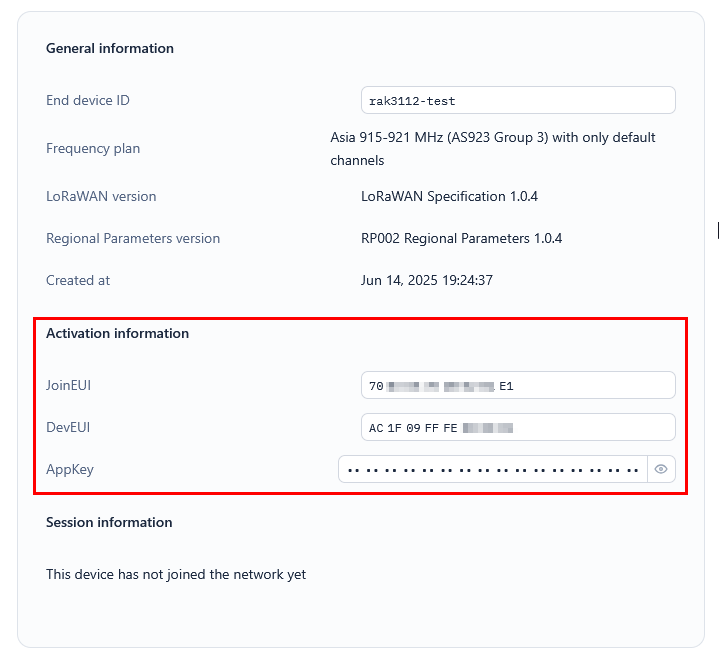

7. Once completed, push the Confirm button, then enter the device's JoinEUI credential in the JoinEUI field.

NOTE

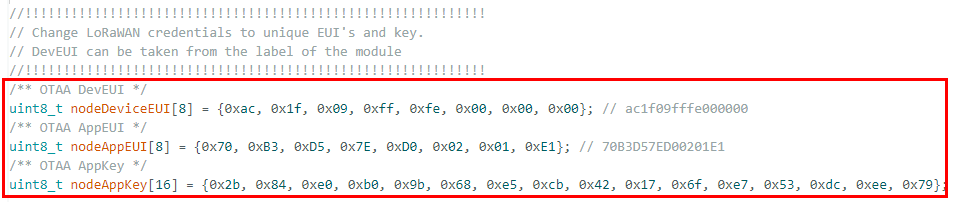

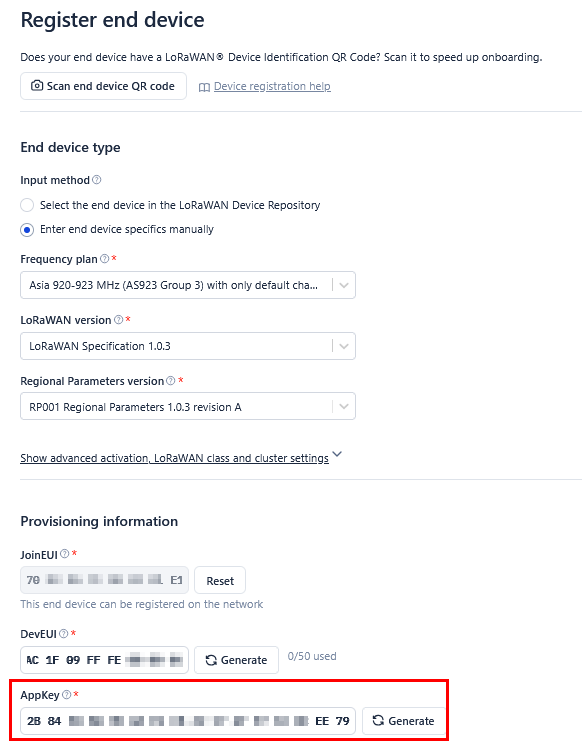

• The AppEUI (Join EUI), DevEUI, and AppKey are hidden in this section as these are unique to a specific device. The DevEUI is specific to every RAK3112 device, while the AppEUI and AppKey should be generated individually for each device and application.
• The AppEUI is the same as JoinEUI.

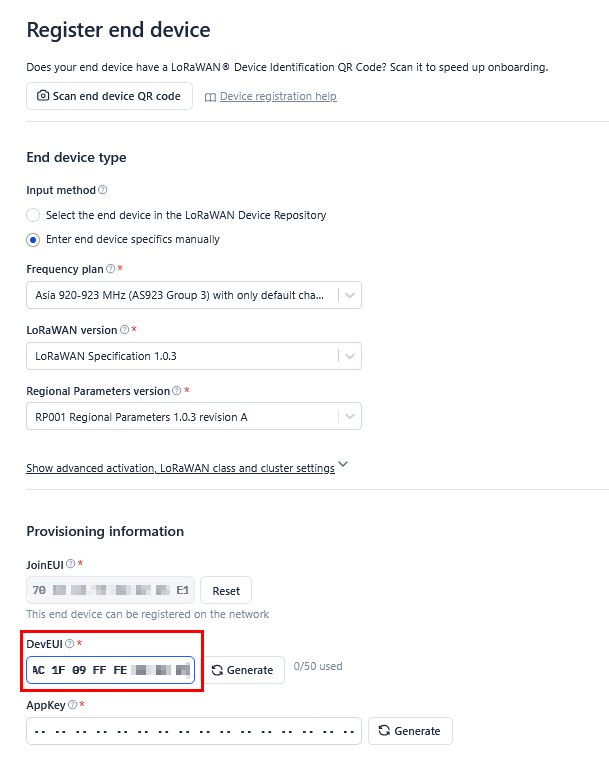

Figure 1: OTAA DevEUI credential

8. Click Generate under AppKey, as shown in Figure 39.

Figure 1: OTAA AppKey credential

9. Once done, click Register end device to complete the process.

Figure 1: Click Register end device

After completing the device registration, the device should appear on the TTN console, as shown in Figure 41.

NOTE

• The AppEUI (Join EUI), DevEUI, and AppKey are the parameters required to activate your LoRaWAN end-device via OTAA.
• The three OTAA parameters on the TTN device console are MSB by default.
• These parameters are always accessible on the device console page, as shown in Figure 41.

Figure 1: OTAA end-device successfully registered to TTN

Upload OTAA LoRaWAN Example to RAK3112

After successfully registering the RAK3112 device to the LoRaWAN Network Server, proceed with running the RAK3112_OTAA demo application example.

1. Get the example code from RAK3112_OTAA. Copy the code into the Arduino IDE sketch.

Figure 1: OTAA LoRaWAN application example

2. In the example code, modify the device EUI (DevEUI) and application key (AppKey).

• The DevEUI must match the one registered on your network server. This is the same DevEUI in the RAK3112 sticker if this is the one you used in Step 7 of the TTN OTAA Device Registration section. DevEUI is MSB.

// OTAA Device EUI MSB
uint8_t nodeDeviceEUI[8] = {0xac,0x1f,0x09,0xff,0xfe,0x00,0x00,0x00};

• The AppEUI (Join EUI) must match the one registered on your network server as well.

// OTAA Application Key MSB
uint8_t nodeAppEUI[8] = {0x70,0xB3,0xD5,0x7E,0xD0,0x02,0x01,0xE1};

• Another important parameter to update is the AppKey, which must match the one configured on your network server in Step 8 of the TTN OTAA Device Registration. AppKey is an MSB.

// OTAA Application Key MSB
uint8_t nodeAppKey[16] = {0x2b,0x84,0xe0,0xb0,0x9b,0x68,0xe5,0xcb,0x42,0x17,0x6f,0xe7,0x53,0xdc,0xee,0x79};

Figure 1: Update the OTAA, DevEUI, and AppKey

3. This guide uses the AS923-3 regional band, so no changes are needed in the example code. For a different region, update the band in the code accordingly.

NOTE

RAK3112 supports the following regions (based on definition in SX126x-Arduino library):

• LORAMAC_REGION_EU433 = 4
• LORAMAC_REGION_CN470 = 2
• LORAMAC_REGION_RU864 = 12
• LORAMAC_REGION_IN865 = 7
• LORAMAC_REGION_EU868 = 5
• LORAMAC_REGION_US915 = 8
• LORAMAC_REGION_AU915 = 1
• LORAMAC_REGION_KR920 = 6
• LORAMAC_REGION_AS923 = 0
• LORAMAC_REGION_AS923_2 = 9
• LORAMAC_REGION_AS923_3 = 10
• LORAMAC_REGION_AS923_4 = 11

Additionally, for US915, configuring the channel mask is necessary, with channels 8 to 15 being the most commonly used in this band.

The LoRaWAN region is set in the lmh_init() call:

lmh_init(&lora_callbacks, lora_param_init, true, CLASS_A, LORAMAC_REGION_AS923_3);

4. The last step is to upload the code by clicking the Upload icon. Take note that you should select the right board and port.

Figure 1: Upload the OTAA example code

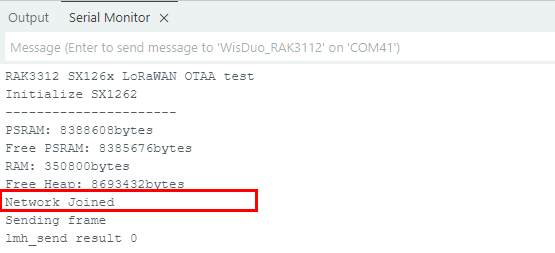

The terminal logs should now be visible in the Serial Monitor of the Arduino IDE. If the COM port disconnects, the terminal output may not appear immediately. Reconnecting the module or pressing the reset button can help restore the output.

Figure 1: Terminal logs

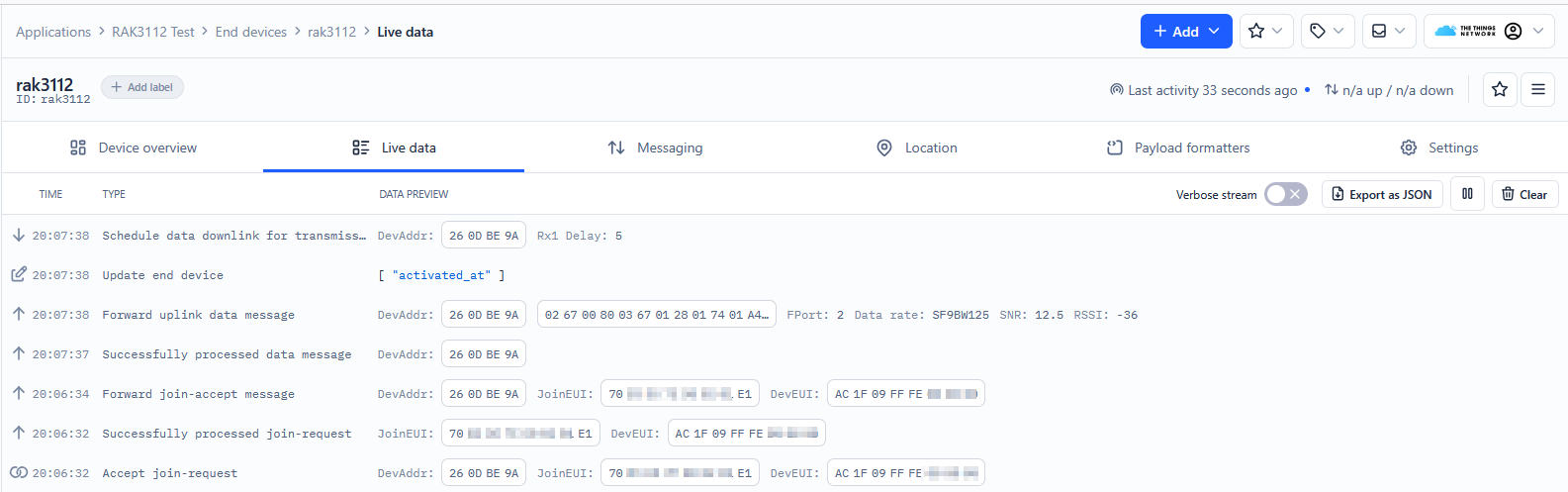

5. Check the Live data section on the LoRaWAN network server to see if the device has successfully joined with the join request and join accept logs.

Figure 1: OTAA live data on TTN

Arduino Installation

Refer to Software section.
