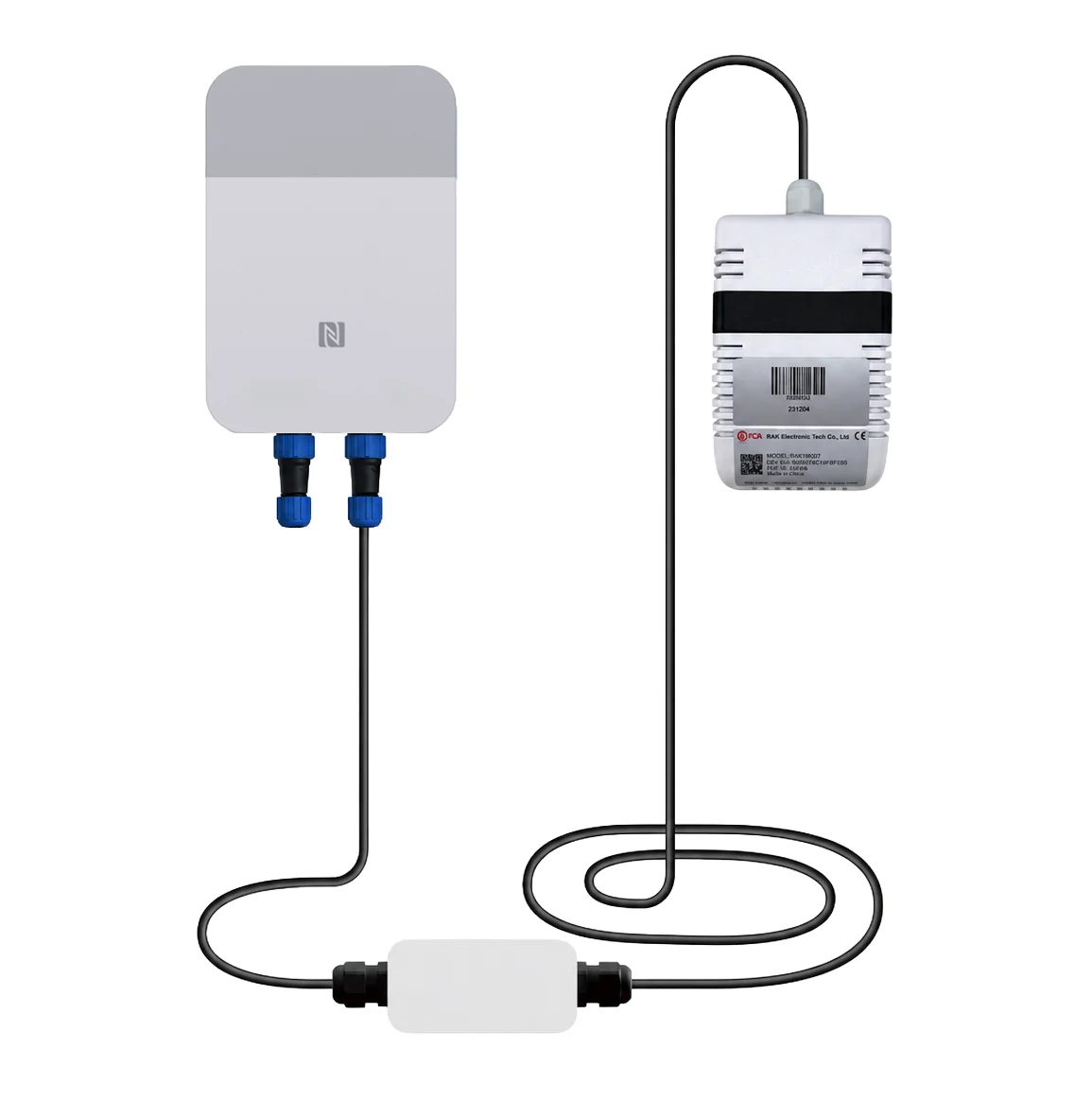

CO2 Concentration Solution

Thank you for choosing the CO2 Concentration Monitoring Solution in your awesome IoT project! 🎉 To help you get started, we have provided you with all the necessary documentation for your product.

Solution Description

The Sensor Hub CO2 Concentration Monitoring solution comprises the RK300-03, and the Sensor Hub. This solution incorporates advanced infrared absorption gas detection technology and it is widely used in various fields and locations requiring CO2 concentration detection, such as air quality monitoring, greenhouses, smart homes, schools, and industrial production.

With the plug-and-play feature of the Sensor Hub, the CO2 Concentration Monitoring solution comes with pre-installed components ready for easy installation and connection. The sensor provides highly accurate CO2 Concentration readings, with the Sensor Hub collecting and transmitting the data via LoRaWAN or NB-IoT/CAT M1.

The Sensor Hub’s connectivity function allows for versatile data transmission to the cloud using the two most commonly used communication protocols in IoT. This versatility ensures that data is readily available for storage, visualization, and in-depth analysis, enabling informed decision-making based on comprehensive knowledge of CO2 levels.

Solution Features

  • Supports LoRa® and NB -IoT/LTE CAT-M wireless communication modes
  • Support LoRa frequency band: CN470, EU868, IN865, RU864, US915, AU915, KR920, and AS923-1/2/3/4
  • Easy to configure, and the network access configuration can be completed through the WisToolBox app on mobile devices.
  • Effectively blocks water vapor
  • Good stability
  • Low power consumption
    • External DC power supply (optional)
    • Solar panel power supply (optional)
  • Long service life
  • High sensitivity
  • Fast response
  • Easy to install

Package Inclusion

Device ListDescription
1 x Sensor Hub
1 x Mounting Kit
Sensor Hub + Sensor Hub Installation Kit
1 x CO2 Concentration Sensor
1 x Sensor Probe IO
Sensor Probe IO + CO2 Sensor
1 x Power Adapter
1 x Power Cable
Sensor Hub Power Adapter + Power Cable
1 x Cable TieFor wiring or fixing
