RAK2270 Sticker Tracker Datasheet

Overview

Description

RAK2270 Sticker Tracker is a battery-powered LoRaWAN® tracker with a label-like form factor powered by STM32WLE5. It’s compact; simply tear, peel, and stick RAK2270 to any product to virtually track its location in real time by leveraging the location estimator functionality of the Helium network server. It is activated using a Ri sensor, making it buttonless for ease of use.

With its built-in temperature sensor, it measures temperatures ranging from -20° C to +60° C with a temperature resolution of 0.1° C while simultaneously uploading the data to the server. It also includes an integrated 3-axis accelerometer that automatically adjusts the device positioning frequency. Because it detects whether the device is stationary or moving, it reduces device usage time.

Data, such as time, temperature, and motion state, remains safe and stored in an EEPROM storage space with a storage capacity of up to 64KB. Data can be saved locally when out of coverage and retained when coverage is restored. RAK2270 supports various LoRaWAN bands, including IN865, EU868, AU915, US915, KR920, RU864, and AS923-1/2/3/4.

Features

Powered by the STM32WLE5 LoRa SoC.
Supports LoRaWAN-based near real-time location estimation via the Helium Network Server and Trackpac platform.
Compact label-like form factor for easy attachment to products, packages, or assets.
Built-in 3-axis accelerometer that auto-adjusts the positioning frequency
Built-in temperature sensor
- Measurement range: -20° C to +60° C
- Resolution: 0.1° C
- Operating temperature: -20° C ~ +60° C
Up to 64 KB EEPROM storage for local data caching when the device is temporarily out of network coverage.
Battery-operated:
- Type: LiMnO₂
- Battery capacity: 600 mAh
LoRaWAN supported bands: IN865, EU868, AU915, US915, KR920, RU864, and AS923-1/2/3/4
Antenna gain: 2.0 dBi
Maximum output power: 22 dBm
Compact size: 85 mm x 118 mm x 1.5 mm

Variant Comparison

RAK2270 is available in three variants. Select the appropriate variant according to whether you need an integrated tracking service, integration with your own LoRaWAN platform, or access to firmware and hardware development interfaces.

Capability	RAK2270-Solutions	RAK2270-Generic	RAK2270-Developer
Platform integrated (Trackpac)	Yes	No	No
Plug-and-play	Yes	No	No
Sticker form factor	Yes	Yes	No
Battery included	Yes	Yes	No
OTAA EUIs and key provided	No	Yes	No
Can be integrated to own LNS and platform	No	Yes	Yes
Programmable with user-customized firmware	No	No	Yes
Programming pins, components, and test points accessible	No	No	Yes
Integrated GPS/GNSS	No	No	No
Location capability	Provided through the Helium Network Server and Trackpac	Implemented through the integrated platform or a third-party service	Defined by the developer's firmware and application architecture

Specifications

Block Diagram

The RAK2270 reference architecture includes one RAK3172-SiP, one LIS3DHTR, one EEPROM, and a LiMnO₂ battery power source for the finished sticker configuration.

The RAK3172-SiP provides the required LoRa modem and processing functions.
The LIS3DHTR is used to determine the frequency of data transmission based on motion state judgment.
EEPROM is used for local data storage.
The Solutions and Generic variants include a LiMnO₂ battery with a nominal capacity of 600 mAh.
The Developer package does not include a battery and is intended for development and evaluation.

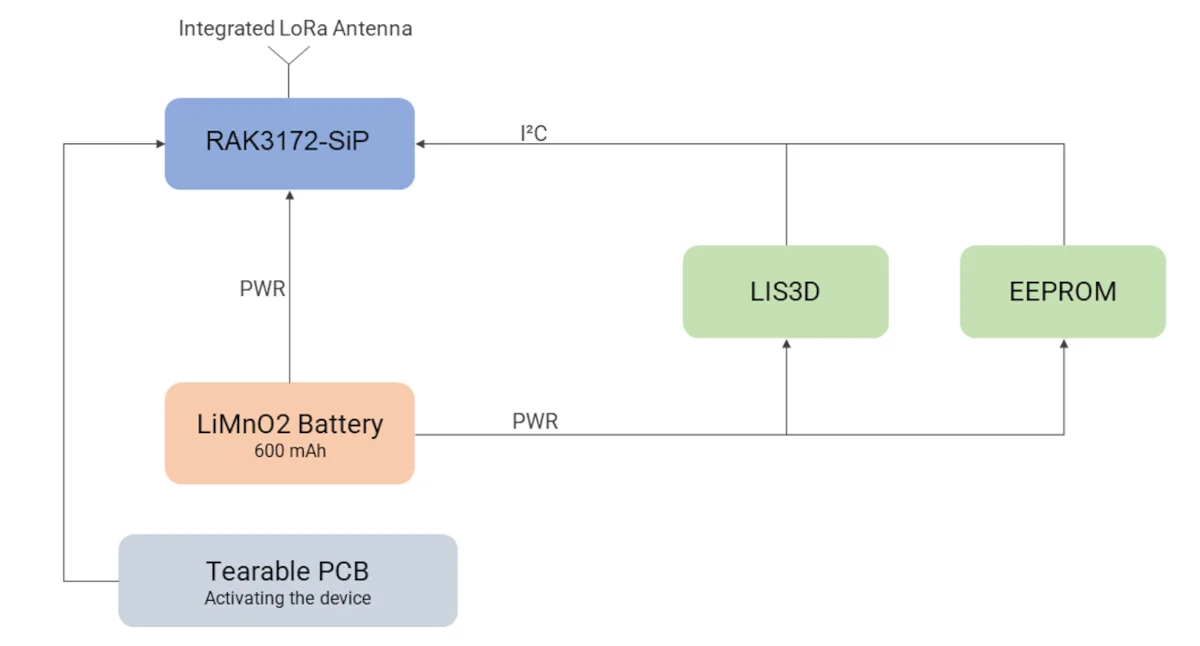

Figure 1: RAK2270 Sticker Tracker Block Diagram

Hardware

Chipset

Vendor	Part Number
STMicroelectronics	STM32WLE5

Main Specifications

The battery and module-size values below describe the finished sticker configuration used by the Solutions and Generic variants. The Developer variant exposes development interfaces and has different package contents.

Parameter	Values
Temperature	Measurement Range: -20° C ~ +60° C Resolution: 0.1° C Operating Temperature: -20° C ~ +60° C
Battery Type	LiMnO₂
Nominal Battery Capacity	600 mAh
Antenna Gain	2.0 dBi
Maximum Output Power	22 dBm
Module Size	85 mm x 118 mm x 1.5 mm
Activation Method	Ri sensor (buttonless)
