End Devices for LoRaWAN

WisNode is a category of products built by the RAK company for the IoT Industry. Modules under this category are end-user devices or IoT nodes used to serve a case scenario in a cost-efficient manner.

WisNode Track is a series of tracking devices that offer an optimal tracking and monitoring solution. Tracking devices with built-in GPS receivers send locations directly over the LoRaWAN network, while devices without built-in GPS receivers use the network's Time Difference of Arrival (TDoA) feature to determine data location. The sensors in these tracking devices may vary to detect movement as a trigger or report the temperature of the environment in which they are deployed.

RAK2270 is a battery-powered LoRaWAN tracker with a label-like form factor powered by STM32WLE5. Simply tear, peel, and stick RAK2270 to any product to virtually track its location in real time by leveraging the location estimator functionality of the Helium network server.

Sticker Tracker

Model: RAK2270

List of WisNode Legacy Products

End-of-Life Products

Model: WisNode Track

WisNode Map is a series of devices designed to evaluate deployed LoRaWAN networks. This mapping device assists in obtaining important insights into your network coverage, providing information about the distance, number of gateways, RSSI, and SNR from the position of the device. With these devices, your deployment works exactly as needed without blind spots with the best coverage possible for the real-world environment and also helps optimize the existing coverage of your network.

RAK10701-P Field Tester for LoRaWAN is a ready-to-use WisNode for evaluating deployed LoRaWAN network. It has a GNSS, a touchscreen LCD for the user interface, and is powered by a rechargeable battery.

Field Mapper for LoRaWAN Pro

Model: RAK10701-P

RAK10701-L Field Tester for LoRaWAN is a ready-to-use WisNode for evaluating deployed LoRaWAN network. It has a GNSS, a touchscreen LCD for the user interface, and is powered by a rechargeable battery.

Field Tester for LoRaWan

Model: RAK10701-L

RAK10701-H Field Mapper for Helium Network is a ready-to-use WisNode for evaluating the coverage of Helium Network. It has a GNSS, a touchscreen LCD for the user interface, and is powered by a rechargeable battery.

Field Mapper for Helium

Model: RAK10701-H

The RAK10706 is a basic signal meter. It works in both LoRa P2P and LoRaWAN mode. It uses an OLED display and a single-button controlled UI for settings changes. In addition, it can use an SD card to log the test results in CSV files.

Signal Meter for LoRa

Model: RAK10706

These are nodes integrating one or more sensors designed to collect data. Temperature and humidity are some of the environmental parameters these nodes measure and relay to the server.

List of WisNode Legacy Products

End-of-Life Products

Model: WisNode Sense

Connect your sensor network with the plug-and-play setup of Sensor Hub. It is a modular sensor ecosystem that offers intelligent probes for multiple applications, from managing complex office blocks or factories to monitoring large areas of farmland.

The RAK2560 WisNode Sensor Hub is a modular sensor ecosystem consisting of the main body and multiple pre-configured sensor probes. It has pluggable and interchangeable probes and supports third-party sensors integration.

WisNode Sensor Hub

Model: RAK2560

Sensor Hub Solutions are a series of fully prepared, ready-to-deploy devices designed for remote environmental measurement and wireless data transmission via NB-IoT or LoRaWAN. This selection is ideal for various IoT applications, offering modular expandability and seamless integration with third-party devices. Each Sensor Hub Solution has a comprehensive end-to-end guide, ensuring straightforward setup and operation.

The SensorHub barometric pressure monitoring solution includes the RAK1902 sensor in the Sensor Probe. It offers low power consumption and accurate data acquisition, making it suitable for measuring barometric pressure fluctuations.

Barometric Pressure Monitoring Solution

Model: Barometric Pressure

The Sensor Hub CO2 Concentration Monitoring solution comprises the RK300-03, and the Sensor Hub. It is widely used in various fields and locations requiring CO2 concentration detection.

CO2 Concentration Monitoring Solution

Model: CO2 Concentration

Environmental and Barometric Monitoring Solution integrates the RAK1901 temperature and humidity sensor and RAK1902 barometric pressure sensor, widely used in the food industry, agricultural, and industrial applications.

Environmental & Barometric Monitoring Solution

Model: Environmental & Barometric

The Environmental Monitoring solution offers an effective tool for monitoring temperature and Humidity levels, comprising the RAK Sensor Hub and Sensor Probe RAK1901 Sensirion SHTC3 sensor.

Environmental Monitoring Solution

Model: Environmental

The Soil Moisture, Temperature, and Electrical Conductivity Solution consists of RAK Sensor Hub and RK520-02, designed for use in settings such as rice fields and greenhouse cultivation.

Soil Monitoring Solution

Model: Soil

The Soil pH Sensor Solution comprises the RAK Sensor Hub and JXBS-3001-PF 485, which are suitable for use in various settings, such as rice fields and greenhouse cultivation.

Soil pH Monitoring Solution

Model: Soil pH

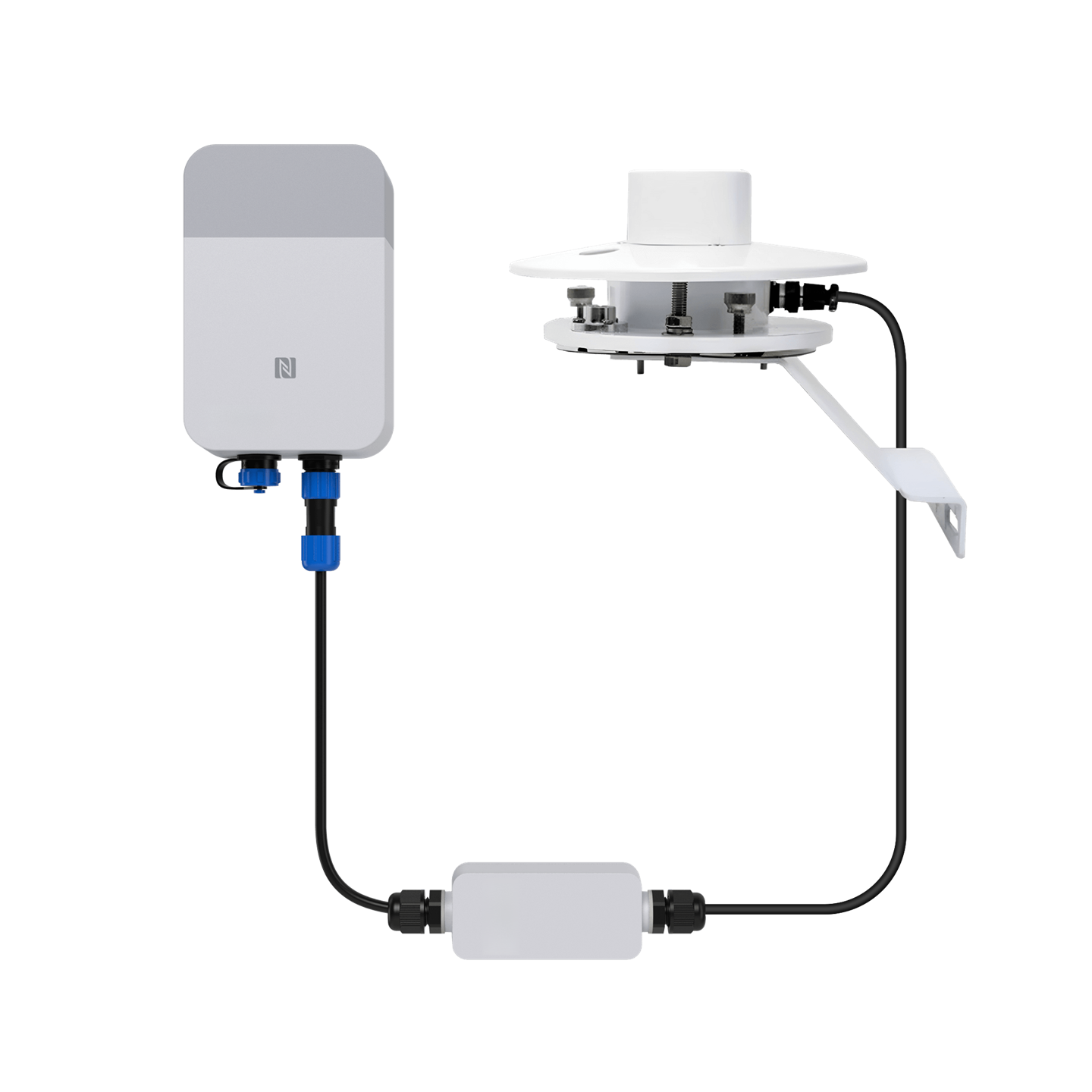

The Solar Radiation Sensor Solution combines the RAK SensorHub and RK200-03 sensor, offering versatility across multiple applications such as weather stations, solar installations, and agricultural monitoring systems.

Solar Radiation Monitoring Solution

Model: Solar Radiation

Sensor Hub Water Level Monitoring is widely used in applications for water level monitoring, such as hydrology exploration, water tank level measurements, and sewage.

Water Level Monitoring Sensor Hub Solution

Model: Water Level

Weather Station Solution is built with RAK Sensor Hub and RK900-09, widely used in applications like weather detection, prediction, and analysis.

Weather Station Monitoring Solution

Model: Weather Station

A variety of nodes design for user interaction. It can act as a simple button, a switch to your equipment, or a four-key button for the programmable hub to execute a series of tasks.

The RAK7201V2 WisNode Button 4K is a remote wireless trigger device. It supports user-defined functions for each key and is based on the LoRaWAN 1.0.3 protocol

WisNode Button 4K

Model: RAK7201V2

List of WisNode Legacy Products

End-of-Life Products

Model: WisNode Button

WisNode Bridge converts conventional industrial networks into a wireless, monitoring solution. It can operate as RS485 converters, CAN bus converters, or Analog or digital ones that are suitable for industry 4.0 deployment scenarios.

The RAK2461 WisNode Bridge IO Lite is the ultimate solution for seamless LoRaWAN communication in industrial environments. It has industrial-grade reliability and is based on the RAK3172-T LoRaWAN module, ensuring long-range connectivity even in harsh temperature conditions.

WisNode Bridge IO Lite

Model: RAK2461

RAK7431 is designed for industrial applications that relay Modbus data using the LoRaWAN network as a means of wirelessly transmitting to and from the end-devices. It can operate in all the LoRaWAN bands within the standard parameters defined by the LoRa Alliance. Hence, it allows good signal quality within the densely populated offices, storehouses, and even within the large factories.

WisNode Bridge Serial

Model: RAK7431

The RAK2470 WisNode Bridge Serial Prime is an RS485 to LoRaWAN converter designed for outdoor industrial applications. The device relays RS485 data using the LoRaWAN network to wirelessly transmit to and from the end devices.

WisNode Bridge Serial Prime

Model: RAK2470

RAK7432/RAK7434 WisNode Bridge Analogs can operate in all of the LoRaWAN bands within the standard parameters defined by the LoRa Alliance. RAK7432 can read the values from devices supporting the 4-20 mA current loop. RAK7434 can read the values from devices supporting the 0-5 V current loop.

WisNode Bridge Analog

Model: RAK7432/RAK7434
