RAK 3D Printable Portable Enclosures

License

All 3D-printable enclosures provided here are free to use and customize for your specific needs. However, these designs are protected by the Attribution-NonCommercial 4.0 International Deed, which allows you to:

Share - Copy and redistribute the material in any medium or format
Adapt - Remix, transform, and build upon the material

Under the following terms:

Attribution - Appropriate credit must be given, a link to the license included, and any modifications indicated. Attribution may be provided in any reasonable manner, provided it does not suggest endorsement by the licensor or imply endorsement of the resulting work.
NonCommercial - The material may not be used for commercial purposes.
No additional restrictions - No legal or technological measures may be applied that restrict others from using the material as permitted by the license.

RAKwireless Wismesh Pad V2

Figure 1: WisMesh Tap V2 with MUI	Figure 1: Assembly

This enclosure is an alternative for the RAKwireless WisMesh Tap and the upcoming WisMesh Tap V2. It is slimmer and lighter than the original Unify enclosure of the WisMesh Tap, but it does not provide IP65 water protection.

The battery can be disconnected using an integrated battery switch. While this solution does not allow recharging the battery while it is switched off, it prevents unnecessary battery drain when the device is not in use.

3D Print and Design Files

Download the 3D print files, or the STEP or Fusion 360 design files from either of the following sources:

The print files include different sizes for the WisBlock Base Boards RAK19007 and RAK19001.

Example Application

This enclosure is suitable for products running the Meshtastic firmware with TFT support for RAK4631 (old UI) or RAK3312 (new MUI).

Supported WisBlock modules

Application example code

Meshtastic
For RAK4631: flash firmware-rak_wismeshtap-2.6.11.60ec05e (or latest version) to make it a WisMesh Tap
For RAK3312: flash firmware-rak_wismesh_tap_v2-tft-2.7.12.45f15b8 (or latest version) to make it a WisMesh Tap V2.

RAKwireless Wismesh Pocket V2

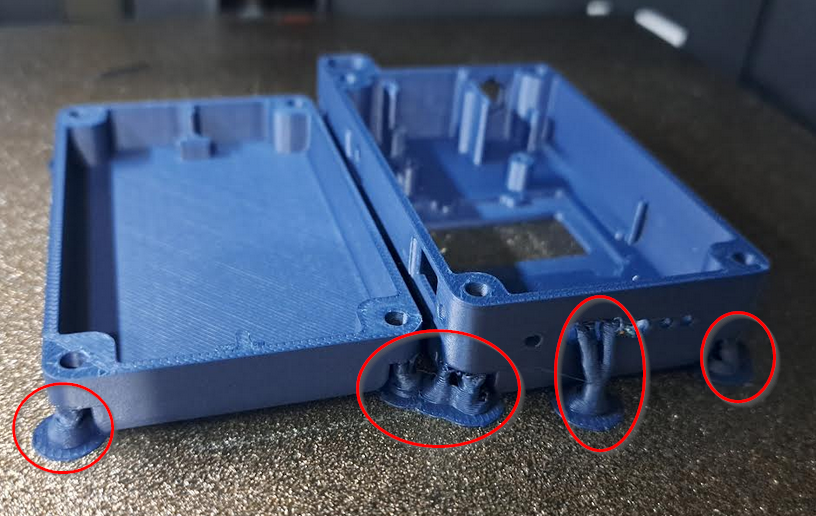

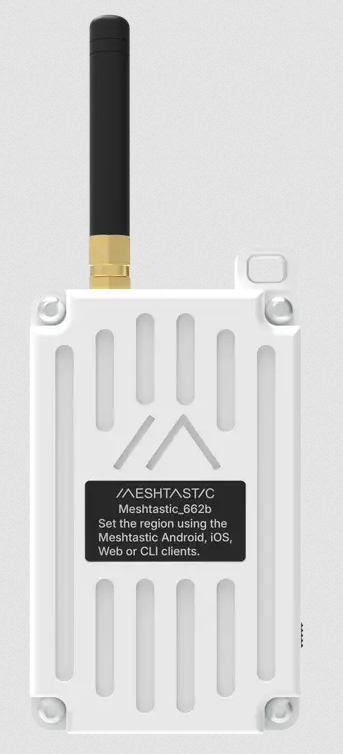

Figure 1: WisMesh Pocket V2	Figure 1: Print requires support

The WisMesh Pocket V2 is a ready-to-use, long-lasting Meshtastic node. It is ideal for users seeking a hassle-free device for instant connectivity. This device is powered by the efficient WisBlock solution based on the nRF52840, a top performer on the Meshtastic Community Approval list.

This model is the enclosure of the WisMesh Pocket V2, designed for 3D printing and customization. You can use the RAK19026 WisMesh Base Board to build your own WisMesh Pocket V2.

3D Print and Design Files

Download the 3D print files, or the STEP or Fusion 360 design files from either of the following sources:

Example Application

This enclosure is suitable for products running the Meshtastic firmware.

Supported WisBlock modules

RAK19026 WisMesh Base Board

Application example code

Meshtastic

RAKwireless Wismesh Pocket Alternative

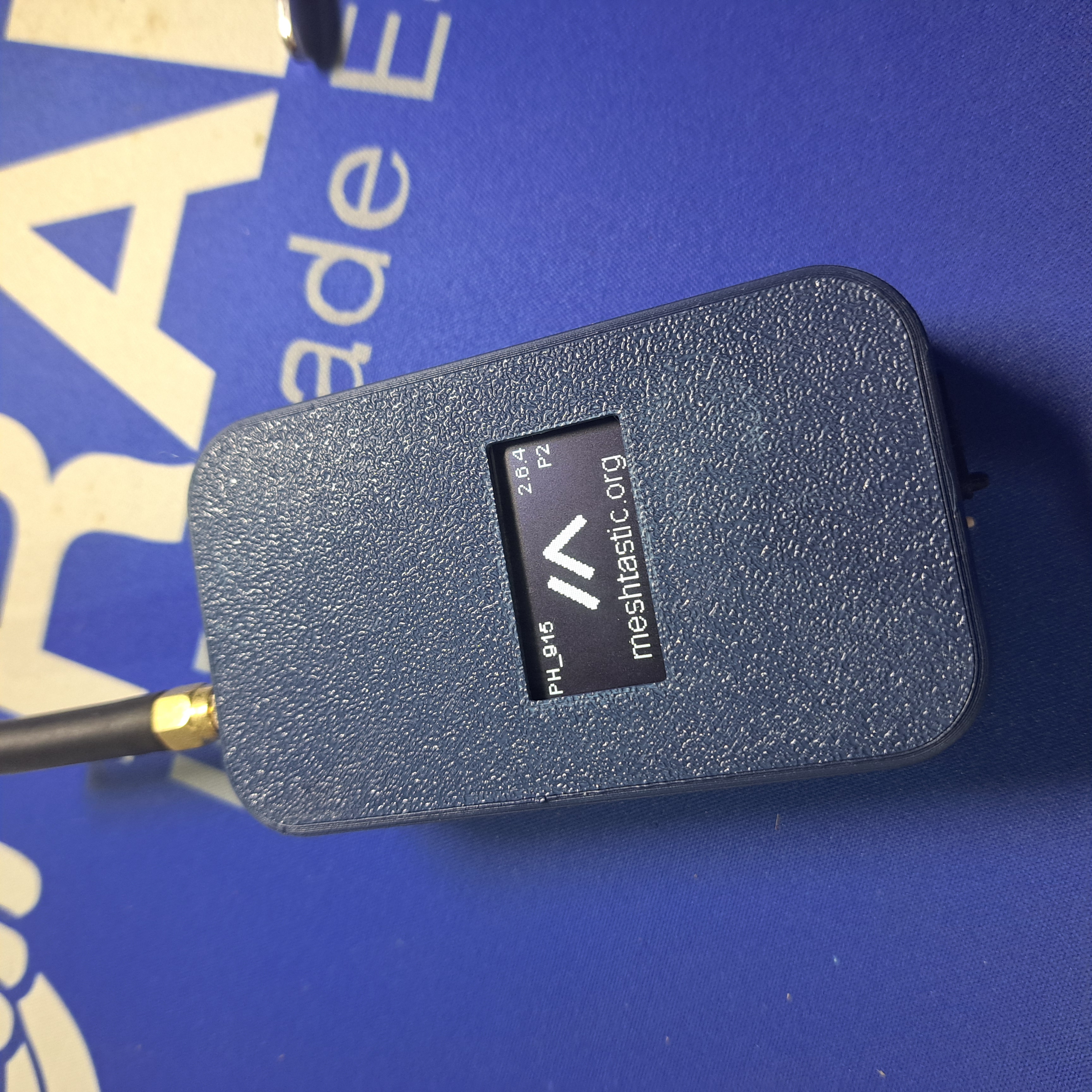

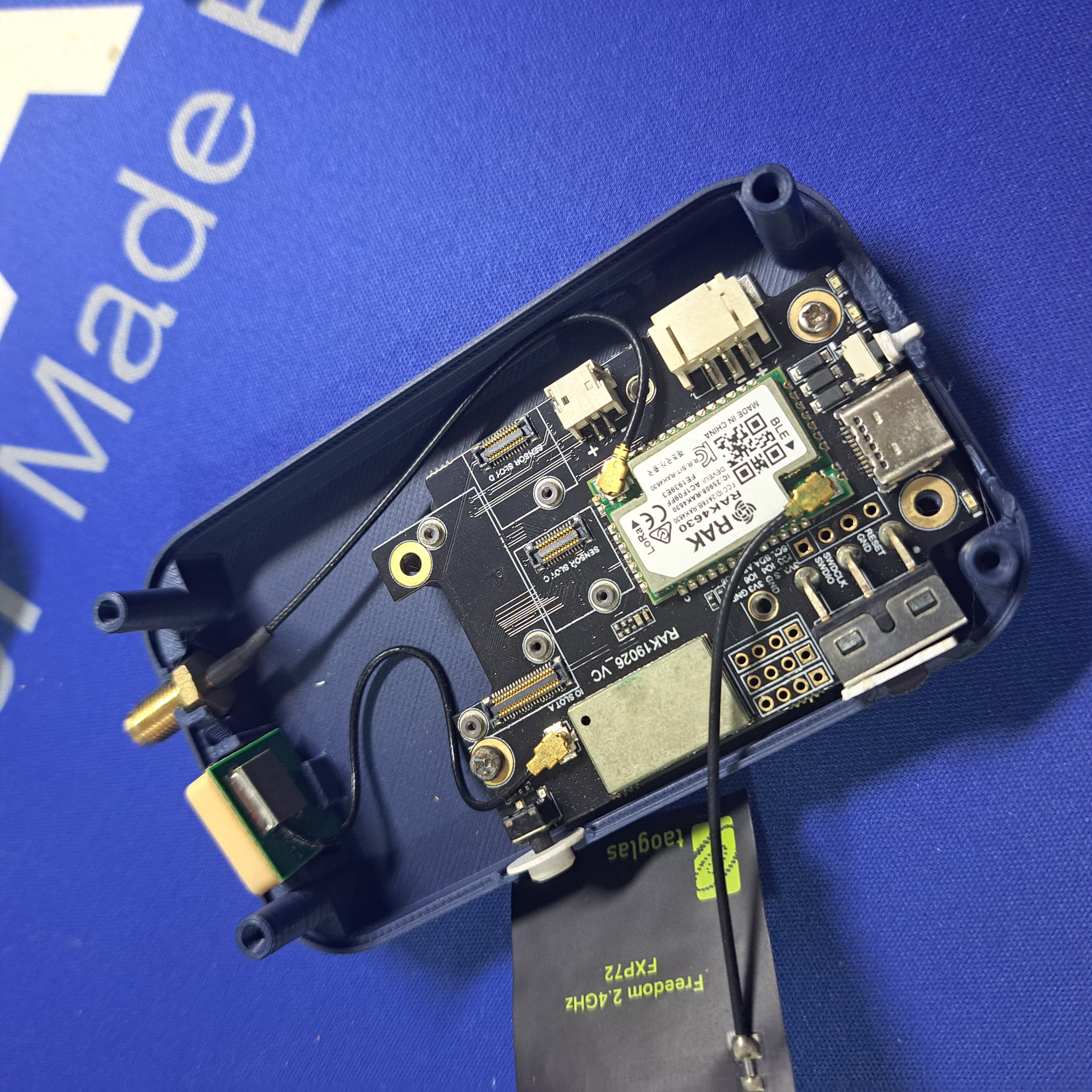

Figure 1: WisMesh Pocket Alternative	Figure 1: Assembly

This is an alternative enclosure for the RAKwireless WisMesh Pocket V2 (RAK19026). It is a simpler and slimmer design that does not require any support during printing.

The enclosure includes extra parts to protect the power switch and user button while providing easier access to the reset button.

3D Print and Design Files

Download the 3D print files, or the STEP or Fusion 360 design files from either of the following sources:

Example Application

This enclosure is suitable for products running the Meshtastic firmware.

Supported WisBlock modules

RAK19026 WisMesh Base Board

Application example code

Meshtastic

RAKwireless Wismesh Board ONE Pocket Alternative

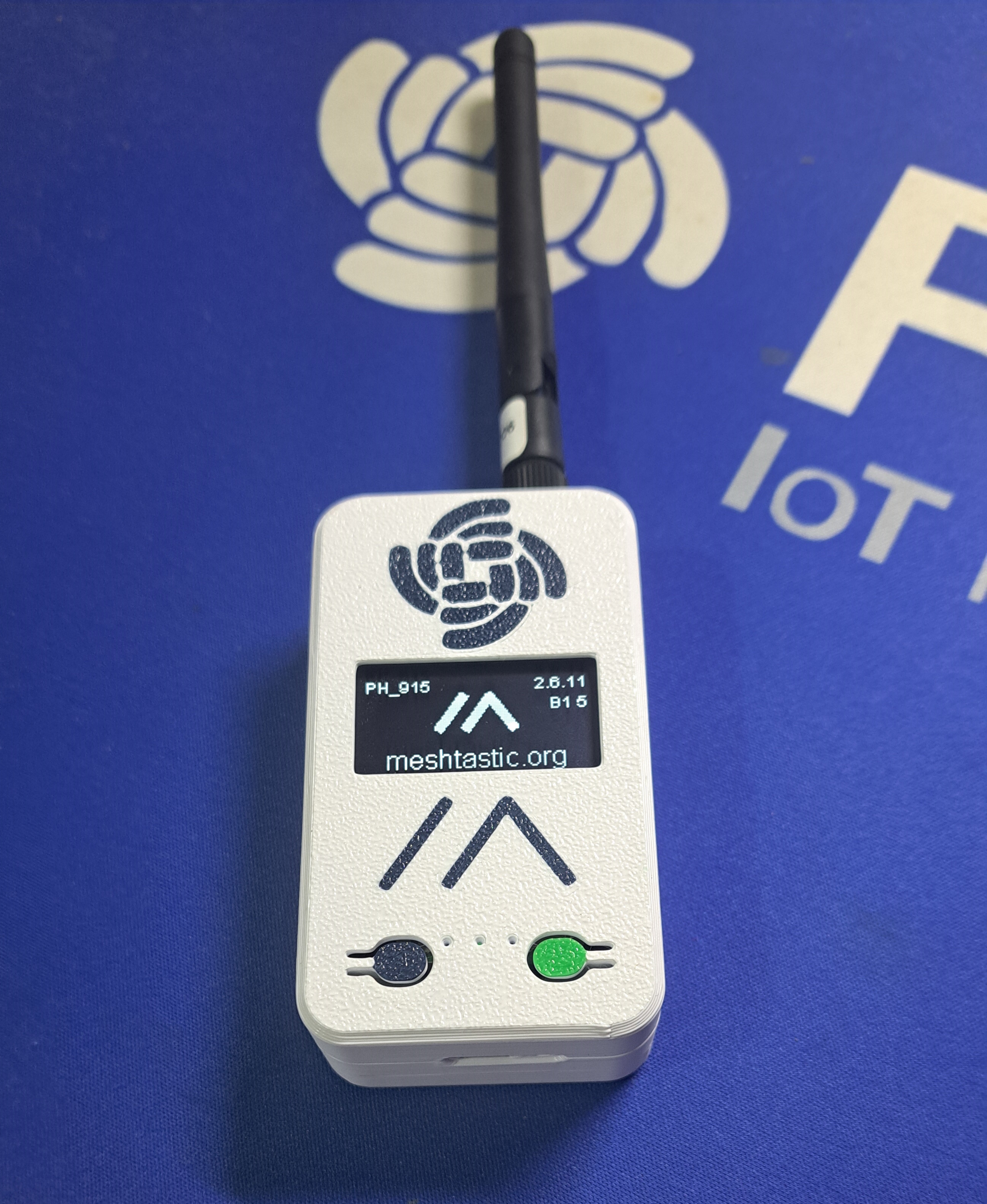

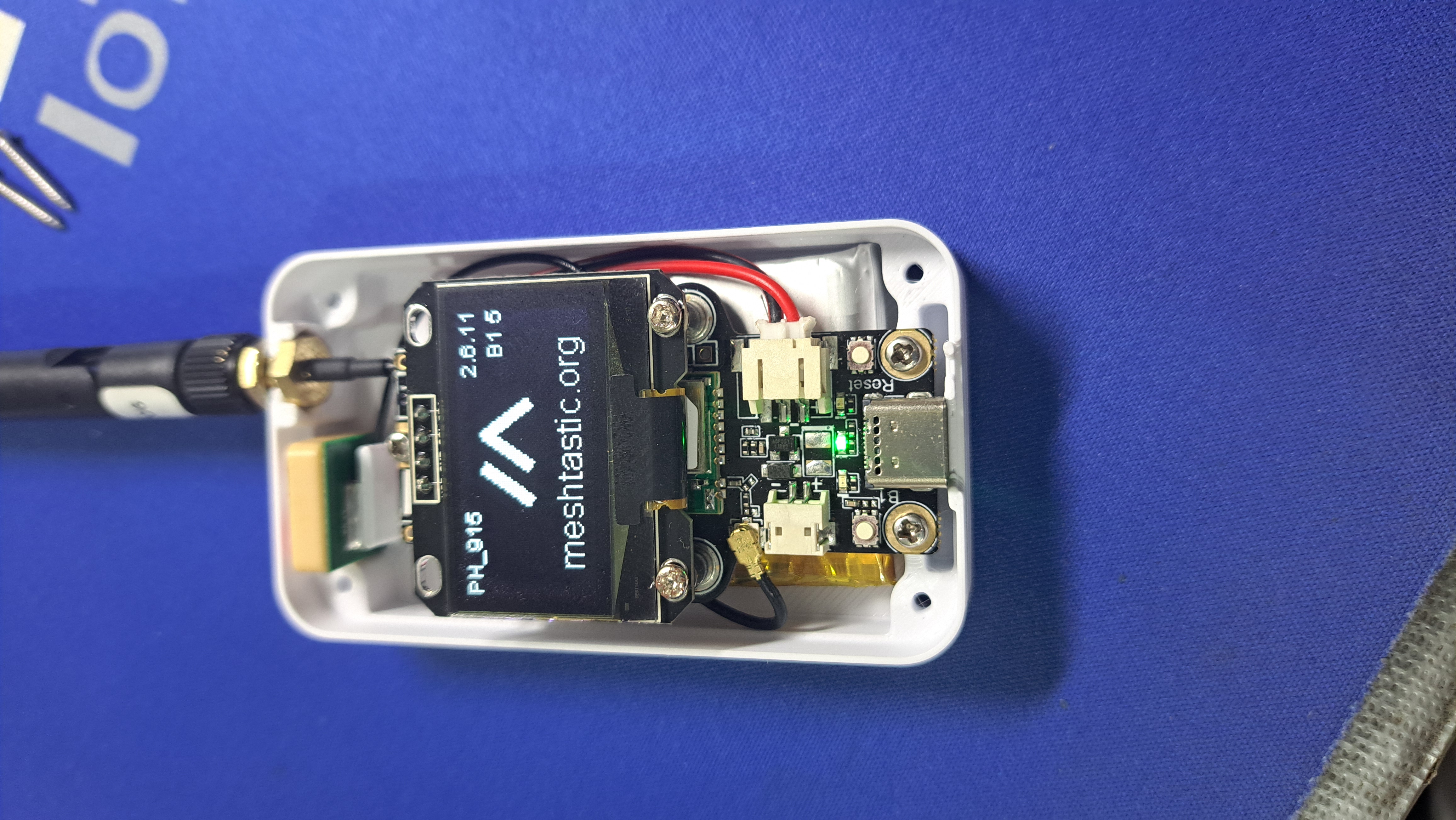

Figure 1: WisMesh Board ONE Pocket Alternative	Figure 1: Assembly

The WisMesh Board ONE is a breakout board for the RAK4630, specifically designed for Meshtastic. Unlike other baseboards such as the RAK19007, the WisMesh Board ONE reduces the number of connectors to compact the board size while retaining connectors for a solar panel, battery, OLED display, USB, and a sensor slot.

The sensor slot was initially intended for a GPS module (RAK12500) but is compatible with other WisBlock sensor modules. The board features a built-in PCB Bluetooth antenna and two surface-mount nuts for securing the OLED display. All GPIOs and power connections are accessible via pin headers.

This print is an alternative enclosure design, closely following the original while including some improvements.

3D Print and Design Files

Download the 3D print files, or the STEP or Fusion 360 design files from either of the following sources:

Example Application

This enclosure is suitable for products running the Meshtastic firmware.

Supported WisBlock modules

RAK19028 WisMesh Board ONE

Application example code

Meshtastic

RAKwireless RAK10706 Signal Meter Alternative

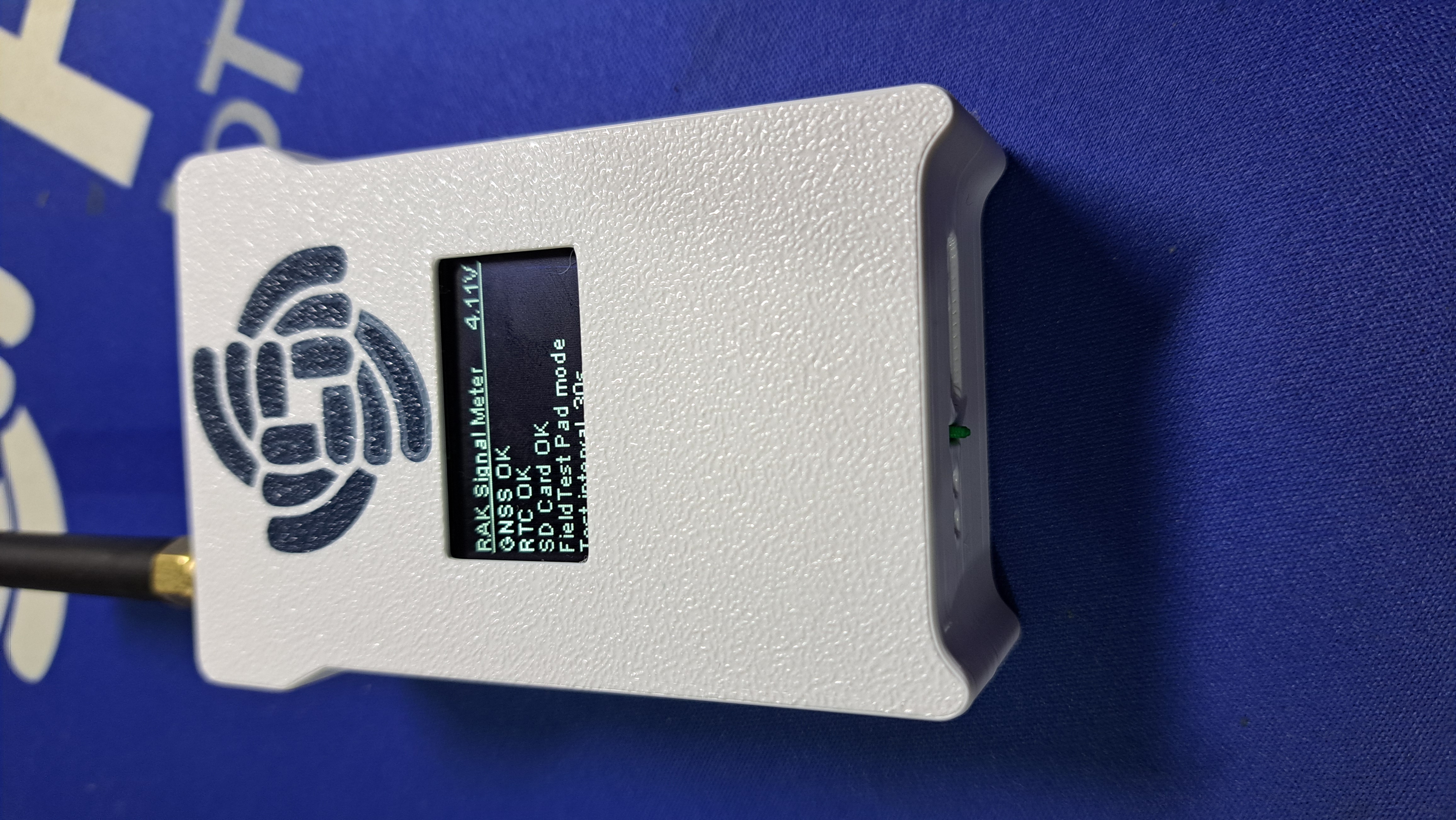

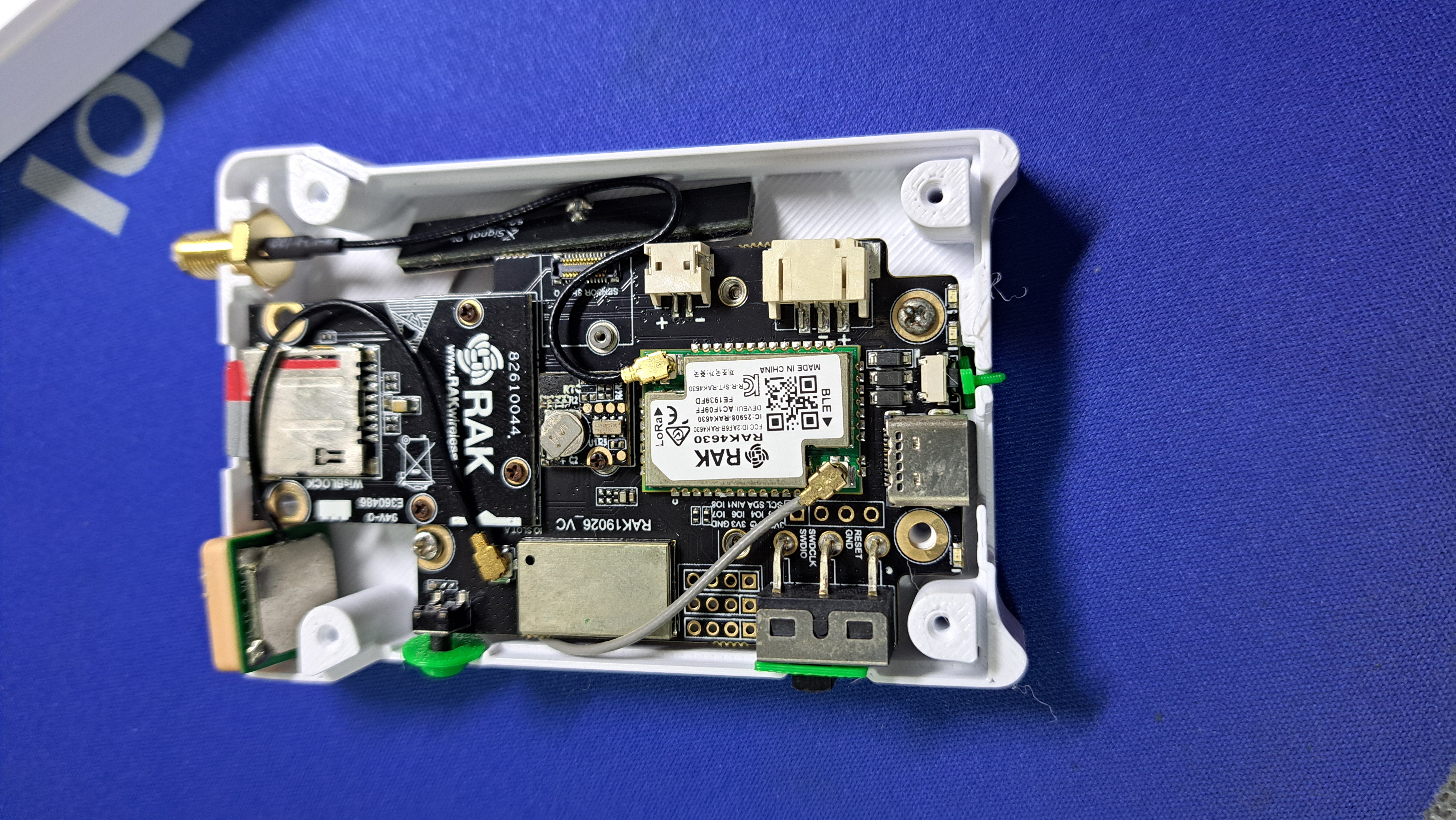

Figure 1: RAK10706 Signal Meter	Figure 1: Assembly

The RAK10706 Signal Meter for LoRa is a basic and easy-to-use device for checking LoRa and LoRaWAN coverage. It works in both LoRa P2P and LoRaWAN modes. The device features an OLED display and a single-button controlled UI for changing settings. It can also save test results to an SD card in CSV format and is powered by a rechargeable battery that charges via USB Type-C.

All settings can also be configured via USB using RUI3 AT commands. While it is not a highly precise instrument, it provides an affordable and convenient solution for quickly checking signal coverage.

3D Print and Design Files

Download the 3D print files, or the STEP or Fusion 360 design files from either of the following sources:

Example Application

This enclosure is suitable for running the RAK10706 open-source Signal Meter firmware.

Supported WisBlock modules

Application example code

RAK10706-Signal-Meter

Enclosure for RAK14000 EPD and buttons

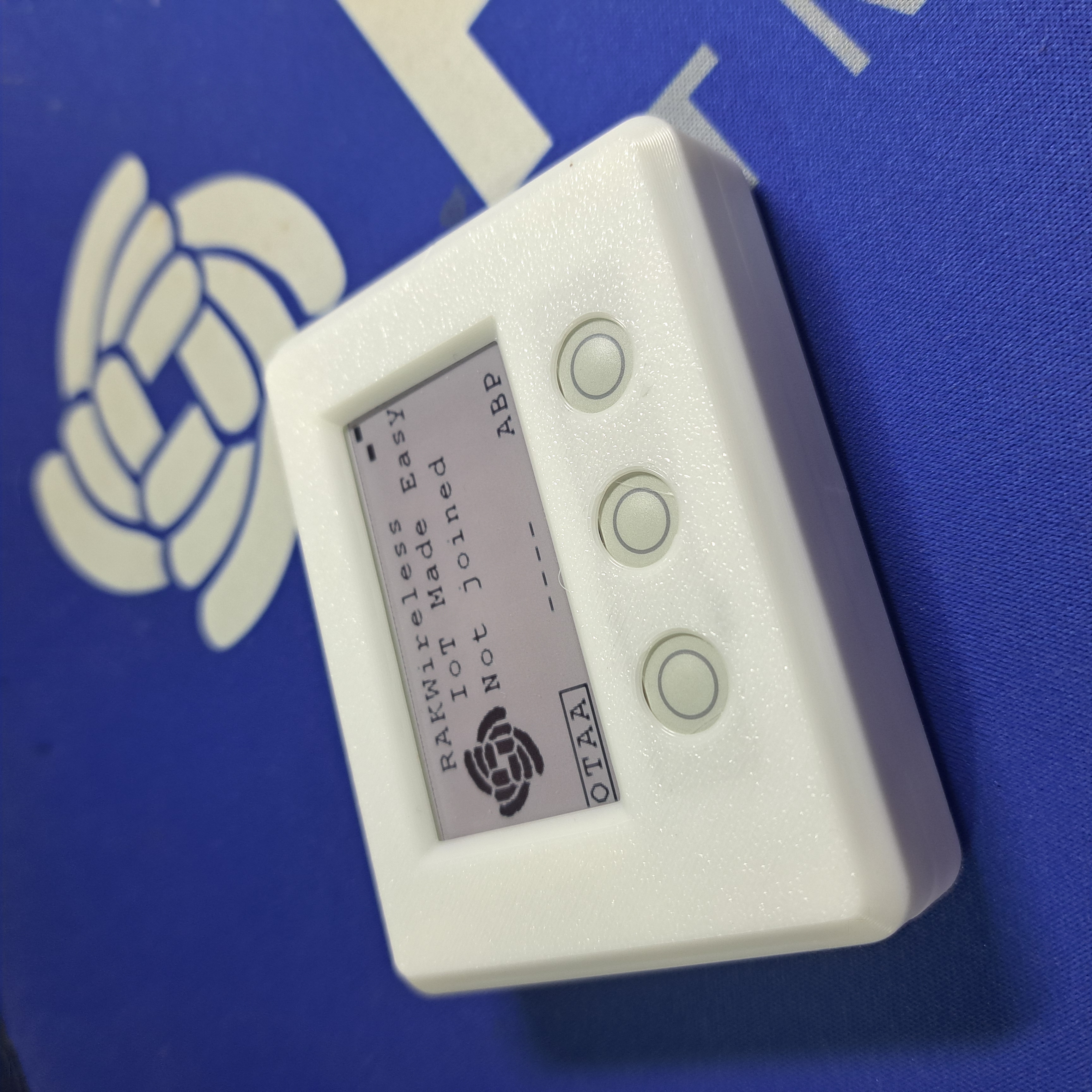

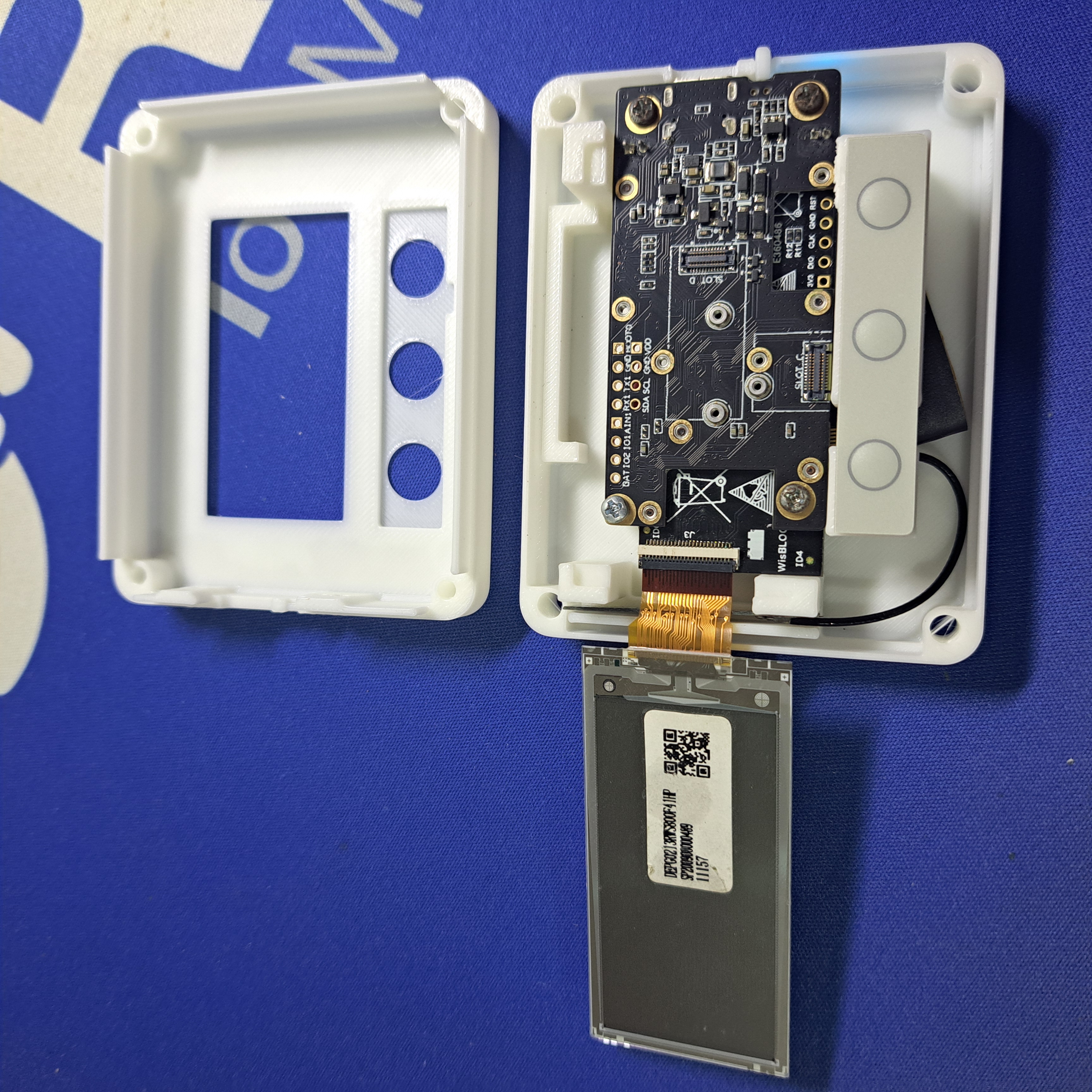

Figure 1: RAK14000 EPD	Figure 1: Assembly

This enclosure was developed in response to a customer request for a compact LoRaWAN end node suitable for demonstration purposes. It follows the design of a Meshtastic enclosure engineered by Daniel from RAKwireless.

The enclosure supports a RAK19007 WisBlock Base Board, any compatible WisBlock Core module, and the RAK14000 E-Ink display with three buttons.

For demonstration purposes, firmware is available in the RUI3-Best-Practices repository as RUI3-E-Ink Demo. When used with a RAK4631 Core Module, this enclosure can also function as a Meshtastic node. The WisMesh RAK4631 Starter Kit can be combined with the RAK14000 E-Ink display for this application.

3D Print and Design Files

Download the 3D print files, or the STEP or Fusion 360 design files from either of the following sources:

Example Application

This enclosure is intended for use with the RAK14000 E-Ink display.

Used electronic components

Used source code
