LoRa SPD Datasheet
Overview
Description
The LoRa SPD, also known as the LA-GT1000 SN1-1 Lightning Arrestor 2, is an outdoor RF surge protection device installed between the antenna and the LoRa gateway to prevent damage from lightning-induced surges, transient voltages, and overcurrent events. It features a two-stage protection circuit that ensures fast response and stable signal transmission with low insertion loss and 50 Ω impedance across the 800 MHz~960 MHz range.
Constructed from high-conductivity copper and enclosed in an IP67-rated housing, the LoRa SPD provides reliable and durable performance in harsh outdoor environments.
Features
- Connector type: N-type male to N-type female
- Impedance: 50 Ω
- Frequency range: 800 MHz~960 MHz
- Power loss: ≤ 0.3 dB
- Ingress protection: IP67
- Nominal Discharge Current: 10 kA (8/20 µs)
- Two-stage protection circuit
- Residual Voltage (Up): ≤ 15 V
Specifications
Hardware
Electrical Parameters
| Parameter | Value | Remarks |
|---|---|---|
| Frequency | 800 MHz ～960 MHz | |
| Connector | N-type male(protect) to N-type female(surge) | |
| Port impedance | 50 Ω | |
| Maximum transmission power | ≤ 50 W | |
| Voltage standing wave ratio (VSWR) | ≤ 1.25 | |
| Insertion loss | ≤ 0.3 dB | |
| Nominal discharge current In | 10 kA | 8/20 µs |
| Maximum discharge current Imax | 20 kA | 8/20 µs |
| Voltage protection Level Up | ≤ 15 V | 10kA，8/20µs |
| Degree of ingressive protection | IP67 | GB 4208 |
| Mounting | N-F port metal wall-through fixation | |
| Grounding | Grounding connector | |
| Weight | ≤ 300 g | |
| Material | High-conductivity copper, PTFE insulation, and ternary alloy inner connectors |
Environmental Characteristics
Operation Environment:
| Parameter | Value |
|---|---|
| Ambient temperature | -40° C~70° C |
| Relative humidity | 5%~95% |
| Atmospheric pressure | 70 kPa~106 kPa |
Storage Environment:
| Parameter | Value |
|---|---|
| Ambient temperature | -40° C~80° C |
| Relative humidity | 5%~95% |
| Atmospheric pressure | 70 kPa~106 kPa |
Standards
- YD/T 1542-2006 – Technical requirements and testing methods for Surge Protective Device of signaling networks.
- Q/70924537-1.01-2000 – General requirements for electronic surge protective device.
- GB 4943.1-2001 / IEC 60950-1:1999 – Safety of information technology equipment.
- GB/T 18802.21-2004 / IEC 61643-21:2000 – Low-voltage surge protective devices.
- Part 21: Surge protective device connected to telecommunications and signaling networks-performance requirements and testing methods.
Mechanical Characteristics

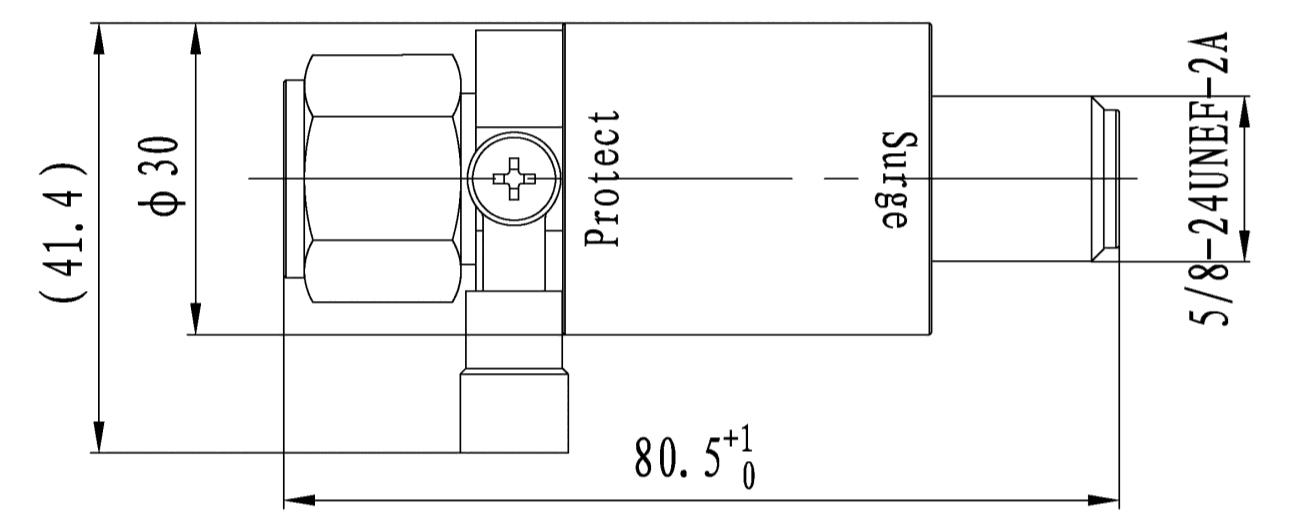

Figure 1: LoRa SPD Mechanical Dimensions

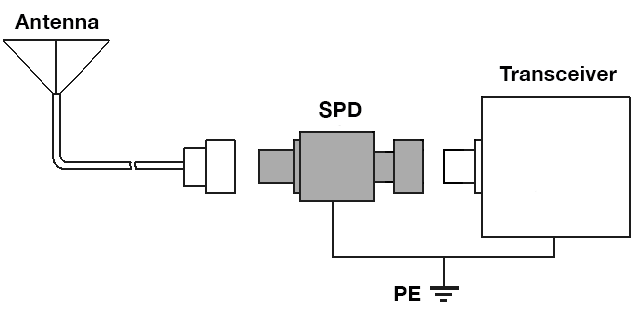

Figure 1: Typical Use of LoRa SPD
