WisBlock RAKBox-B6 Enclosure Datasheet
RAKBox-B6 is an IP20-rated enclosure for indoor usage. It is designed specifically for WisBlock products.
Lightweight Plastic Design
- The enclosure is compact and lightweight, ideal for space-constrained setups.
- The slots in the cover allow airflow through the enclosure for applications that measure ambient environmental parameters like temperature, humidity, gases, and air quality.
- Supports easy wall-mounting with screws.
- Easy access to the USB port allows recharging and reprogramming of the internal WisBlock without opening the enclosure.
- Lid to close USB access
Mechanical Characteristics
- Enclosure material: ABS UL94-HB
- Dimensions: 84.5 mm x 84.5 mm x 36.7 mm (W x L x H)
- Weight: approximately 56.6 g (without mounting plate)
- Material thickness: 2.15 mm
- Supports wall mounting
- Ingress Protection: IP20

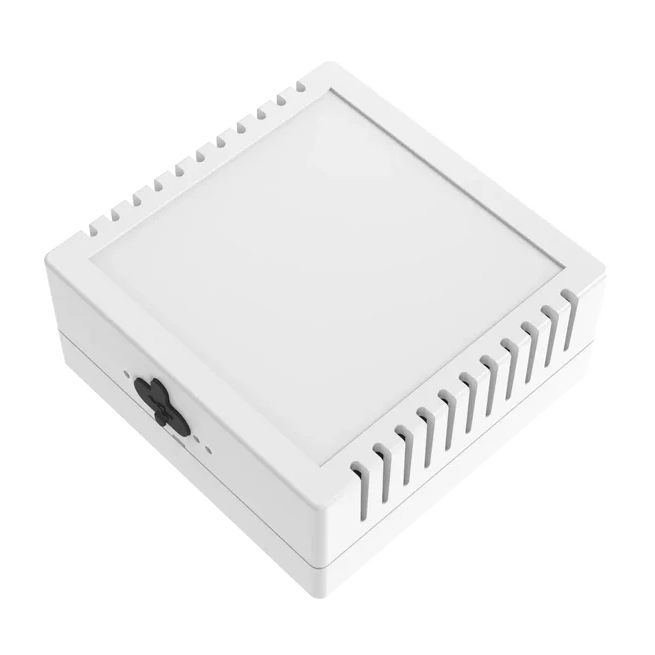

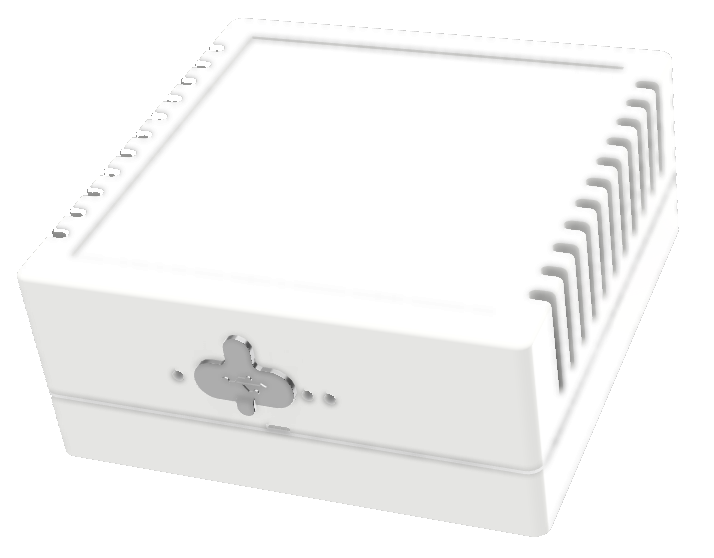

Figure 1: WisBlock RAKBox-B6 EnclosureWisBlock Module Support
The enclosure is compatible with the following WisBlock Base Boards:
Package Content
- Enclosure with supporting plate kits for WisBlock form factor board
- Mounting Kit for Wall Mounting
Mounting Kit
Wall mount screws are included in the package.
Figure 1: Mounting KitEnclosure Dimensions
Figure 1: Enclosure Dimensions (mm)Location for USB and LED Openings
Figure 1: USB and LED Opening Locations (mm)Internal Mounting Point Positions
Figure 1: Internal Mounting Points (mm)Mounting Plate Dimensions
Figure 1: Mounting Plate Dimensions (mm)
