RAK3172 Evaluation Board Quick Start Guide

Prerequisites​

What Do You Need?​

Before going through the step in the installation guide of the RAK3172 Evaluation Board, make sure to prepare the necessary items listed below:

Hardware​

Software​

warning

If you are using Windows 10. Do NOT install the Arduino IDE from the Microsoft App Store. Instead, install the original Arduino IDE from the Arduino official website. The Arduino app from the Microsoft App Store has problems using third-party Board Support Packages.

  • Add RAK3172 as a supported board in Arduino IDE by updating Board Manager URLs in Preferences settings of Arduino IDE with this JSON URL https://raw.githubusercontent.com/RAKWireless/RAKwireless-Arduino-BSP-Index/main/package_rakwireless.com_rui_index.json. After that, you can then add RAKwireless RUI STM32 Boards via Arduino board manager.
  • RAK Serial Port Tool
NOTE

CH340 USB-Serial Driver must be installed manually for Windows 10 users having USB connection issues.

List of Acronyms​

AcronymDefinition
DFUDevice Firmware Upgrade
JTAGJoint Test Action Group
LoRaLong Range
OTAAOver-The-Air-Activation
ABPActivation-By-Personalization (ABP)
TTNThe Things Network
DEVEUIDevice EUI (Extended Unique Identification)
APPEUIApplication EUI (Extended Unique Identification)
APPKEYApplication Key
DEVADDRDevice Address
NWKSKEYNetwork Session Key
APPSKEYApplication Session Key
P2PPoint-to-Point

Product Configuration​

RAK3172-E as a Stand-Alone Device Using RUI3​

Hardware Setup​

The RAK3172-E requires a general-purpose computer USB port via a micro USB cable. You can use any serial communication tool, but it is recommended to use the RAK Serial Port Tool.

warning

Firmware update is done via USB port. If you will connect the module to an external device that will be interfacing with USB, take extra precautions in your board design to ensure you can still perform FW update to it. There should be a way in your board design that can disconnect the external device to RAK3172-E USB before connecting the module to the PC via USB for the FW update process.

An alternative option to update firmware aside from USB is to use SWD pins (SWCLK & SWDIO). This method will require you to use external tools like ST-LINK or RAKDAP1.

Figure 6016: RAK3172 Evaluation Board schematic

Ensure that the antenna is properly connected to have a good LoRa signal. Also, note that you can damage the RF section of the chip if you power the module without an antenna connected to the IPEX connector.

Figure 6017: LoRa Antenna

RAK3172-E has an IPEX connector where you can connect the LoRa antenna, as shown in Figure 3.

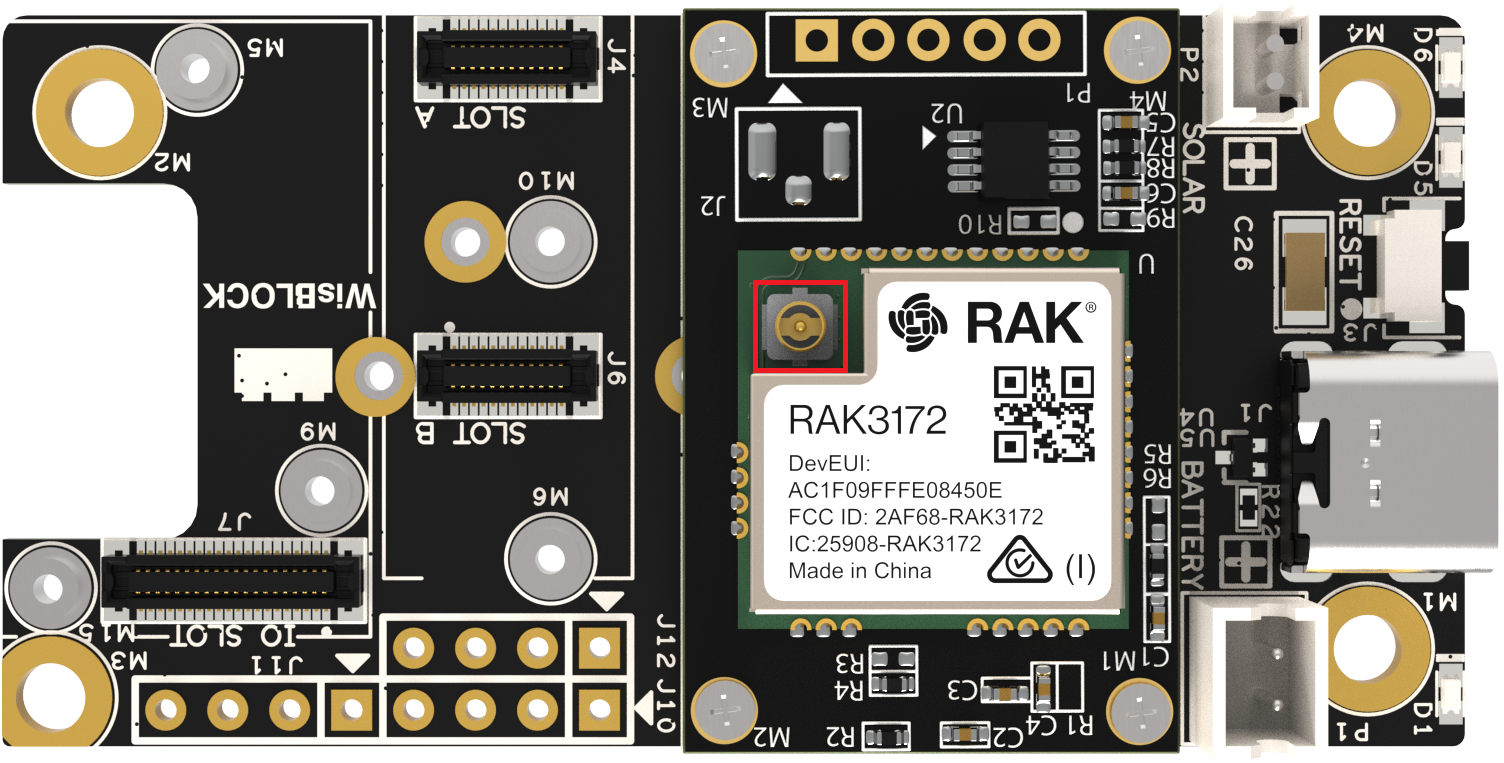

Figure 6018: IPEX Connector of RAK3172-E for LoRa Antenna
NOTE

Detailed information about the RAK3172 LoRa antenna can be found on the antenna datasheet.

warning

When using the LoRa transceiver, make sure that an antenna is always connected. Using this transceiver without an antenna can damage the module.

Software Setup​

The default firmware of RAK3172-E is based on RUI3, which allows you to develop your custom firmware to connect sensors and other peripherals to it. To develop your custom firmware using Arduino IDE, you need first to add RAKwireless RUI STM32 Boards in the Arduino board manager, which will be discussed in this guide. You can then use RUI3 APIs for your intended application. You can upload the custom firmware via USB. The AT commands of RAK3172 is still available even if you compile custom firmware via RUI3. You can send AT commands via USB connection.

RAK3172 RUI3 Board Support Package in Arduino IDE​

If you don't have an Arduino IDE yet, you can download it on the Arduino official website and follow the installation procedure in the miscellaneous section of this document.

NOTE

For Windows 10 and up users: If your Arduino IDE is installed from the Microsoft App Store, you need to reinstall your Arduino IDE by getting it from the Arduino official website. The Arduino app from the Microsoft App Store has problems using third-party Board Support Packages.

Once the Arduino IDE has been installed successfully, you can now configure the IDE to add the RAK3172 in its board selection by following these steps.

  1. Open Arduino IDE and go to File > Preferences.
Figure 6019: Arduino preferences
  1. To add the RAK3172-E to your Arduino Boards list, edit the Additional Board Manager URLs and click the icon, as shown in Figure 5.
Figure 6020: Modifying Additional Board Manager URLs
  1. Copy the URL https://raw.githubusercontent.com/RAKWireless/RAKwireless-Arduino-BSP-Index/main/package_rakwireless.com_rui_index.json and paste it on the field, as shown in Figure 6. If there are other URLs already there, just add them on the next line. After adding the URL, click OK.
Figure 6021: Add additional board manager URLs
  1. Restart the Arduino IDE.
  2. Open the Boards Manager from Tools Menu.
Figure 6022: Opening Arduino boards manager
  1. Write RAK in the search bar, as shown in Figure 8. This will show the available RAKwireless module boards that you can add to your Arduino Board list. Select and install the latest version of the RAKwireless RUI STM32 Boards.
Figure 6023: Installing RAKwireless RUI STM32 boards
  1. Once the BSP is installed, select Tools > Boards Manager > RAKWireless RUI STM32 Modules > WisDuo RAK3172 Evaluation Board. The RAK3172 Evaluation board uses RAK3172 WisDuo module.
Figure 6024: Selecting RAK3172 Evaluation Board
Compile an Example with Arduino LED Breathing​
  1. After completing the steps on adding your RAK3172 to the Arduino IDE, you can now try to run a simple program to test your setup. Your RAK3172 evaluation board already has two LEDs to test. The LEDs can be found near the reset button and USB connector, as shown in Figure 10.

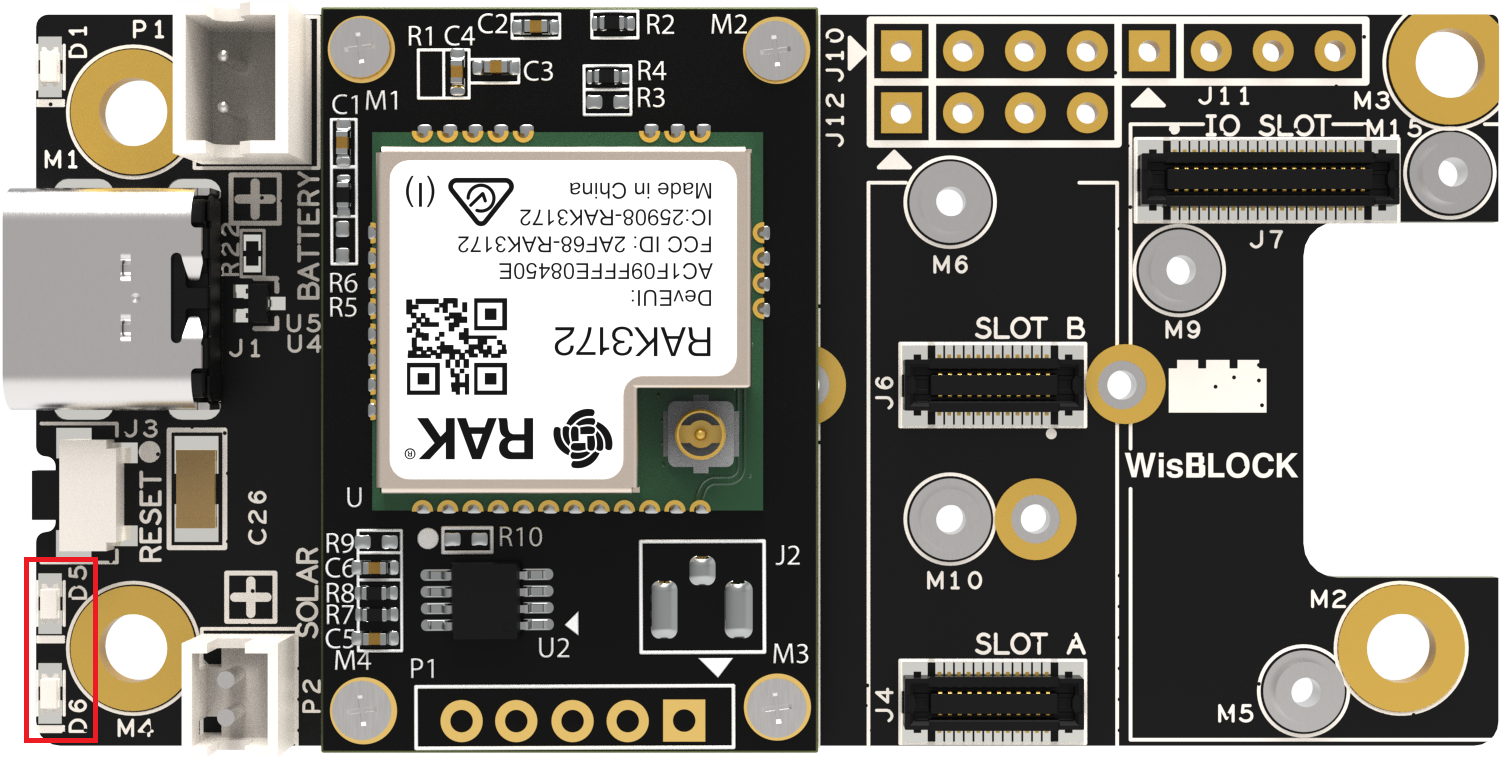

Figure 6025: RAK3172 Evaluation Board LEDs
  1. Connect the RAK3172-E via USB and check RAK3172 COM Port using Windows Device Manager. Double-click the reset button if the module is not detected.
Figure 6026: Device manager ports (COM & LPT)
  1. Choose RAK3172-E on board selection select via Tools > Boards Manager > RAKWireless RUI STM32 Modules > WisDuo RAK3172 Evaluation Board.
Figure 6027: Selecting RAK3172 Evaluation Board
  1. Open Tools Menu and select a COM port. COM28 is currently used.
Figure 6028: Select COM port
  1. You can see the serial monitor icon and click it to connect the COM port.
Figure 6029: Open Arduino serial monitor
  1. If the connection is successful, you can send AT Commands to RAK3172. For example: To check the RUI version, type AT+VER=? on the text area, then click on the Send button, as shown in Figure 15.
Figure 6030: Send AT command
Figure 6031: Arduino serial monitor COM28
  1. Open Arduino_Led_Breathing example code.
Figure 6032: Arduino Led Breathing example
  1. Click on the Verify icon to check if you have successfully compiled the example code.
Figure 6033: Verify the example code
  1. Click the Upload icon to send the compiled firmware to your RAK3172.
NOTE

RAK3172-E should automatically go to BOOT mode when the firmware is uploaded via Arduino IDE.


If BOOT mode is not initiated, you can manually send AT+BOOT command to start bootloader mode.

Figure 6034: Upload the example code
  1. If the upload is successful, you will see the Device programmed message.
Figure 6035: Device programmed successfully
  1. After the Device Programmed is completed, you will see that LEDs are blinking.

RAK3172-E as a LoRa/LoRaWAN Modem via AT Command​

AT Command via the USB​

RAK3172 evaluation board can be configured using AT commands via the USB interface. Connect the RAK3172 evaluation board to your computer's USB port and a serial terminal tool. You can use the RAK Serial Port Tool, so you can easily send AT commands and view the replies from the console output. The RAK Serial Port Tool commands still uses the RUI V2 AT commands by default. You can modify it to have RUI3 AT commands and then save it.

warning

Firmware update and AT command functionality are done via USB pins. If you will connect the module to an external host MCU that will send AT commands via USB, take extra precautions in your board design to ensure you can still perform FW update to it. There should be a way in your board design that can disconnect the host MCU UART to connect to RAK3172-E USB before connecting the module to the PC via USB for the FW update process.

An alternative option to update firmware aside from USB is to use SWD pins (SWCLK & SWDIO). This method will require you to use external tools like ST-LINK or RAKDAP1.

Connect to the RAK3172 Evaluation Board​

  1. Connect the RAK3172 evaluation board to the general-purpose computer USB port via a micro USB cable, as shown in Figure 21.

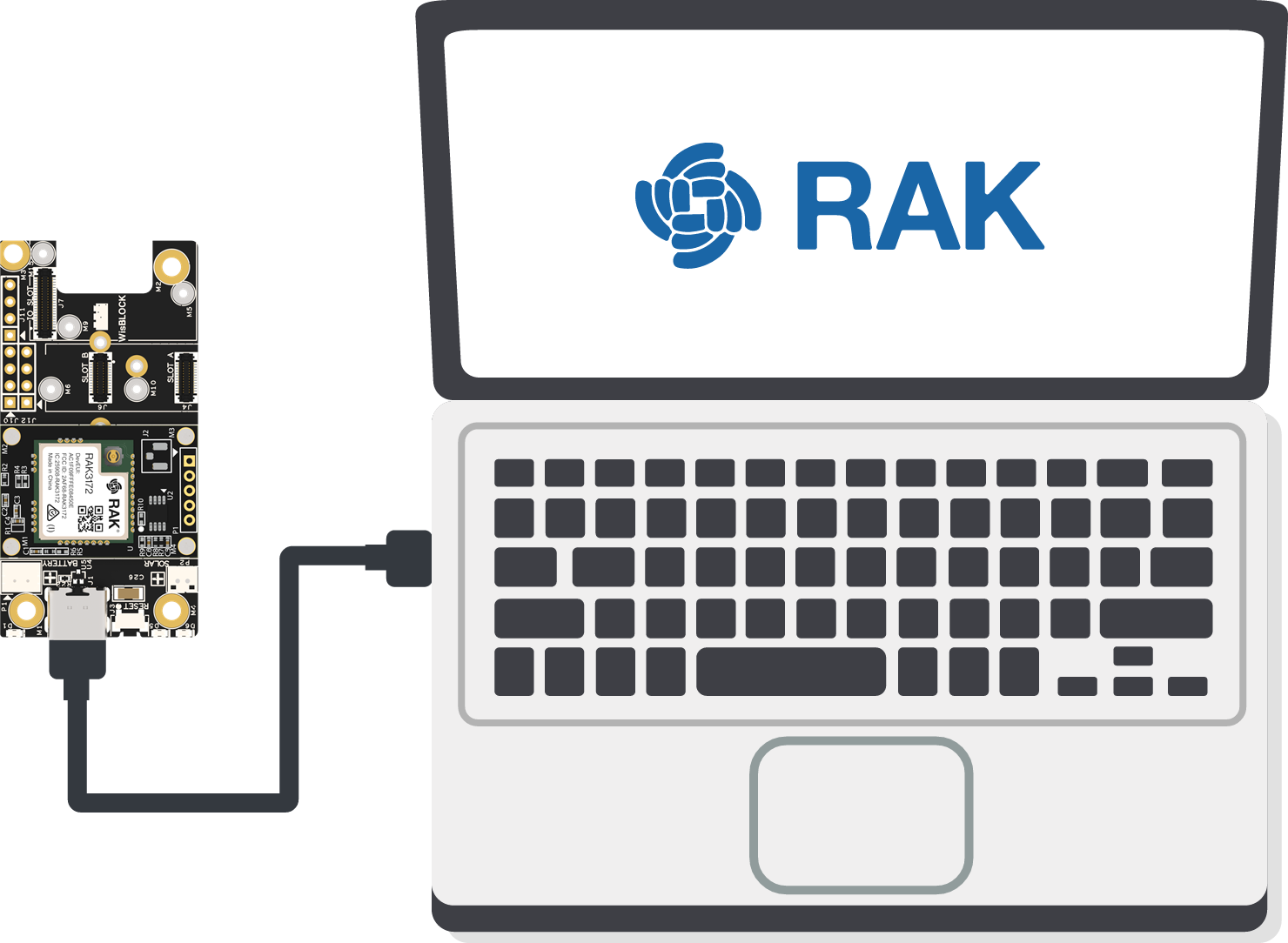

Figure 6036: RAK3172 EVB Connection

  1. Any serial communication tool can be used; but, it is recommended to use the RAK Serial Port Tool.

  2. Configure the serial communication tool by selecting the proper port detected by the computer and configure the link as follows:

  • Baud Rate: 115200 baud
  • Data Bits: 8 bits
  • Stop Bits: 1 stop bit
  • Parity: NONE
RAK3172 Evaluation Board Configuration for LoRaWAN or LoRa P2P​

To enable the RAK3172 module as a LoRa P2P module or a LoRaWAN end-device, the module must be configured and parameters must be set by sending AT commands. You can configure the RAK3172 in two ways:

  • LoRaWAN End-Device - RAK3172-E as LoRaWAN IoT device.
  • LoRa P2P - Point-to-point communication between two RAK3172 evaluation boards.

Configuring RAK3172-E as LoRaWAN End-Device​

To enable the RAK3172-E breakout board as a LoRaWAN end-device, a device must be registered first in the LoRaWAN network server. This guide will cover both TTN and Chirpstack LoRaWAN network servers and the associate AT commands for the RAK3172-E.

This guide covers the following topics:

Connecting to The Things Network (TTN)​

In this section, a quick tutorial guide will show how to connect the RAK3172 Evaluation Board to the TTN platform.

NOTE

In this guide, you need to have a working gateway that is connected to TTN or you have coverage of the TTN community network.

Figure 6037: RAK3172 in the context of the TTN

As shown in Figure 22, The Things Stack (TTN V3) is an open-source LoRaWAN Network Server suitable for global, geo-distributed public and private deployments as well as for small, local networks. The architecture follows the LoRaWAN Network Reference Model for standards compliancy and interoperability. This project is actively maintained by The Things Industries.

LoRaWAN is a protocol for low-power wide-area networks. It allows for large-scale Internet of Things deployments where low-powered devices efficiently communicate with Internet-connected applications over long-range wireless connections.

The RAK3172 Evaluation Board can be part of this ecosystem as a device, and the objective of this section is to demonstrate how simple it is to send data to The Things Stack using the LoRaWAN protocol. To achieve this, the RAK3172 Evaluation Board must be located inside the coverage of a LoRaWAN gateway connected to The Things Stack server.

Registration to TTN and Creating LoRaWAN Applications​
  1. The first step is to go to The Things Network and sign up an account shown in Figure 23. Then select a cluster as shown in Figure 25.
Figure 6038: Signing up an account in TTN
Figure 6039: Signing up an account in TTN
Figure 6040: Selecting Cluster in TTN
Figure 6041: Signing up through the Things ID
Figure 6042: Creation of an account through the Things ID
Figure 6043: Creation of an account through the Things ID

You can use the same login credentials on the TTN V2 if you have one. If you have no account yet, you need to create one.

  1. Now that you are logged in to the platform, the next step is to create an application. Click Create an application.
Figure 6044: The Things Stack Platform
Figure 6045: Creating TTN application for your LoRaWAN devices
  1. To have an application registered, input first the specific details and necessary information about your application then click Create application.
Figure 6046: Details of the TTN application
Figure 6047: Details of the TTN application
  1. If you have no error on the previous step, you should now be on the application console page. The next step is to add end-devices to your TTN application.

LoRaWAN specifications enforce that each end-device has to be personalized and activated. There are two options in registering devices depending on the activation mode selected. Activation can be done either via Over-The-Air-Activation (OTAA) or Activation-By-Personalization (ABP).

TTN OTAA Device Registration​
  1. Go to your application console to register a device. To start adding an OTAA end-device, click + Register end device, as shown in Figure 33.
Figure 6048: Register end device
  1. To register the board, click the Enter end device specifics manually.
Figure 6049: Enter end device specifics manually
  1. Next step is to set up Frequency plan, compatible LoRaWAN version, and Regional Parameters version supported. Then provide the JoinEUI credentials by entering zeroes into it.
Figure 6050: Setting up for your device
Figure 6051: Setting up for your device
Figure 6052: Setting up for your device
Figure 6053: Setting up for your device
  1. Then click Show advanced activation, LoRaWAN class and cluster settings. Configure the activation mode by selecting Over the air activation (OTAA) and Additional LoRaWAN class capabilities to class A only. Then click Confirm.
Figure 6054: Setting up for your device
Figure 6055: Setting up for your device
  1. Once done, provide the DevEUI credentials of your device into the DevEUI portion. This will automatically generate the specific End device ID of your board. Then click Generate under AppKey under Provisioning information section. Then click Register end device.
NOTE

  • The AppEUI, DevEUI, and AppKey are hidden in this section as these are unique from a specific device. The DevEUI credential is unique to every RAK3172 device. Also, you should generate your own AppEUI and AppKey credentials for your specific device and application.

  • The AppEUI is the same as JoinEUI.

Figure 6056: Setting up for your device
Figure 6057: Setting up for your device
Figure 6058: Register end device
  1. You should now be able to see the device on the TTN console after you fully register your device, as shown in Figure 44.
NOTE

  • The AppEUI, DevEUI, and AppKey are the parameters that you will need to activate your LoRaWAN end-device via OTAA. The AppKey is hidden by default for security reasons, but you can easily show it by clicking the show button. You can also copy the parameters quickly using the copy button.

  • The three OTAA parameters on the TTN device console are MSB by default.

  • These parameters are always accessible on the device console page, as shown in Figure 36.

Figure 6059: OTAA device successfully registered to TTN
OTAA Configuration for TTN​

The RAK3172 evaluation board can be configured using WisToolBox to do the OTAA configuration. WisToolBox is a software tool that supports RAK3172 module. It automatically detects RAK3172 evaluation board once connected to PC. Below are the options in WisToolBox that the OTAA configuration can be done.

OTAA Configuration for TTN via WisToolBox UI​

The RAK3172 should have correct OTAA credentials to connect to TTN. This can be done using WisToolBox UI. Below are the steps on setting up your RAK3172 using WisToolBox.

  1. Connect your RAK3172 with your chosen WisBlock base board to the PC via USB cable and open the WisToolBox application.

  2. Click CONNECT DEVICE button to launch the WisToolBox Dashboard.

Figure 6060: CONNECT DEVICE
  1. Then select your target port where your RAK3172 is connected. Once recognized, click CONNECT as shown in Figure 47.
Figure 6061: Setting up your device
Figure 6062: Setting up your device
  1. Once done, RAK3172 will appear in the dashboard then select it.
Figure 6063: Device seen from WisToolBox dashboard
  1. Then click PARAMETERS to do the configuration in your RAK3172.
Figure 6064: Setting up your device
  1. Click Global settings to set the network mode into LoRaWAN and join mode to OTAA. Make sure that the active region is using EU868 for this configuration. If you wish to work on other regional band, you can choose among active regions based on your location.
  • LoRa network mode: LoRaWAN
  • LoRaWAN join mode: OTAA
  • LoRaWAN region: EU868
Figure 6065: Global settings
Figure 6066: Global settings
  1. Then click LoRaWAN keys, ID, EUI to configure the Application EUI (AppEUI), Application key (AppKey) and Device EUI (DevEUI).
Figure 6067: LoRaWAN keys, ID, EUI
Figure 6068: Setting up your device
  1. Then go back to console where your RAK3172 End device is created previously. Then copy all the credentials from there. Those will be the ones to be used also in the WisToolBox dashboard. Once encoded into the dashboard, click APPLY COMMAND to update your device as shown in Figure 61.
NOTE
  • The AppEUI, DevEUI, and AppKey are hidden in this section as these are unique from a specific device.
Figure 6069: Your created OTAA device from your console
  • For Application EUI (AppEUI)
Figure 6070: Copying the AppEUI credential from TTN to WisToolBox
Figure 6071: Copying the AppEUI credential from TTN to WisToolBox
  • For Application key (AppKey)
Figure 6072: Copying the AppKey credential from TTN to WisToolBox
Figure 6073: Copying the AppKey credential from TTN to WisToolBox
  • For Device EUI (DevEUI)
Figure 6074: Copying the DevEUI credential from TTN to WisToolBox
Figure 6075: Copying the DevEUI credential from TTN to WisToolBox
  • WisToolBox Dashboard
Figure 6076: Used credentials from your console in WisToolBox dashboard
  1. Once done, you will see the summary of commands that is applied to your device. Then click CLOSE.
Figure 6077: Summary of commands
  1. Now you will see it returns back to the dashboard with updated credentials of your device.
Figure 6078: Successfully configured OTAA device via WisToolBox dashboard
  1. After your device's credentials update, it can now join the network. To do this, you need to go to Data on LoRa network under PARAMETERS. Then click the JOIN NETWORK under LoRaWAN join settings. After a few seconds, it will notify you that your OTAA device already joined the TTN server. You can also to your TTN console if your device has successfully joined the TTN.
Figure 6079: Joining mode of your OTAA device
Figure 6080: OTAA device successfully joined the TTN server
Figure 6081: OTAA device successfully joined the TTN server
OTAA Configuration for TTN via WisToolBox Console​

Here's another way of OTAA configuration using WisToolBox Console. Below are the steps on setting up your RAK3172 using WisToolBox Console.

  1. Connect your RAK3172 with your chosen WisBlock base board to the PC via USB cable and open the WisToolBox application.

  2. Click CONNECT DEVICE button to launch the WisToolBox Dashboard.

Figure 6082: CONNECT DEVICE
  1. Then select your target port where your RAK3172 is connected. Once recognized, click CONNECT as shown in Figure 69.
Figure 6083: Setting up your device
Figure 6084: Setting up your device
  1. Once done, RAK3172 will appear in the dashboard then select it.
Figure 6085: Device seen from WisToolBox dashboard
  1. Then click ADVANCED.
Figure 6086: Setting up your device
  1. Once done, click OPEN CONSOLE to do the configuration.
Figure 6087: OPEN CONSOLE
Figure 6088: Opening the Console terminal of WisToolBox
Figure 6089: Opening the Console terminal of WisToolBox
  1. To start the configuration, type ATE so you can echo the commands you input during your configuration. Then press Enter.

It is recommended to start by testing the console and verify that the current configuration is working by sending these two AT commands:

AT
ATE

ATE is useful for tracking the commands and troubleshooting.

You will receive OK when you input the two commands. After setting ATE, you can now see all the commands you input together with the replies.

NOTE

If there is no OK or any reply, check if the device is powered correctly. If you are getting power from a USB port, ensure that you have a good USB cable.

Figure 6090: Setting up your Console
Figure 6091: Setting up your Console
Figure 6092: Setting up your Console
  1. Then configure the LoRaWAN join mode to OTAA. You can check what parameter you will input by typing AT+NJM? then Enter into the console terminal. For OTAA, you should input AT+NJM=1 then press Enter as shown in Figure 80.
Figure 6093: Setting up your Console
Figure 6094: Setting up your Console
Figure 6095: Setting up your Console
  1. Once done, set-up your LoRaWAN region to EU868. You can check what parameter you will input by typing AT+BAND? then Enter into the console terminal. For EU868, you should input AT+BAND=4 then press Enter. If you wish to work on other regional band, you may check the list of band parameter options below.

Set the frequency/region to EU868.

AT+BAND=4
NOTE

Depending on the Regional Band you selected, you might need to configure the sub-band of your RAK3172 to match the gateway and LoRaWAN network server. This is especially important for Regional Bands like US915, AU915, and CN470.

To configure the masking of channels for the sub-bands, you can use the AT+MASK command that can be found on the AT Command Manual.

To illustrate, you can use sub-band 2 by sending the command AT+MASK=0002.

List of band parameter options

CodeRegional Band
0EU433
1CN470
2RU864
3IN865
4EU868
5US915
6AU915
7KR920
8AS923-1
9AS923-2
10AS923-3
11AS923-4
Figure 6096: Setting up your Console
Figure 6097: Setting up your Console
Figure 6098: Setting up your Console
  1. Then next to this will be updating the OTAA credentials of your device. First to this will be the Application EUI (AppEUI). Go back to your console where your RAK3172 End device was created to copy the AppEUI credential then paste it to the WisToolBox Console then press Enter.
Figure 6099: Your created OTAA device from your TTN console
Figure 6100: Setting up your Console
Figure 6101: Setting up your Console
Figure 6102: Setting up your Console
Figure 6103: Copying the AppEUI credential from TTN to WisToolBox
Figure 6104: Setting up your Console
  1. Once done, do the same procedure to Application key (AppKey) and Device EUI (DevEUI).
  • For Application key (AppKey)
Figure 6105: Setting up your Console
Figure 6106: Setting up your Console
Figure 6107: Setting up your Console
Figure 6108: Copying the AppKey credential from TTN to WisToolBox
Figure 6109: Setting up your Console
  • For Device EUI (DevEUI)
Figure 6110: Setting up your Console
Figure 6111: Setting up your Console
Figure 6112: Copying the DevEUI credential from TTN to WisToolBox
Figure 6113: Setting up your Console
  1. Once done, click Dashboard to check the updated credentials of your OTAA device. Click PARAMETERS to open the Global Settings and LoRaWAN keys, ID, EUI and check whether these portions are updated.
Figure 6114: Setting up your Console
Figure 6115: Setting up your Console
Figure 6116: PARAMETERS
Figure 6117: Global settings and LoRaWAN keys, ID, EUI
Figure 6118: Global settings and LoRaWAN keys, ID, EUI details

  1. Now you have a configured OTAA device using WisToolBox Console. You can now join the network using the WisToolBox console.

  2. To do this, you need to go again to WisToolBox console and type AT+JOIN. Then edit it to AT+JOIN=1 then press Enter to join the network.

NOTE

AT+JOIN command parameters are optional. You can configure the settings for auto-join, reattempt interval, and the number of join attempts if your application needs it. If not configured, it will use the default parameter values.

AT+JOIN and AT+JOIN=1 also share the common functionality of trying to join the network.

Join command format: AT+JOIN=w:x:y:z

ParameterDescription
wJoin command - 1: joining, 0: stop joining.
xAuto-join config - 1: auto-join on power-up, 0: no auto-join
yReattempt interval in seconds (7-255) - 8 is the default.
zNumber of join attempts (0-255) - 0 is default.

After 5 or 6 seconds, if the request is successfully received by a LoRa gateway, you should see +EVT:JOINED status reply, as shown in the figure below:

NOTE

If the OTAA device failed to join, you need to check if your device is within reach of a working LoRaWAN gateway that is configured to connect to TTN. It is also important to check that all your OTAA parameters (DEVEUI, APPEUI, and APPKEY) are correct using the AT+DEVEUI=?, AT+APPEUI=?, and AT+APPKEY=? commands. Lastly, ensure that the antenna of your device is properly connected.

After checking all the things above, try to join again.

Figure 6119: Joining mode using WisToolBox Console
Figure 6120: Joining mode using WisToolBox Console
Figure 6121: Joining mode using WisToolBox Console
Figure 6122: Joining mode using WisToolBox Console
Figure 6123: OTAA device successfully joined the network
Figure 6124: OTAA device successfully joined the network
  1. With the end-device properly joined the TTN, you can now try to send some payload after a successful join. Send command format: AT+SEND=<port>:<payload>
AT+SEND=2:12345678
Figure 6125: OTAA device sending payload to the network
Figure 6126: OTAA device sending payload to the network
Figure 6127: OTAA device sending payload to the network
Figure 6128: OTAA device sending payload to the network
  1. You can see the data sent by the RAK3172 evaluation board on the TTN device console Live data section. Also, the Last seen info should be a few seconds or minutes ago.
Figure 6129: OTAA Test Sample Data Sent Viewed in TTN
TTN ABP Device Registration​
  1. To register an ABP device, go to your application console and select the application where you want your device to be added. Then click + Register end device, as shown in Figure 115.
Figure 6130: Adding ABP Device
  1. To register the board, click the Enter end device specifics manually.
Figure 6131: Enter end device specifics manually
  1. Next step is to set up Frequency plan, compatible LoRaWAN version, and Regional Parameters version supported.
Figure 6132: Setting up for your device
Figure 6133: Setting up for your device
Figure 6134: Setting up for your device
  1. Then click Show advanced activation, LoRaWAN class and cluster settings. Configure the activation mode by selecting Activation by personalization (ABP) and Additional LoRaWAN class capabilities to class A only.
Figure 6135: Setting up for your device
Figure 6136: Setting up for your device
  1. Once done, provide the DevEUI credentials of your device into the DevEUI portion. This will automatically generate the specific End device ID of your board. Then click Generate under Device address, AppSKey and NwkSKey under Provisioning information section. Then click Register end device.
NOTE
  • The DevEUI, Device address, AppSKey, and NwkSKey are hidden in this section as these are unique from a specific device. The DevEUI credential is unique to every RAK3172 device. Also, you should generate your own Device address, AppSKey, and NwkSKey credentials for your specific device and application.
Figure 6137: Setting up for your device
Figure 6138: Setting up for your device
Figure 6139: Setting up for your device
Figure 6140: Setting up for your device
Figure 6141: Setting up for your device
Figure 6142: Register end device
  1. You should now be able to see the device on the TTN console after you fully register your device, as shown in Figure 128.
Figure 6143: ABP device successfully registered to TTN
ABP Configuration for TTN​

The RAK3172 evaluation board can be configured using WisToolBox to do the ABP configuration. WisToolBox is a software tool that supports RAK3172 module. It automatically detects RAK3172 evaluation board once connected to PC. Below are the options in WisToolBox that the ABP configuration can be done.

ABP Configuration for TTN via WisToolBox UI​

The RAK3172 should have correct ABP credentials to connect to TTN. This can be done using WisToolBox. Below are the steps on setting up your RAK3172 using WisToolBox.

  1. Connect your RAK3172 with your chosen WisBlock base board to the PC via USB cable and open the WisToolBox application.

  2. Click CONNECT DEVICE button to launch the WisToolBox Dashboard.

Figure 6144: CONNECT DEVICE
  1. Then select your target port where your RAK3172 is connected. Once recognized, click CONNECT as shown in Figure 131.
Figure 6145: Setting up your device
Figure 6146: Setting up your device
  1. Once done, RAK3172 will appear in the dashboard then select it.
Figure 6147: Device seen from WisToolBox dashboard
  1. Then click PARAMETERS to do the configuration in your RAK3172.
NOTE
  • The AppSKey, Device address, and NwkSKey are hidden in this section as these are unique from a specific device.
Figure 6148: Setting up your device
  1. Click Global settings to set the network mode into LoRaWAN and join mode to ABP. Make sure that the active region is using EU868 for this configuration. If you wish to work on other regional band, you can choose among active regions based on your location.
  • LoRa network mode: LoRaWAN
  • LoRaWAN join mode: ABP
  • LoRaWAN region: EU868
Figure 6149: Global settings
Figure 6150: Global settings
  1. Then click LoRaWAN keys, ID, EUI to configure the Application session key (AppSKey), Device address and Network session key (NwkSKey).
Figure 6151: LoRaWAN keys, ID, EUI
Figure 6152: Setting up your device
  1. Then go back to console where your RAK3172 End device is created previously. Then copy all the credentials from there. Those will be the ones to be used also in the WisToolBox dashboard. Once encoded into the dashboard, click APPLY COMMANDS to update your device as shown in Figure 145.
NOTE
  • The AppSKey, Device address, and NwkSKey are hidden in this section as these are unique from a specific device.
Figure 6153: Your created ABP device from your console
  • For Application session key (AppSKey)
Figure 6154: Copying the AppSKey credential from TTN to WisToolBox
Figure 6155: Copying the AppSKey credential from TTN to WisToolBox
  • For Device address
Figure 6156: Copying the Device address credential from TTN to WisToolBox
Figure 6157: Copying the Device address credential from TTN to WisToolBox
  • For Network session key (NwkSKey)
Figure 6158: Copying the NwkSKey credential from TTN to WisToolBox
Figure 6159: Copying the NwkSKey credential from TTN to WisToolBox
  • WisToolBox Dashboard
Figure 6160: Used credentials from your console in WisToolBox dashboard
  1. Once done, you will see the summary of commands that is applied to your device. Then click CLOSE.
Figure 6161: Summary of commands
  1. Now you will see it returns back to the dashboard with updated credentials of your device.
Figure 6162: Successfully configured ABP device via WisToolBox dashboard
ABP Configuration for TTN via WisToolBox Console​

Here's another way of ABP configuration using WisToolBox Console. Below are the steps on setting up your RAK3172 using WisToolBox Console.

  1. Connect your RAK3172 with your chosen WisBlock base board to the PC via USB cable and open the WisToolBox application.

  2. Click CONNECT DEVICE button to launch the WisToolBox Dashboard.

Figure 6163: CONNECT DEVICE
  1. Then select your target port where your RAK3172 is connected. Once recognized, click CONNECT as shown in Figure 150.
Figure 6164: Setting up your device
Figure 6165: Setting up your device
  1. Once done, RAK3172 will appear in the dashboard then select it.
Figure 6166: Device seen from WisToolBox dashboard
  1. Then click ADVANCED.
Figure 6167: Setting up your device
  1. Once done, click OPEN CONSOLE to do the configuration.
Figure 6168: OPEN CONSOLE
Figure 6169: Opening the Console terminal of WisToolBox
Figure 6170: Opening the Console terminal of WisToolBox
  1. To start the configuration, type ATE so you can echo the commands you input during your configuration. Then press Enter.

It is recommended to start by testing the console and verify that the current configuration is working by sending these two AT commands:

AT
ATE

ATE is useful for tracking the commands and troubleshooting.

You will receive OK when you input the two commands. After setting ATE, you can now see all the commands you input together with the replies.

NOTE

If there is no OK or any reply, check if the device is powered correctly. If you are getting power from a USB port, ensure that you have a good USB cable.

Figure 6171: Setting up your Console
Figure 6172: Setting up your Console
Figure 6173: Setting up your Console
  1. Then configure the LoRaWAN join mode to ABP. You can check what parameter you will input by typing AT+NJM? then Enter into the console terminal. For ABP, you should input AT+NJM=0 then press Enter as shown in Figure 161.
Figure 6174: Setting up your Console
Figure 6175: Setting up your Console
Figure 6176: Setting up your Console
  1. Once done, set-up your LoRaWAN region to EU868. You can check what parameter you will input by typing AT+BAND? then Enter into the console terminal. For EU868, you should input AT+BAND=4 then press Enter. If you wish to work on other regional band, you may check the list of band parameter options below.

Set the frequency/region to EU868.

AT+BAND=4
NOTE

Depending on the Regional Band you selected, you might need to configure the sub-band of your RAK3172 to match the gateway and LoRaWAN network server. This is especially important for Regional Bands like US915, AU915, and CN470.

To configure the masking of channels for the sub-bands, you can use the AT+MASK command that can be found on the AT Command Manual.

To illustrate, you can use sub-band 2 by sending the command AT+MASK=0002.

List of band parameter options

CodeRegional Band
0EU433
1CN470
2RU864
3IN865
4EU868
5US915
6AU915
7KR920
8AS923-1
9AS923-2
10AS923-3
11AS923-4
Figure 6177: Setting up your Console
Figure 6178: Setting up your Console
Figure 6179: Setting up your Console
  1. Then next to this will be updating the ABP credentials of your device. First to this will be the Application session key (AppSKey). Go back to your console where your RAK3172 End device was created to copy the AppSKey credential then paste it to the WisToolBox Console then press Enter.
Figure 6180: Your created ABP device from your TTN console
Figure 6181: Setting up your Console
Figure 6182: Setting up your Console
Figure 6183: Setting up your Console
Figure 6184: Copying the AppSKey credential from TTN to WisToolBox
Figure 6185: Setting up your Console
  1. Once done, do the same procedure to Device address and Network session key (NwkSKey).
  • For Device address
Figure 6186: Setting up your Console
Figure 6187: Setting up your Console
Figure 6188: Setting up your Console
Figure 6189: Copying the Device address credential from TTN to WisToolBox
Figure 6190: Setting up your Console
  • For Network session key (NwkSKey)
Figure 6191: Setting up your Console
Figure 6192: Setting up your Console
Figure 6193: Setting up your Console
Figure 6194: Copying the NwkSKey credential from TTN to WisToolBox
Figure 6195: Setting up your Console
  1. Once done, click Dashboard to check the updated credentials of your ABP device. Click PARAMETERS to open the Global Settings and LoRaWAN keys, ID, EUI and check whether these portions are updated.
Figure 6196: Setting up your Console
Figure 6197: Setting up your Console
Figure 6198: PARAMETERS
Figure 6199: Global settings and LoRaWAN keys, ID, EUI
Figure 6200: Global settings and LoRaWAN keys, ID, EUI details

  1. Now you have a configured ABP device using WisToolBox Console. ABP-configured devices are directly tied to network once done with the above procedures so joining procedure is not needed.

  2. Now you can try sending payload to TTN. Open again the terminal console of WisToolBox to send some payload using it. Send command format: AT+SEND=<port>:<payload>

AT+SEND=2:12345678
Figure 6201: ABP device sending payload to the network
Figure 6202: ABP device sending payload to the network
Figure 6203: ABP device sending payload to the network
Figure 6204: ABP device sending payload to the network
  1. You can see the data sent by the RAK3172 evaluation board on the TTN device console Live data section. Also, the Last seen info should be a few seconds or minutes ago.
Figure 6205: ABP Test Sample Data Sent Viewed in TTN
Connecting with ChirpStack​

This section shows how to connect the RAK3172 Evaluation Board to the ChirpStack platform.

Figure 6206: RAK3172 Evaluation board in the Context of the ChirpStack Platform

The ChirpStack or previously known as the LoRaServer project provides open-source components for building LoRaWAN networks. Like the case of TTN, the RAK3172 Evaluation Board is located in the periphery and will transmit the data to the backend servers through a LoRaWAN gateway. Learn more about ChirpStack.

NOTE

It is assumed that you are using RAK Gateway and its built-in ChirpStack. Also, the gateway with the ChirpStack must be configured successfully. For further information, check the RAK documents for more details.

  • In summary, these are the requirements:

    1. Have ChirpStack online gateway, the frequency band of the nodes should be consistent with the frequency band of the gateway in use.
    2. The RAK Serial Port Tool provided by RAK
    3. RAK3172 Evaluation Board
NOTE

The frequency band used in the demonstration is EU868. Use a high-frequency version of RAK3172. The product number should be “RAK3172 (H)”.

Create a New Application​

  1. Log in to the ChirpStack server using your account and password.

  2. Go to the Application section, as shown in Figure 192.

Figure 6207: Application Section
  1. By default, you should create a new application, although you can reuse the existing ones. For this setup, create a new Application by clicking on the “CREATE” button, and filling the required parameters, as shown in Figure 193 and Figure 194.
Figure 6208: Creating a New Application
  • For this setup, create an Application named “rak_node_test”.

ChirpStack LoraServer supports multiple system configurations, with only one by default.

  • Service profile: The field is to select the system profile.
  • Payload codec: It is the parsing method for selecting load data such as parsing LPP format data.
Figure 6209: Filling Parameters of an Application
Register a New Device

  1. Choose the Application created in the previous step, then select the DEVICES tab, as shown in Figure 195 and Figure 196.

  2. Once done, click “+ CREATE”.

Figure 6210: List of Applications Created
Figure 6211: Device Tab of an Application
  1. Once inside of the DEVICE tab, create a new device (LoRaWAN node) by clicking on the “+ CREATE” button.
Figure 6212: Add a New Device
Figure 6213: Chirpstack Adding Node into the RAK3172 Module
  1. Once the node is created, fill in the necessary data. You can generate a Device EUI automatically by clicking the following icon, or you can write a correct Device EUI in the edit box.

Fill in the parameters requested:

  • Device name and Device description: These are descriptive texts about your device.

  • Device EUI: This interface allows you to generate a Device EUI automatically by clicking the generate icon. You can also add a specific Device EUI directly in the form.

  • Device Profile:

    • If you want to join in OTAA mode, select “DeviceProfile_OTAA”.
    • If you want to join in ABP mode, select “DeviceProfile_ABP”.
NOTE

  • Device profiles DeviceProfile_OTAA and DeviceProfile_ABP are only available if you are using the built-in Chirpstack LoRaWAN Server of RAK Gateways.

  • If you have your own Chirpstack installation, you can set up the device profile with LoRaWAN MAC version 1.0.3 and LoRaWAN Regional Parameters revision B to make it compatible with RAK3172.

Figure 6214: Generate a New Device EUI
Chirpstack OTAA Device Registration​
  1. If you have selected “DeviceProfile_OTAA”, as shown in Figure 200, then after the device is created, an Application Key must be also created for this device.
Figure 6215: Chirpstack OTAA Activation
  1. A previously created Application Key can be entered here, or a new one can be generated automatically by clicking the icon highlighted in red in Figure 201:
Figure 6216: Chirpstack OTAA Set Application Keys
  1. Once the Application Key is added to the form, the process can be finalized by clicking on the “SET DEVICE-KEYS” button.
  • As shown in Figure 202, a new device should be listed in the DEVICES tab. The most important parameters, such as the Device EUI are shown in the summary.
Figure 6217: Chirpstack OTAA List of Device in the Device Tab
  1. To end the process, it is a good practice to review that the Application Key is properly associated with this device. The Application Key can be verified in the KEYS(OTAA) tab, as shown in Figure 203.
Figure 6218: Application Key Associated with the New Device
NOTE

Standard OTAA mode requires the Device EUI, Application Key, and Application EUI, but in the ChirpStack’s implementation, only the Device EUI and the Application Key are mandatory. The Application EUI is not required and not recorded in the Application tab. Nevertheless, you can reuse the Device EUI as the Application EUI during the configuration on the side of the node.

OTAA Configuration for Chirpstack​

The RAK3172 Evaluation Board supports a series of AT commands to configure its internal parameters and control the functionalities of the board.

  1. To set up the RAK3172 Evaluation Board to join the Chirpstack using OTAA, start by connecting the RAK3172 Evaluation Board to the Computer (see Figure 21) and open the RAK Serial Port Tool. Select the right COM port and set the baud rate to 115200.

It is recommended to start by testing the serial communication and verify that the current configuration is working by sending these two AT commands:

AT
ATE

ATE will echo the commands you input to the board which is useful for tracking the commands and troubleshooting.

You will receive OK when you input the two commands. After setting ATE, you can now see all the commands you input together with the replies. Try again AT and you should see it on the terminal followed by OK, as shown in Figure 204.

NOTE

If you haven't received an OK or any reply, you need to check if the wiring of your UART lines is correct and if the baud is correctly configured to 115200. Also, you can check if the device is powered correctly. If you are getting power from a USB port, ensure that you have a good USB cable.

Figure 6219: at+version command response
  1. The next step is to configure the OTAA LoRaWAN parameters in RAK3172:
  • LoRa work mode: LoRaWAN
  • LoRaWAN join mode: OTAA
  • LoRaWAN class: Class A
  • LoRaWAN region: EU868

Set the work mode to LoRaWAN.

AT+NWM=1

Set the LoRaWAN activation to OTAA.

AT+NJM=1

Set the LoRaWAN class to Class A.

AT+CLASS=A

Set the frequency/region to EU868.

AT+BAND=4
NOTE

  • Depending on the Regional Band you selected, you might need to configure the sub-band of your RAK3172 to match the gateway and LoRaWAN network server. This is especially important on Regional Bands like US915, AU915, and CN470.

  • To configure the masking of channels for the sub-bands, you can use the AT+MASK command that can be found on the AT Command Manual.

  • To illustrate, you can use sub-band 2 by sending the command AT+MASK=0002.

List of band parameter options

CodeRegional Band
0EU433
1CN470
2RU864
3IN865
4EU868
5US915
6AU915
7KR920
8AS923-1
9AS923-2
10AS923-3
11AS923-4
Figure 6220: Configuring LoRa Parameters
  1. After the configuration of the LoRaWAN parameters, the next step is to set up the DevEUI and AppKey. You need the use the values from the Chirpstack device console.
NOTE

The Application EUI parameter is not required in the ChirpStack platform; therefore, it is possible to use the same id as the Device EUI.

  • Device EUI: 5E9D1E0857CF25F1
  • Application EUI: 5E9D1E0857CF25F1
  • Application Key: F921D50CD7D02EE3C5E6142154F274B2

Set the Device EUI.

AT+DEVEUI=5E9D1E0857CF25F1

Set the Application EUI.

AT+APPEUI=5E9D1E0857CF25F1

Set the Application Key.

AT+APPKEY=F921D50CD7D02EE3C5E6142154F274B2
Figure 6221: Configuring LoRa Parameters
  1. After EUI and key configuration, the device can now join the network and send some payload.
AT+JOIN=1:0:10:8

Join command format: AT+JOIN=w:x:y:z

ParameterDescription
wJoin command - 1: joining, 0: stop joining.
xAuto-join config - 1: auto-join on powerup, 0: no auto-join
yReattempt interval in seconds (7-255) - 8 is the default.
zNumber of join attempts (0-255) - 0 is default.
  1. After 5 or 6 seconds, if the request is successfully received by a LoRaWAN gateway, then you should see JOINED status reply.
NOTE

  • If the OTAA device join failed, you need to check if your device is within reach of a working LoRaWAN gateway that is configured to connect to Chirpstack. It is also important to check that all your OTAA parameters (DEVEUI and APPKEY) are correct by using AT+DEVEUI=? and AT+APPKEY=? commands. Lastly, ensure that the antenna of your device is properly connected.

  • After checking all the things above, try to join again.

  1. With the end-device properly activated, you can now try to send some payload after successful join.
AT+SEND=2:12345678

Send command format: AT+SEND=<port>:<payload>

Figure 6222: OTAA Test Sample Data Sent via RAK Serial Port Tool
  1. On the ChirpStack platform, you should see the join and uplink messages in the LORAWAN FRAMES tab, as shown in Figure 208. By convention, messages sent from nodes to gateways are considered as Uplinks while messages sent by gateways to nodes are considered as Downlinks.
Figure 6223: Chirpstack Data Received Preview
Chirpstack ABP Device Registration​
  1. During the registration of a new device, if you select “DeviceProfile_ABP”, as shown in Figure 209, then the ChirpStack platform will assume that this device will join the LoRaWAN network using the ABP mode.
NOTE

Check “Disable counting frame verification”. During the test, when the board is restarted, the frame counting number will be also be restarted from zero. This would cause a synchronization problem with the ChirpStack server treating it as a replay attack. For the testing purpose, it is safe to disable this feature, but remember to activate it in a production environment.

Figure 6224: ChirpStack Console, Configuring a Device
  1. After selecting the ABP mode, the following parameters appear in the Activation tab:

Then, you can see that there are some parameters for ABP in the “ACTIVATION” item:

  • Device address
  • Network Session Key
  • Application Session Key
Figure 6225: Chirpstack ABP Activation Parameters Needed
  1. The parameters can be generated as random numbers by the platform or can be set with user values. Once these parameters are filled in properly, the process is completed by clicking on the “ACTIVATE DEVICE” button.
ABP Configuration for Chirpstack​
  1. To set up the RAK3172 Evaluation Board to join the Chirpstack using ABP, start by connecting the RAK3172 Evaluation Board to the Computer (see Figure 21) and open the RAK Serial Port Tool. Select the right COM port and set the baud rate to 115200.

It is recommended to start by testing the serial communication and verify that the current configuration is working by sending these two AT commands:

AT
ATE

ATE will echo the commands you input to the board which is useful for tracking the commands and troubleshooting.

You will receive OK when you input the two commands. After setting ATE, you can now see all the commands you input together with the replies. Try again AT and you should see it on the terminal followed by OK, as shown in Figure 211.

NOTE

If you haven't received an OK or any reply, you need to check if the wiring of your UART lines is correct and if the baud is correctly configured to 115200. Also, you can check if the device is powered correctly. If you are getting power from a USB port, ensure that you have a good USB cable.

Figure 6226: at+version command response
  1. The next step is to configure the ABP LoRaWAN parameters in RAK3172:
  • LoRa work mode: LoRaWAN
  • LoRaWAN join mode: ABP
  • LoRaWAN class: Class A
  • LoRaWAN region: EU868

Set the work mode to LoRaWAN. It can be set to P2P as well but by default, the device is in LoRaWAN mode.

AT+NWM=1

Set the LoRaWAN activation to ABP.

AT+NJM=0

Set the LoRaWAN class to Class A.

AT+CLASS=A

Set the frequency/region to EU868.

AT+BAND=4
NOTE

Depending on the Regional Band you selected, you might need to configure the sub-band of your RAK3172 to match the gateway and LoRaWAN network server. This is especially important on Regional Bands like US915, AU915, and CN470.

To configure the masking of channels for the sub-bands, you can use the AT+MASK command that can be found on the AT Command Manual.

To illustrate, you can use sub-band 2 by sending the command AT+MASK=0002.

List of band parameter options

CodeRegional Band
0EU433
1CN470
2RU864
3IN865
4EU868
5US915
6AU915
7KR920
8AS923-1
9AS923-2
10AS923-3
11AS923-4
Figure 6227: Configuring LoRa Parameters
  1. After the configuration of the LoRaWAN parameters, the next step is to set up the device address and session keys. You need the use the values from the TTN device console.
  • Device Address: 26011AF9
  • Application Session Key: 4D42EC5CAF97F03D833CDAf5003F69E1
  • Network Session Key: C280CB8D1DF688BC18601A97025C5488

Set the Device Address.

AT+DEVADDR=26011AF9

Set the Application Session Key.

AT+APPSKEY=4D42EC5CAF97F03D833CDAf5003F69E1

Set the Network Session Key.

AT+NWKSKEY=C280CB8D1DF688BC18601A97025C5488
Figure 6228: Configuring LoRa Parameters
  1. After EUI and keys configuration, the device can now join the network and send some payload.
AT+JOIN=1:0:10:8

Join command format: AT+JOIN=w:x:y:z

ParameterDescription
wJoin command - 1: joining, 0: stop joining.
xAuto-join config - 1: auto-join on power-up, 0: no auto-join
yReattempt interval in seconds (7-255) - 8 is the default.
zNumber of join attempts (0-255) - 0 is default.
  1. After 5 or 6 seconds, if the request was successfully received by a LoRaWAN gateway, then you should see JOINED status reply.

You can now try to send some payload after successful join.

AT+SEND=2:12341234

Send command format: AT+SEND=<port>:<payload>

Figure 6229: ABP Test Sample Data Sent via RAK Serial Port Tool

LoRa P2P Mode​

This section will show you how to set up and connect two RAK3172-E units to work in the LoRa P2P mode. The configuration of the RAK3172-E units is done by connecting the two modules to a general-purpose computer using a USB-UART converter. The setup of each RAK3172-E can be done separately, but testing the LoRa P2P mode will require having both units connected simultaneously. This could be done by having one computer with two USB ports or two computers with one USB port each.

It is recommended to start by testing the serial communication and verify the current configuration is working by sending these two AT commands:

AT
ATE

ATE will echo the commands you input to the module, which is useful for tracking the commands and troubleshooting.

You will receive OK when you input the two commands. After setting ATE, you can now see all the commands you input together with the replies.

Try again AT and you should see it on the terminal followed by OK.

Figure 6230: at+version command response
  1. On setting-up the RAK3172-E to work in LoRa P2P mode, you need to change the LoRa network work mode command on both RAK3172-E modules.
AT+NWM=0

AT+NWM parameter mode can be either 0=LoRa P2P or 1=LoRaWAN.

Figure 6231: P2P Mode
NOTE
  • The device will start automatically if you change modes from LoRaWAN to LoRa P2P and vice-versa.
  • You might need to input the ATE command again to ensure that your succeeding commands on P2P mode echo on the terminal.
  1. You need to input the P2P setup on both RAK3172-E modules. The parameters should be exactly the same on the two modules.
AT+P2P=868000000:7:125:0:10:14

For this P2P setup, the LoRa parameters are the following:

  • Link frequency: 868000000 Hz
  • Spreading factor: 7
  • Bandwidth: 125 kHz
  • Coding Rate: 0 = 4/5
  • Preamble Length: 10
  • Power: 14 dBm
NOTE

Refer to the P2P Mode section of the AT command documentation to learn more about the definition of the parameters used and the individual commands if you want specific parameter changed.

Figure 6232: Configuring P2P in both RAK3172-E Module
  1. To set one module as the receiver (RX), you need to set the value of the P2P receive command.
NOTE

LoRa P2P default setting is Transmitter (TX) mode. This consumes lower power compared to Receiver (RX) mode where the radio is always listening for LoRa packets.

a. P2P LoRa RX configurable duration value is from 1 to 65533 ms. In this example, the device will listen and wait for LoRa P2P Packets for 30000 ms or 30 seconds. It will automatically disable RX mode and switch to TX mode after the timeout. If the device did not receive any packets within the time period, then the callback after timeout is +EVT:RXP2P RECEIVE TIMEOUT.

AT+PRECV=30000

b. If the AT+PRECV value is set to 65535, the device will listen to P2P LoRa packets without a timeout, but it will stop listening once a P2P LoRa packet is received. After done receiving the packets, it will disable RX mode and automatically switch to TX mode again.

AT+PRECV=65535

c. If the AT+PRECV value is set to 65534, the device will continuously listen to P2P LoRa packets without any timeout. The will continuously stay in RX mode until AT+PRECV is set to 0.

AT+PRECV=65534

d. If the AT+PRECV value is set to 0, the device will stop listening to P2P LoRa packets. It disables LoRa P2P RX mode and switch to TX mode.

AT+PRECV=0
  1. With one module configured as Transmitter (TX) and the other device will be the Receiver (RX), you can now try to send or transmit P2P payload data.
AT+PSEND= <payload>
NOTE
  • AT_PARAM_ERROR is returned when setting wrong or malformed value.
  • AT_BUSY_ERROR is returned if the device is still in RX mode and you try to send or reconfigure RX period. If the AT+PRECV command is set to 65534, you need to execute first AT+PRECV=0 to be able to configure again the TX and RX state and avoid AT_BUSY_ERROR.
  • <payload>: 2 ~ 500 digit length, must be an even number of digits and character 0-9, a-f, A-F only, representing 1 ~ 256 hexadecimal numbers. For example, if the payload is like 0x03, 0xAA, 0x32, therefore the AT command should be AT+PSEND = 03AA32.
Figure 6233: Configuring P2P in both RAK3172-E Module

Miscellaneous​

Upgrading the Firmware​

If you want to upgrade to the latest version firmware of the board, you can follow this section. The latest firmware can be found in the software section of RAK3172 Datasheet.

NOTE

What if the RAK3172 module stops responding to AT commands and firmware update?

You can recover your device by using the .hex file in the datasheet and uploading it using STM32CubeProgrammer. The guide on updating STM32 firmware using STM32CubeProgrammer can be found in the Learn section.

warning

Uploading the .hex file via STM32CubeProgrammer will erase all configured data on the device.

Firmware Upgrade Through USB​

Minimum Hardware and Software Requirements​

Refer to the table for the minimum hardware and software required to perform the firmware upgrade via USB.

Hardware/SoftwareRequirement
ComputerA Windows/Ubuntu/Mac computer
Firmware FileBin firmware file downloaded from the website
OthersA USB cable
Firmware Upgrade Procedure​

Execute the following procedure to upgrade the firmware in Device Firmware Upgrade (DFU) mode through the USB interface.

NOTE

RAK3172-E should automatically go to BOOT mode when the firmware is uploaded via RAK DFU Tool or WisToolBox.

If BOOT mode is not initiated, you can manually send AT+BOOT command to start bootloader mode.

  1. Download the latest application firmware of the RAK3172.

  2. Download the RAK Device Firmware Upgrade (DFU) tool.

  3. Connect the RAK3172 Evaluation Board with a computer through a USB cable. Refer to Figure 21.

  4. Open the Device Firmware Upgrade tool. Select the serial port and baud rate (115200) of the module and click the "Select Port" button.

NOTE

If your firmware upload always fail, check your current baudrate setting using AT+BAUD=? command and use that baud rate value in the RAK DFU Tool. You can also check if you selected the right COM port.

Figure 6234: Device Firmware Upgrade Tool
  1. Select the application firmware file of the module with the suffix ".bin".
Figure 6235: Select firmware
  1. Click the "Upgrade" button to upgrade the device. After the upgrade is complete, the RAK3372 will be ready to work with the new firmware.
Figure 6236: Firmware upgrading
Figure 6237: Upgrade successfull

Arduino Installation​

Go to the Arduino official website and download the Arduino IDE. You can see the multiple versions available for Windows, Linux, and Mac OS X. Choose the correct version of Arduino IDE and download it.

Figure 6238: Arduino IDE latest version

For Windows​

NOTE

For Windows 10 users: Do NOT install the Arduino IDE from the Microsoft App store. Install the original Arduino IDE from the Arduino official website instead, since the Arduino app from the Microsoft App Store has problems using third-party Board Support Packages.

  1. Install the Arduino IDE, which you just downloaded, on your Windows PC.

  2. Click I Agree then Next to proceed.

Figure 6239: Arduino setup license agreement
Figure 6240: Arduino setup installation options
  1. Click Install.
Figure 6241: Installing Arduino IDE
Figure 6242: Ongoing installation

After 100% progress, the Arduino IDE has been installed successfully.

Figure 6243: Successful installation

For Linux​

First, you need the check the compatibility with your system and choose between the 32-bit, 64-bit, and ARM versions of the Arduino IDE for Linux.

Installing via a tarball​

After downloading the correct Arduino version, open a terminal, then run ls to check the installation file on the download folder.

Figure 6244: Check the download folder

A tarball is a type of compressed folder, like a .zip file, commonly used to distribute software in Linux. To extract the files from the tarball, change the directory to where the downloaded tarball is, then run:

tar xvf arduino-version.xz

Figure 6245: Tarball extract command

When the tar command finishes, run ls again. A folder named arduino-version will be created.

Figure 6246: Arduino install folder created

Change the current directory and go to the newly created folder directory. There will be a file named install.sh in the folder. Execute sudo ./install.sh to install the Arduino IDE.

Figure 6247: Arduino install script running

The sudo command temporarily elevates privileges allowing the installer to complete sensitive tasks without logging in as the root user.

For Mac OS X​

In Mac OS X, the same as Linux, there is no installation process. It is just a process of decompression, then you can open Arduino IDE successfully.

Arduino IDE Parts Guide​

Figure 233 shows the five (5) parts of Arduino IDE.

Figure 6248: Arduino IDE
  1. IDE Option Menu

You can configure some general parameters such as the serial port, the board information, the libraries, the edit parameters, and so on.

  1. Operating Buttons

The operating buttons have five operations:

  • Verify/Compile the source code;
  • Upload the compiled code into WisBlock;
  • Open a New Arduino IDE window or existing application;
  • Save the current application.
Figure 6249: Operating buttons
  1. Code Area

You can edit the source code, which will be compiled and uploaded into WisBlock later in this area.

  1. State Area

  2. Output Message Area You can see the output message in this area, whether it's failure or success information.
