RAK10701-Plus Field Tester for LoRaWAN Datasheet

Overview

Description

The RAK10701-Plus LoRaWAN Field Tester is an advanced, all-in-one solution for comprehensive indoor and outdoor LoRaWAN network analysis. This powerful device offers real-time insights for both uplink and downlink signal quality (RSSI and SNR), packet loss rates and distance information from gateways using its built-in GPS/GNSS receiver, making it an indispensable tool for network deployment and optimization.

The device operates independently, allowing you to tag and label testing locations via a touch screen LCD and intuitive UI display. You can also configure different parameters (DR, frequency band, power) directly on the device without the need for external apps, making the Field Tester Plus a flexible tool for checking LoRaWAN coverage on site.

In addition, it integrates seamlessly with the WisGate OS2 Mapper Extension to perform backend calculations and analysis. As a bonus, it also supports data export in CSV format.

Product Features

Compatible with LoRaWAN 1.0.3 across multiple bands: RU864, IN865, EU868, US915, AU915, KR920, and AS923-1/2/3/4.
Supports TTN, ChirpStack, AWS IoT Core for LoRaWAN, and private networks using WisGateOS 2 built-in Network Server (no Internet required).
Real-time graphical display of RSSI and SNR for signal monitoring.
Proprietary packet loss calculation for accurate coverage evaluation.
Supports manual location labeling and structured CSV data export.
Powered by a 3200 mAh rechargeable battery (USB Type-C charging).
External LoRa antenna for improved performance.
OTAA activation and Class A device operation.
BLE support for wireless configuration and firmware upgrades via WisToolBox Mobile App.

Hardware Specifications

The hardware specification is categorized into five parts. It shows the interfacing of the tracker. It also covers the RF, antennas, electrical, environmental, and mechanical parameters that include the tabular data of the functionalities and standard values of the RAK10701-Plus Field Tester for LoRaWAN.

Interfaces

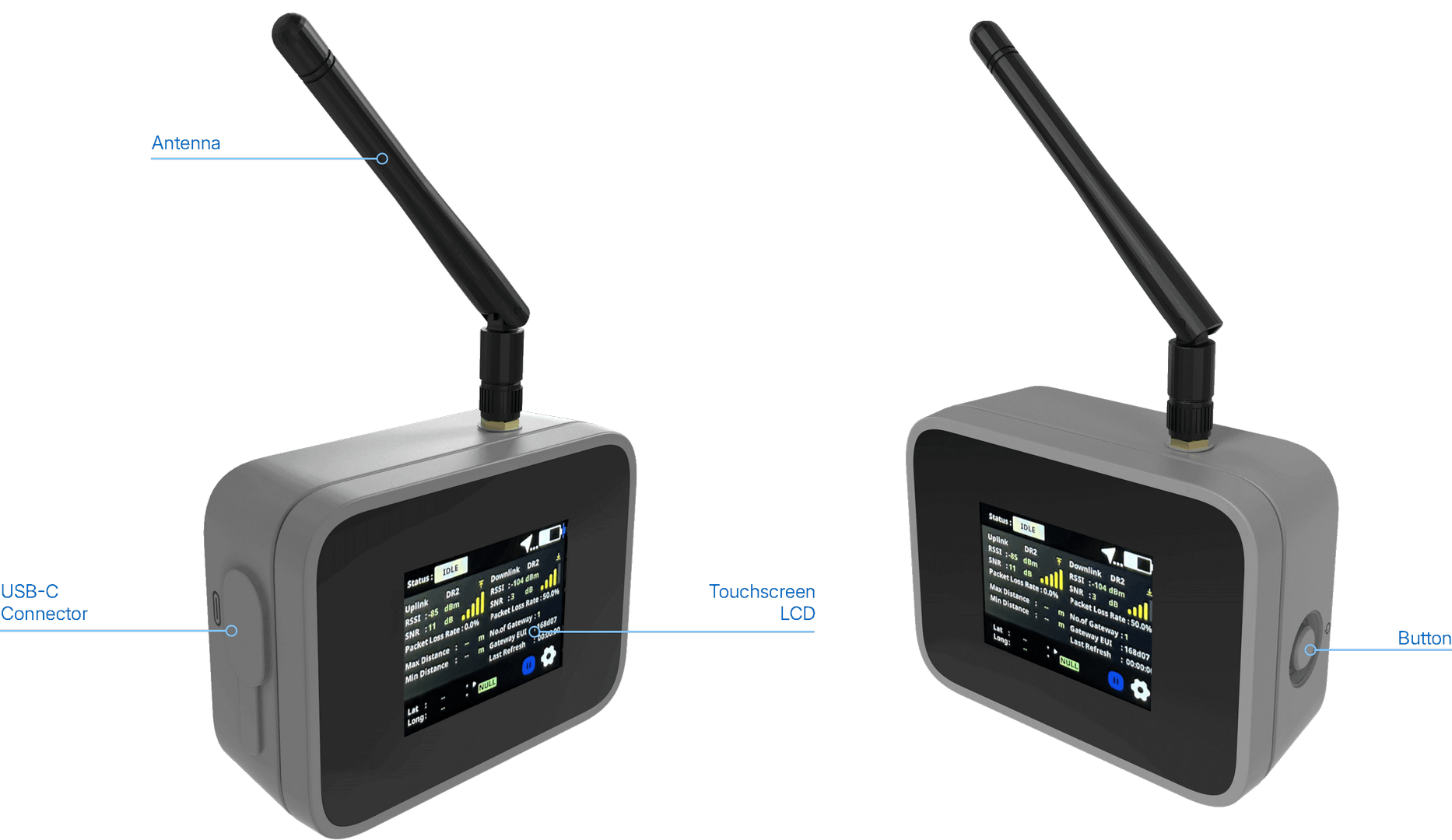

Figure 1: RAK10701-Plus Physical Interface

Interface	Description
Touchscreen LCD	Main user interaction via TFT touchscreen.
LoRa Antenna Port (RP-SMA)	External antenna connection; comes with 2.0 dBi and 2.3 dBi antennas.
Side Button	Power On/Off, Sleep/Wake, Force Uplink. - Turn ON: Hold the button for 5 seconds. - Turn OFF: Hold the button for 5 seconds. - Sleep/Wake Display: Short press the button to toggle the display. - Force Uplink: Double press the button to trigger an uplink.
USB-C Port	Battery charging and device configuration.

Main Display

The Field Tester Plus provides real-time network insights on its screen, allowing users to monitor signal conditions and track historical performance data at specific locations, making it an invaluable tool for field testing.

Figure 1: RAK10701-Plus Screen Interface

Main Display Sections Overview

Section	Name	Description
1	Device Status	Displays the current connection status of the Field Tester Plus with the LoRaWAN network. Possible states include: - Joining: Attempting to connect to the network. - Joined: Successfully connected to the network. - Sending: Actively sending uplink packets. - Failed: Failed to connect or send; check device registration and gateway coverage. - Idle: Device is not actively communicating. Additional Info: - Sent 4s ago: Time elapsed since last uplink. - Green text: Last uplink was successful. - Red text: Last uplink failed.
2	Battery Level	Displays the current battery percentage of the device. It helps monitor the battery status for timely recharging.
3	Uplink RF Parameters	Displays radio signal quality metrics from the device to the gateway: - RSSI (Received Signal Strength Indicator) - SNR (Signal-to-Noise Ratio) - Packet Loss (uplink packet success rate).
4	Downlink RF Parameters	Displays radio signal quality metrics from the gateway to the device via LinkCheck mode: - RSSI - SNR - Packet Loss (downlink packet success rate).
5	Gateway Distance (GPS required)	Shows the estimated distance to the nearest and farthest gateways based on GPS location: - Max Distance: Farthest gateway (minimum unit 250 meters). - Min Distance: Nearest gateway (minimum unit 250 meters). Note: GPS must be available for distance calculation.
6	Gateway Info	Displays the number of gateways that received the uplink. Gateway EUI: Shows part of the EUI (unique ID) of the nearest gateway to help identify it easily. Last Refresh: Time since the last successfully processed uplink packet.
7	GPS Location	Displays the real-time GPS coordinates of the device when outdoor signal is available. Shows empty if GPS signal is unavailable.
8	Label	Allows the user to tag and label the test location. - A test cycle (typically 50 packets) starts after labeling. - Labels are included in exported CSV reports for post-analysis.
9	Settings & Interval Control	Allows control over uplink sending behavior and basic parameter configuration: - Pause Icon: Start or stop automatic uplinks. - Gear Icon: Open settings page to configure device parameters. - Click RF metrics: View the latest 15 historical values in a graph for trend observation. Metrics must be in green to be clickable

Basic Operation

This table outlines the user interactions with the device's side button and touchscreen interface.

Action	Behavior
Single Press	Short press the side button to sleep/wake the screen.
Double Press	Double press the side button to force an uplink.
Long Press	Hold the side button to display the power-off option.
Touch Green Text	Tap the green text to view historical RF data for the selected metric.
Touch Settings	Tap to open settings and configure parameters or input labels.

RF Characteristics

LoRaWAN Operating Frequencies

The RAK10701-Plus Field Tester for LoRaWAN supports the regional bands shown in the table below. When purchasing this device, pay attention to specifying the correct variant for your region.

Region	Frequency Band	Field Tester Plus Frequency (MHz)
Russia	RU864	8xx MHz version
India	IN865	8xx MHz version
Europe	EU868	8xx MHz version
North America	US915	9xx MHz version
Canada	US915	9xx MHz version
Australia	AU915	9xx MHz version
Korea	KR920	9xx MHz version
Asia	AS923-1/2/3/4	9xx MHz version
