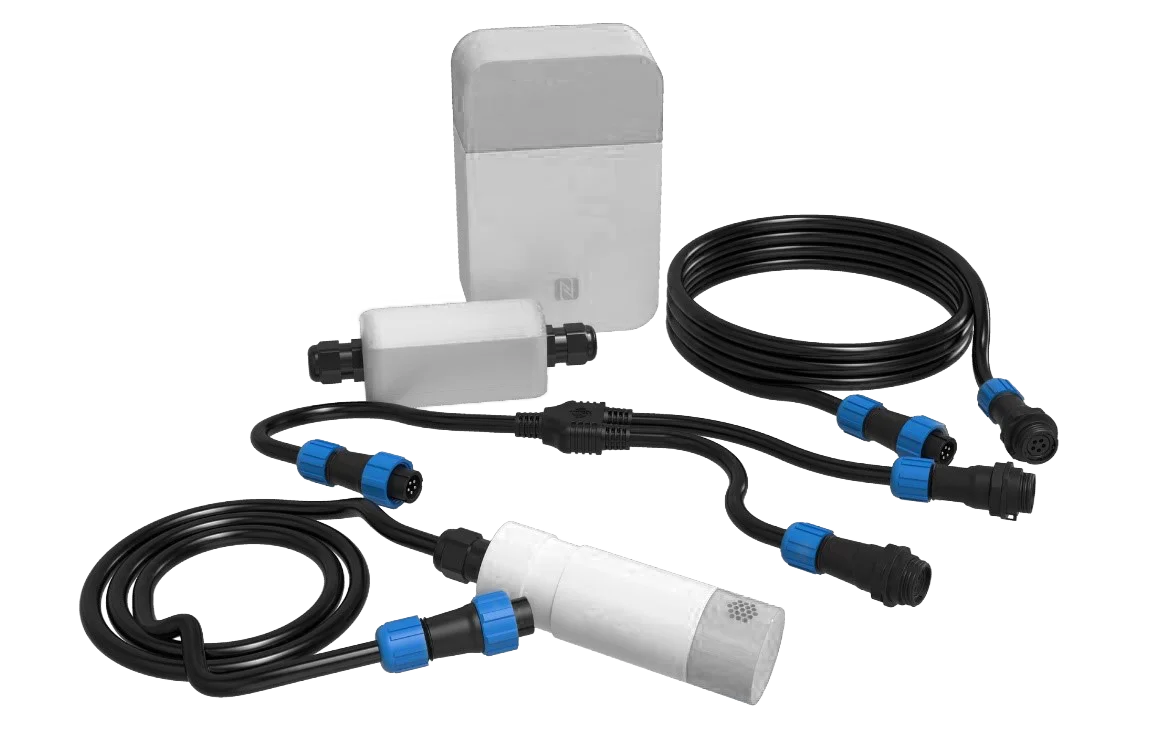

RAK2560 WisNode Sensor Probe Datasheet
Overview
Description
The Sensor Probe is an accessory for the Sensor Hub solution platform. It supports up to two WisBlock sensors in various combinations to provide the needed data.
The Sensor Probe could not be used as a standalone product. You need the RAK2560 WisNode Sensor Hub in order to use this probe.
Product Features
- Auto-identification of the sensor type
- One-wire protocol
- Waterproof (IP66-rated)
- Supports up to two (2) WisBlock sensor modules
Specifications
Overview
Dimensions
The Sensor Probe dimensions are 90 x 30 mm. The body has a cylindrical shape. There is one physical port for connection to the Sensor Hub with a 50 cm cable length. The Sensor Probe is IP66-rated, suitable for outdoor use, with GORE venting. The device is designed to meet the UL/EN60950-22 standard.
Figure 11504: RAK2560 WisNode Sensor Probe dimensions
Figure 11505: RAK2560 WisNode Sensor Probe venting positionBlock Diagram

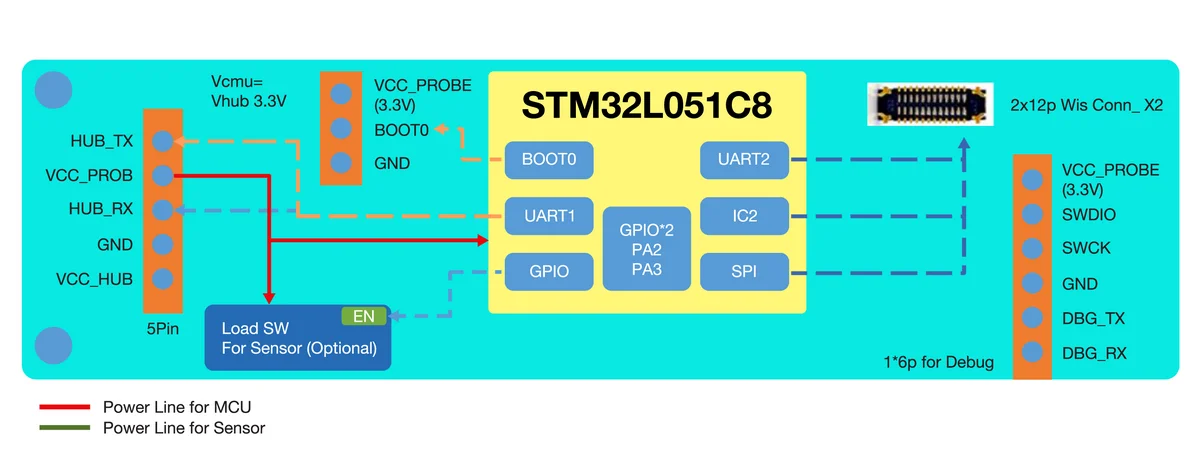

RAK2560's Sensor Probe uses MCU STM32L051C8 for a control center. It hosts up to two (2) WisBlock sensors.
Figure 11506: RAK2560 WisNode Sensor Probe block diagramHardware
The hardware specification is categorized into four (4) parts. It shows the pinouts of the Sensor Probe and their corresponding functions and diagram. It also covers the power supply and environmental characteristics that include the tabular data of the functionalities and standard values of the RAK2560 WisNode Sensor Probe.
Pin Definition

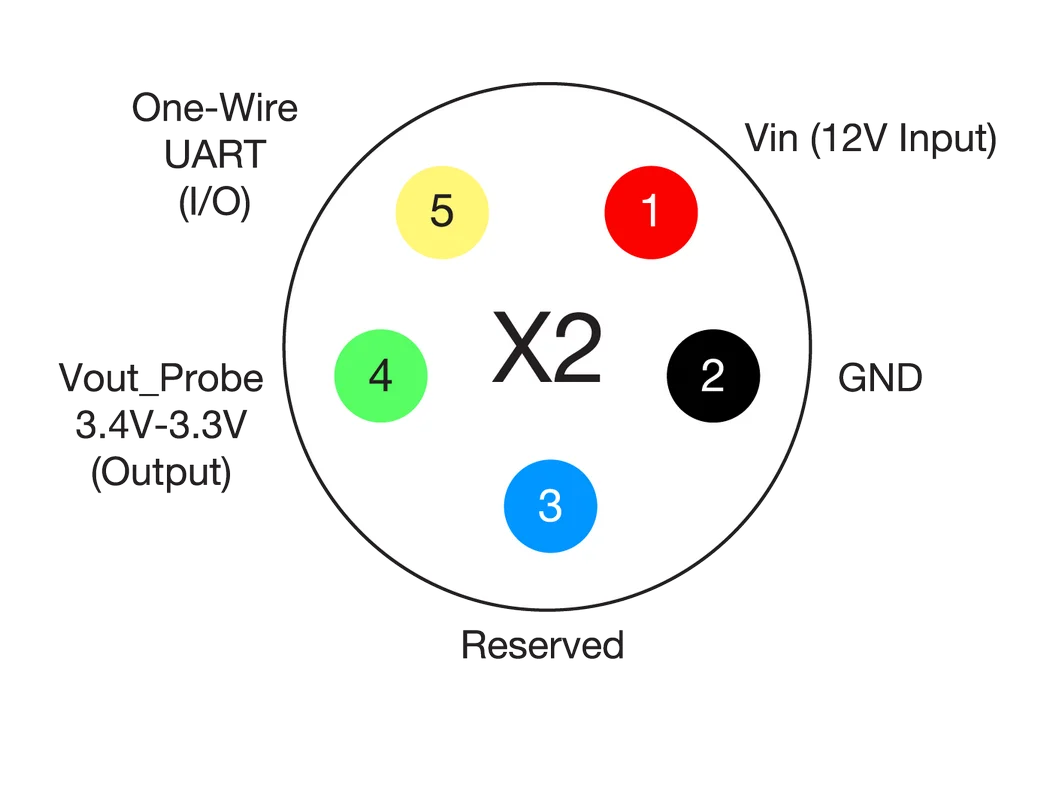

Figure 11507: RAK2560 WisNode Sensor Probe pin definition| Pin No. | Name | Type | Description | Remarks |
|---|---|---|---|---|
| 1 | NC | - | No function | - |
| 2 | GND | - | Ground | - |
| 3 | Reserved | - | Not defined | - |
| 4 | Vcc_Probe | PI | Power supply from the Hub | 3.3 VDC support mode; 3.4 V battery mode |
| 5 | One-wire UART | IO | Communication with Sensor Hub |
Power Supply
The Sensor Probe must be supplied through the 3.4 ~ 3.6 V SP11 Pin 4 from the main body of the Sensor Hub.
Power Consumption
| Mode | Condition | Min | Typical | Max |
|---|---|---|---|---|
| Active mode | Read sensor data | 3.2 mA | 3.5 mA | 3.6 mA |
| Sleep mode | Sleep mode | 11 uA | 14 uA | 16 uA |
Environmental Requirements
Operating Conditions
| Parameter | Min | Typical | Max |
|---|---|---|---|
| Normal operating temperature | –30° C | +25° C | +80° C |
Sensors
WisBlock Supported Sensors List
| Module | Observed Parameters | Sensor ID | Application |
|---|---|---|---|
| RAK1901 | Temperature Humidity | A | Environmental monitoring |
| RAK1902 | Barometer pressure Temperature Humidity | B | Environmental monitoring |
| RAK1904 | 3-axis acceleration | C | Shake/fall/move detection |
| RAK1906* | Gas Humidity Temperature Barometer pressure | D | Environmental monitoring |
For now, RAK1906 is not fully supported by the Sensor Probe. It will be added in the future.
Sensor Combination List
| Probe | Module combination | Function | ||||
|---|---|---|---|---|---|---|
| Temperature | Humidity | Barometer Pressure | 3-Axis Acceleration | Gas | ||
| A | RAK1901 | ✔ | ✔ | |||
| B | RAK1902 | ✔ | ✔ | ✔ | ||
| C | RAK1904 | ✔ | ||||
| D | RAK1906 | ✔ | ✔ | ✔ | ✔ | |
| AB | RAK1901+RAK1902* | ✔ | ✔ | ✔ | ||
| AC | RAK1901+RAK1904 | ✔ | ✔ | ✔ | ||
| BC | RAK1902+RAK1904 | ✔ | ✔ | ✔ | ✔ | |
| CD | RAK1904+RAK1906 | ✔ | ✔ | ✔ | ✔ | ✔ |
Due to RAK1901 and RAK1902 having temperature sensor with different accuracy levels, you will get two temperature values in the WisToolBox app.
Sensor Connection Diagram
The RAK2560 can support both Sensor Probes and Probe IO in all possible combinations.
If you want to add a Probe IO to your setup, the Sensor Hub must be supplied by an external 12 VDC power source.

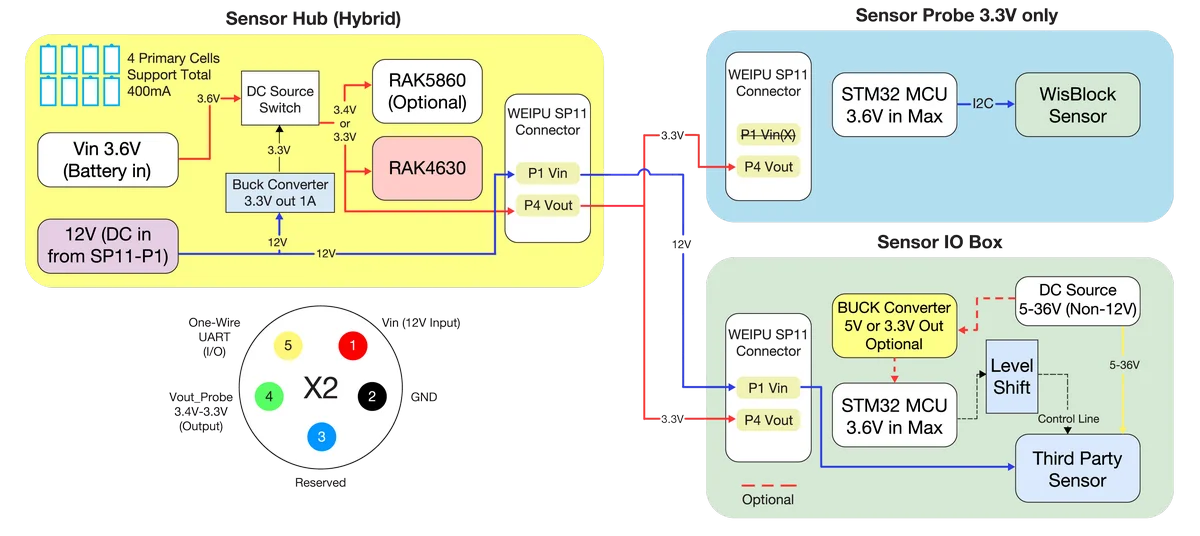

Figure 11508: RAK2560 WisNode Sensor connection schematicsCertification
CE Certification
FCC Certification
ISED Certification
