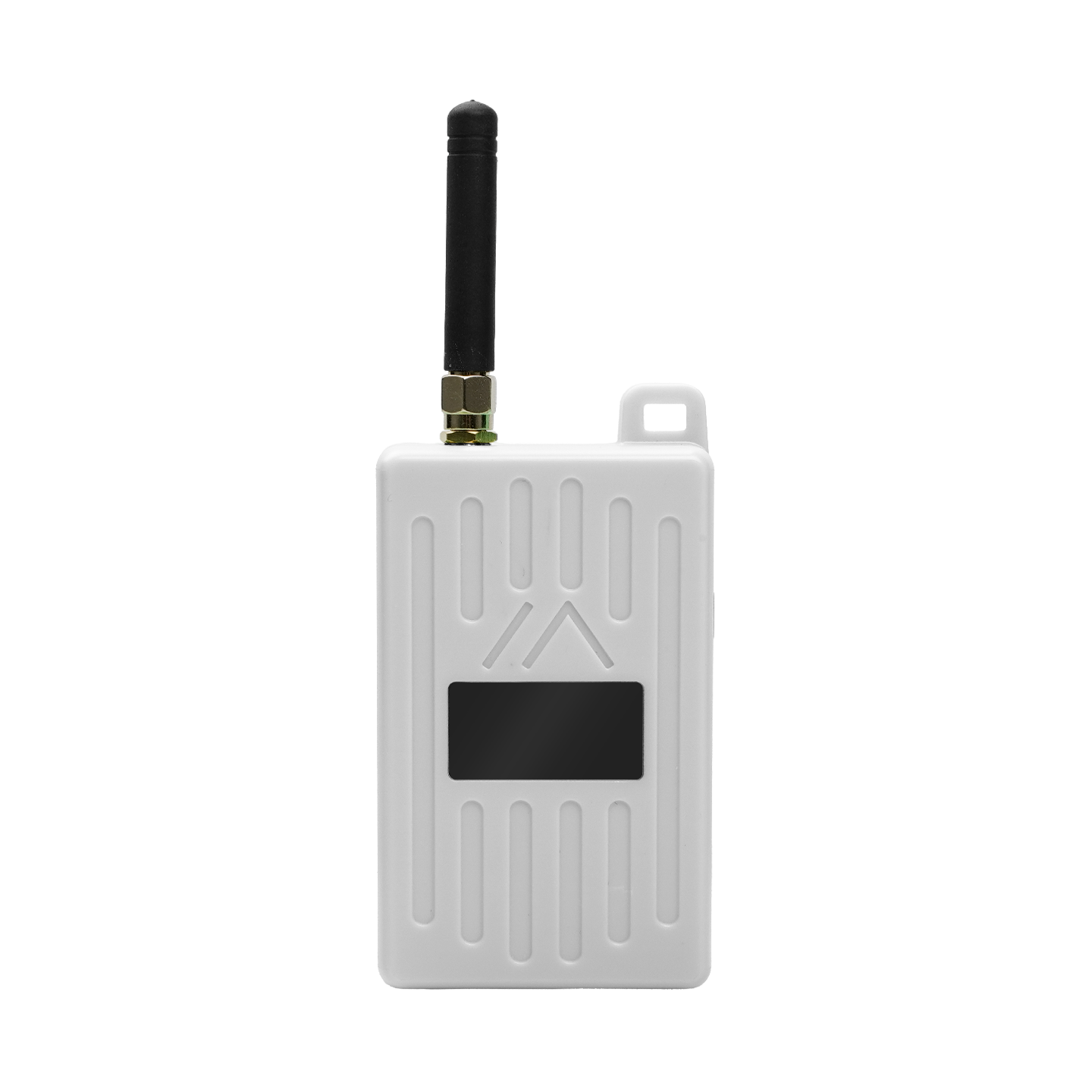

RAK10727 WisMesh Pocket V3
Product Description
The RAK10727 WisMesh Pocket V3 is a ready-to-use handheld device designed for the Meshtastic LoRa® mesh network. It comes pre-flashed with Meshtastic firmware, allowing users to get started without firmware installation or hardware assembly.
The device integrates an nRF52840 MCU and an SX1262 LoRa transceiver, together with a GNSS module, a 1.3-inch OLED display, and a 3-axis accelerometer. An integrated buzzer provides audible notifications.
The hardware is housed in an injection-molded enclosure with an IP67 protection rating. A built-in 3200 mAh rechargeable battery provides portable operation.
Key Features
- LoRa Connectivity: Integrated Nordic nRF52840 MCU and Semtech SX1262 LoRa transceiver.
- LoRa Frequency Range: Supports 860–930 MHz with a single hardware version.
- GNSS Positioning: Built-in GNSS module for location tracking and sharing.
- Bluetooth Connectivity: Bluetooth Low Energy (BLE) for smartphone pairing.
- OLED Display: 1.3-inch OLED display for device information.
- Motion Sensor: LIS2DH 3-axis accelerometer.
- IP67 Protection: Injection-molded enclosure with an IP67 protection rating.
- Rechargeable Battery: Built-in 3200 mAh rechargeable battery with NTC temperature monitoring.
- Buzzer:
- Maximum sound pressure level: 85 dB
- Maximum current: 95 mA
Typical Applications
- Outdoor Communication: Exchange messages and share locations during hiking, camping, and other outdoor activities.
- Community Mesh Networks: Join existing Meshtastic networks for off-grid communication.
- Field Operations: Support communication and location sharing for teams working in areas without conventional network coverage.
