WisMesh Station Datasheet
Overview
Description
The WisMesh Station is a ready-to-deploy node designed to extend and strengthen Meshtastic networks. Built on the Raspberry Pi 4B platform and powered by the WisMesh Pi HAT (RAK6421), it integrates a modular LoRa transceiver and the RAK12501 GNSS GPS module to provide reliable long-range LoRa communication with precise location tracking.
The RAK6421 is fully compliant with the Raspberry Pi HAT+ specification and includes an independent EEPROM for storing metadata and device tree information. This enables Meshtastic firmware to automatically detect and configure connected hardware modules for simplified deployment and operation.
WisMesh Station is available in two variants based on the LoRa module used:
- RAK8622 (WisMesh Station) – equipped with the RAK13300 with up to 22 dBm transmit power
- RAK8623 (WisMesh Station High Power) – equipped with the RAK13302 with up to 30 dBm transmit power
With modular plug-and-play support for LoRa radios, GNSS, and additional peripherals, WisMesh Station is ideal for building Meshtastic routers, sensor gateways, remote monitoring systems, and LoRa development or test platforms.
Ensure the antenna is connected before powering on the device to avoid damage to the LoRa transceiver.
Model Variants
- RAK8622 (WisMesh Station): Raspberry Pi 4B + RAK6421 + RAK12501 + RAK13300
- RAK8623 (WisMesh Station High Power): Raspberry Pi 4B + RAK6421 + RAK12501 + RAK13302
Specifications
| Parameter | Value |
|---|---|
| Platform | Raspberry Pi 4B |
| RAM | 2 GB |
| LoRa Module Options | RAK13300 / RAK13302 |
| Frequency Bands | Depends on LoRa module variant |
| Maximum TX Power | 22 dBm / 30 dBm |
| GNSS | RAK12501 |
| Power Input | 5 VDC |
| Recommended Current | >3 A |
| HAT Compatibility | Raspberry Pi HAT+ |
Device Overview

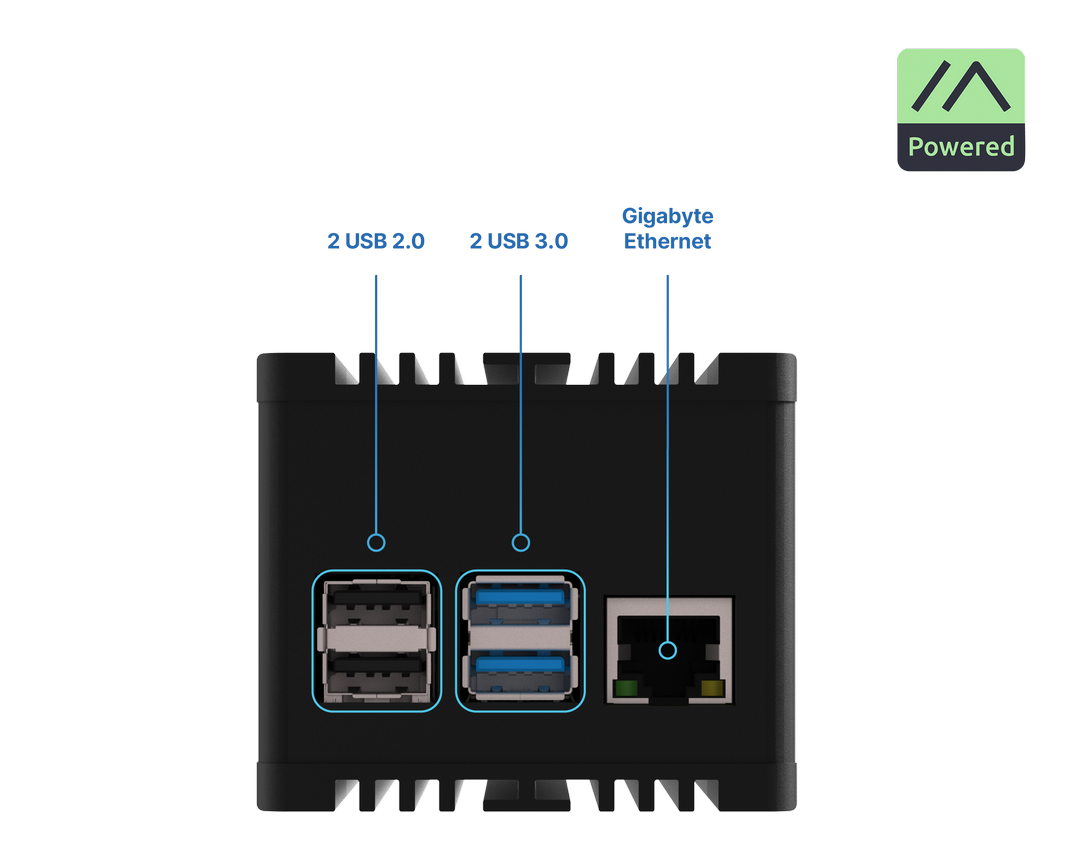

Figure 1: WisMesh Station front view

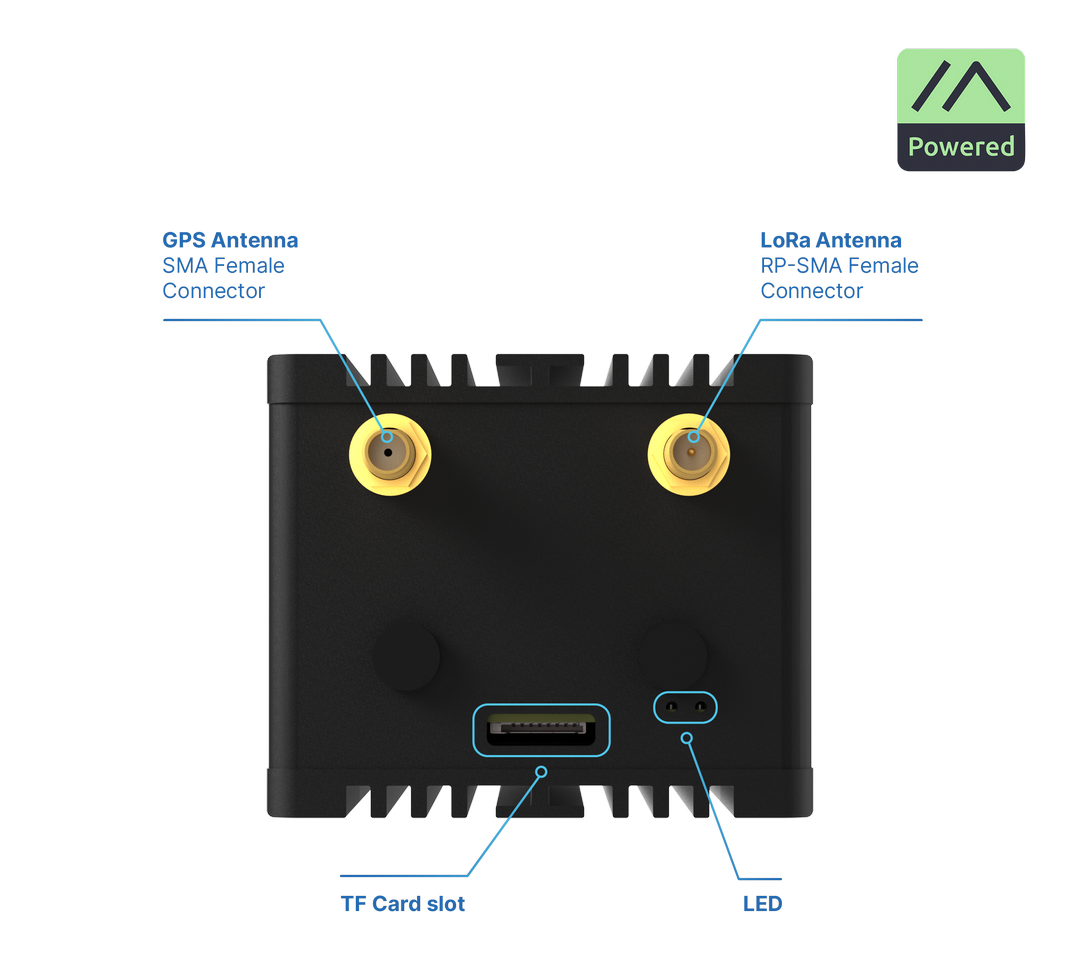

Figure 1: WisMesh Station back viewHardware
Raspberry Pi 4B
The Raspberry Pi 4 Model B is the fourth-generation flagship single-board computer from the Raspberry Pi Foundation. Both the RAK8622 and RAK8623 use the 2 GB RAM version.
RAK6421
RAK6421 is a powerful Raspberry Pi HAT that lets you connect WisBlock modules directly to any Pi. It is compatible with the HAT+ specification by using an independent EEPROM for metadata and device tree information.
RAK12501
RAK12501 is a GNSS module based on the Quectel L76K.
RAK13300
RAK13300 is based on the Semtech SX1262 module for LoRa and LoRaWAN applications.
RAK13300 WisBlock LoRaWAN Module with Semtech LoRa Chip - SX1262 Arduino
RAK13302
The RAK13302 LoRa module is a 1W LoRa Transceiver module. It is built on the Semtech SX1262 module for LoRa, and adds a SKY66122 booster LoRa front-end connectivity.
RAK13302 1W Module for LoRa® | SX1262 + SKY66122 Booster | Raspberry Pi Compatible
Electrical Characteristics
Recommended Operating Conditions
Use the adapter that comes with the device to power it. If an alternative power adapter is used, ensure the following:
- Input voltage: 5 V
- Output current capability: greater than 3 A
Mechanical Characteristics
The device uses a metal enclosure with the following dimensions:
| Dimension | Value |
|---|---|
| Length | 92 mm |
| Width | 68.3 mm |
| Height | 57.5 mm |

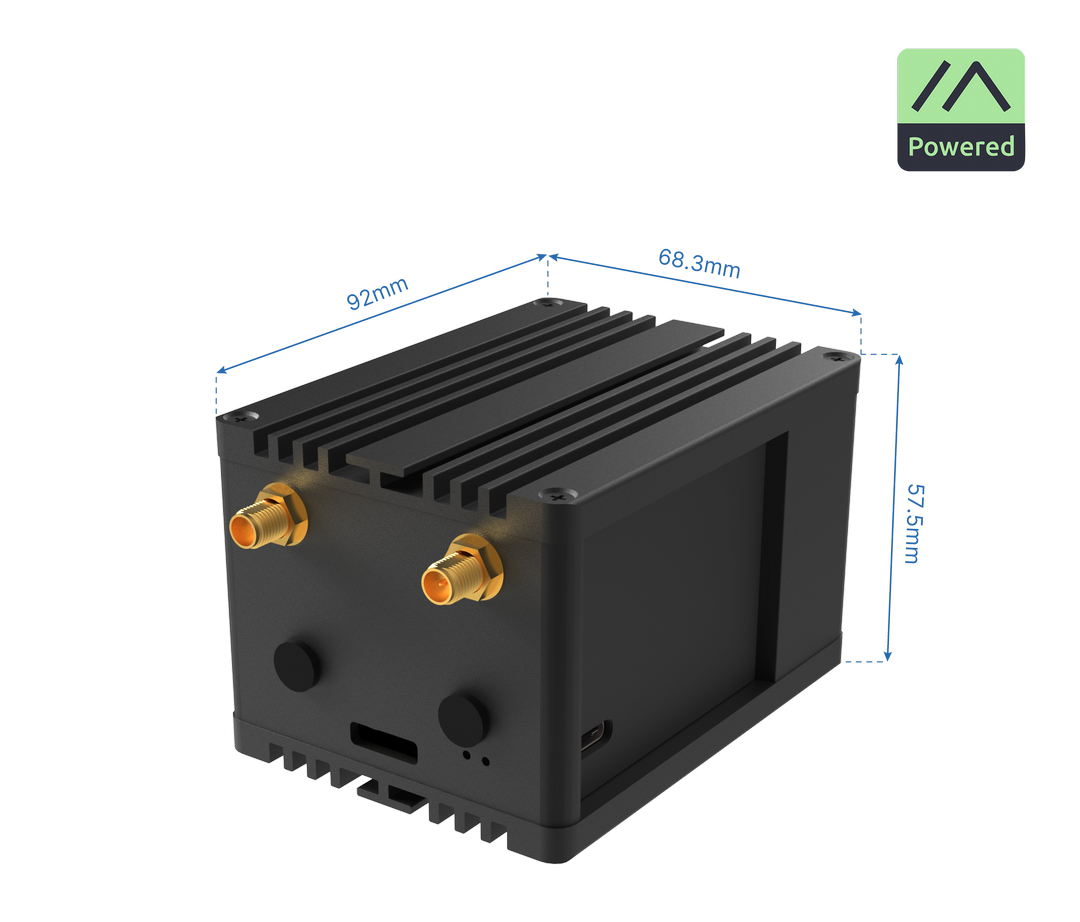

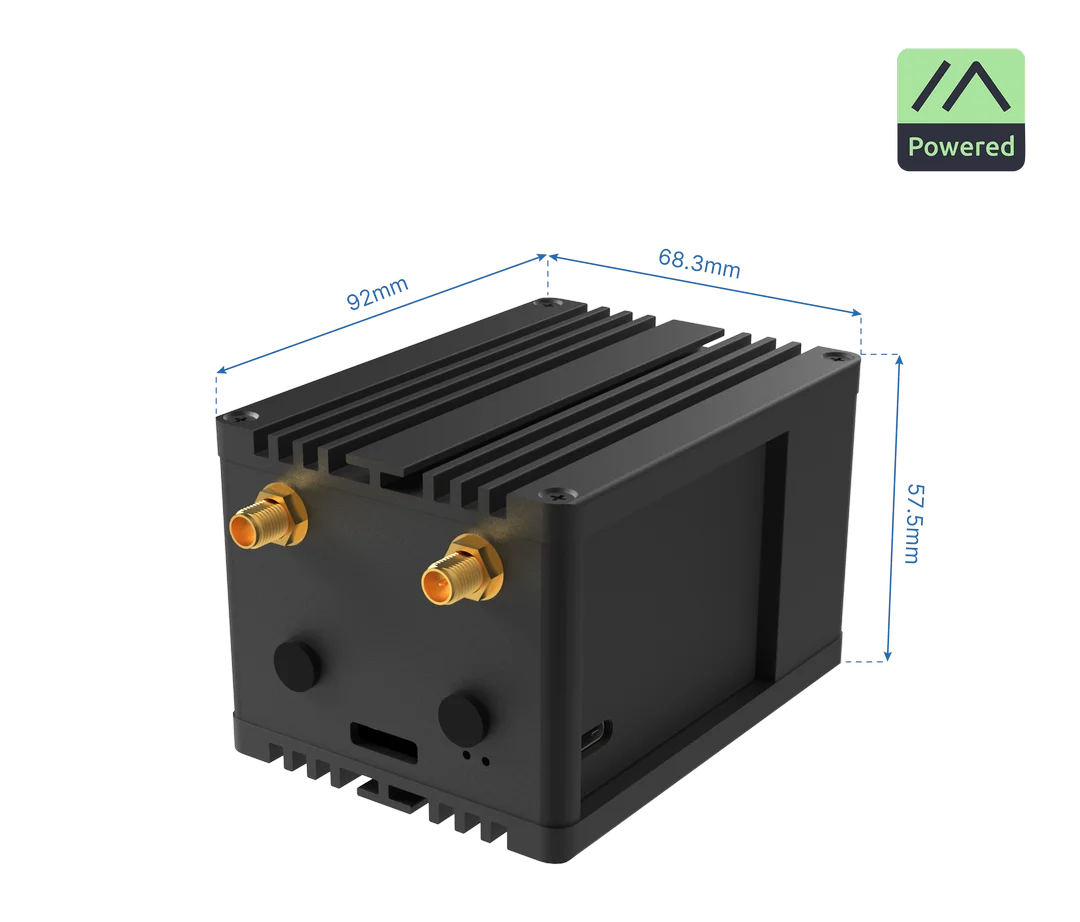

Figure 1: WisMesh Station mechanical dimensions
