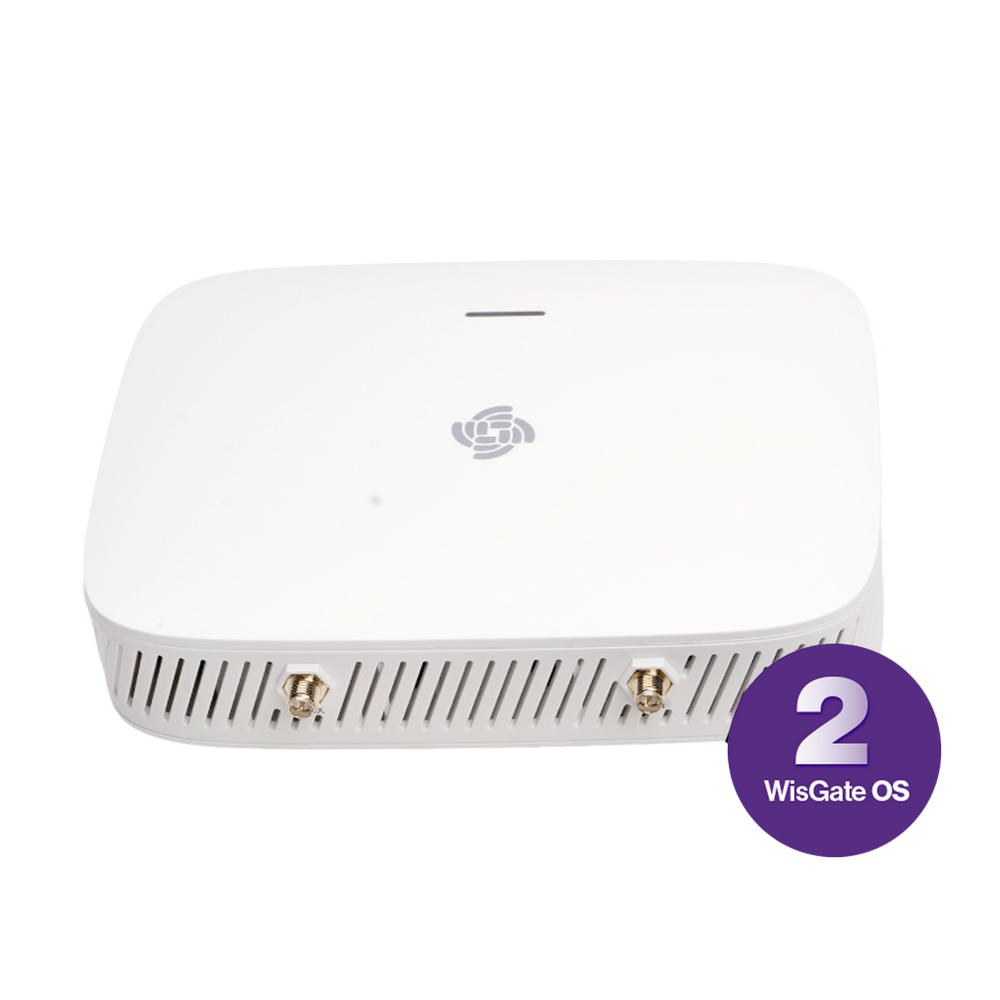

RAK7268CV2-V Diagnostics & Tools

The Diagnostics section provides access to system logs and built-in network utilities that help monitor gateway behavior, verify connectivity, and troubleshoot network or device issues.

System Log

You can view real-time system logs directly from the Web UI under Diagnostics > System Log. Enable Auto Refresh to continuously stream new log entries as the gateway operates.

If you need deeper analysis or remote access to logs, the gateway supports multiple methods for viewing and retrieving system logs.

Access System Logs

This comprehensive guide provides an overview of all available methods to access system logs on RAK LoRaWAN® gateways.

Guide Link: How to Access System Logs on RAK LoRaWAN® Gateways

Network Utilities

The Network Utilities section provides diagnostic tools to test and validate network connectivity. Access them via Diagnostics > Network Utilities in the Web UI.

• Ping: Tests the reachability of a host and measures network latency.
• Trace: Displays the route that packets take to reach a destination and helps identify possible routing issues.
• Nslookup: Verifies DNS resolution by checking domain name mappings to IP addresses.

These tools are useful for troubleshooting communication problems, confirming Internet access, or diagnosing server connectivity issues.

For detailed usage instructions, refer to the WisGateOS 2 User Manual > Diagnostics > Network Utilities.
