Product Description

The RAK9105U PowerLink is a LoRaWAN-based remote power controller designed for managing power supply to devices such as gateways, LTE CPEs, WiFi routers, and IP cameras, especially in remote or hard-to-reach deployment environments.

Figure 1: RAK9105U Outdoor Deployment

• Remote Power Switching
  By placing the RAK9105U between the power source and the target device, users can send LoRaWAN downlink commands to remotely toggle the power on or off.
• Remote Device Reboot
  Ideal for scenarios where devices freeze or require periodic reboots, such as LoRaWAN gateways or LTE CPEs in field installations.

Product Features

• Integrated RAK3172 LoRa module for long-range, low-power wireless control
• Supports LoRaWAN 1.0.3 Class C protocol
• Multi-band compatibility for global deployment
• Onboard LoRa antenna (Optional external antenna via IPEX connector)
• Remote power switching and rebooting via LoRaWAN® downlink commands
• Plug-and-play integration available with Datacake platform
• Wide-range DC power input: 9–24 V via terminal block or DC jack (Compatible with RAK Battery Plus system for solar-powered deployments)
• Triple output design:
  • 1 always-on 12 V_DC output
  • 2 controllable outputs (12 V + 5 V USB-C)

Usage Scenarios

• Plug-and-Play Solution Kit
  Pre-configured with a LoRaWAN gateway and fully integrated into the Datacake platform, enabling immediate remote power control via mobile app—ideal for rapid deployment and PoC testing.
• Custom Integration
  Connect the RAK9105U to your own LoRaWAN network server and application platform for full control, automation, and cloud integration. Suitable for scalable and production-grade environments.

How It Works

The RAK9105U PowerLink enables reliable remote power control by functioning as an intelligent switch between a DC power source and a connected device (e.g., gateway, LTE router, camera).

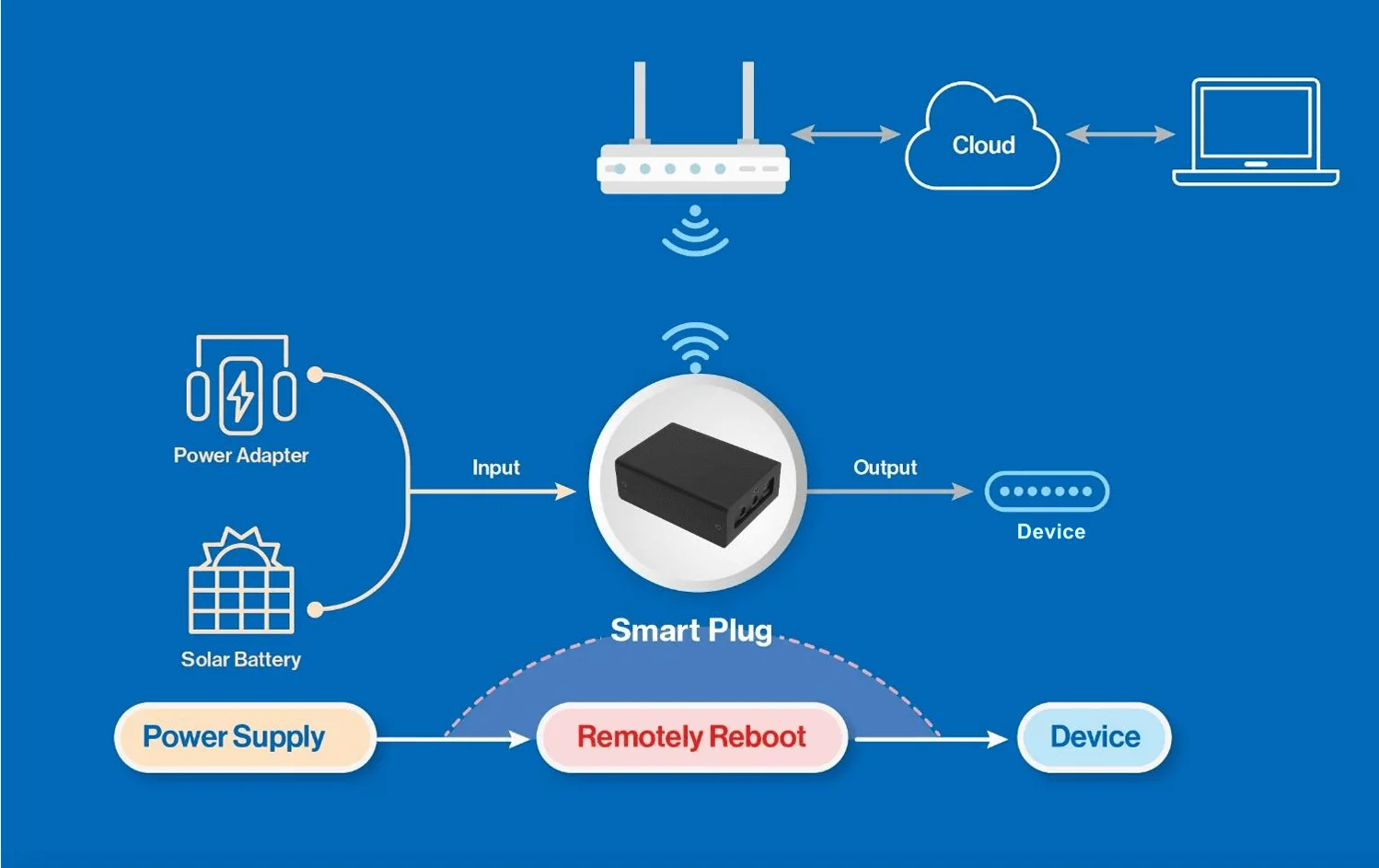

Figure 1: RAK9105U Connectivity Overview

Power Input Options
The RAK9105U is powered by a 9–24 V_DC source, such as a power adapter or a solar battery system.

Connection to Target Device
It is placed between the power source and your end device (e.g., gateway), supplying power via its output ports.

LoRaWAN Connectivity
The built-in RAK3172 module connects to a LoRaWAN network, allowing the device to receive downlink commands from the cloud.

Remote Reboot Function
When a user sends a command (e.g., via Datacake), the RAK9105U toggles one of its output channels—effectively rebooting the connected device.

Always-On Listening
Thanks to Class C operation, the RAK9105U constantly listens for commands, ensuring fast response time without delay.
