RAK9105U PowerLink - Remote Reboot Switch for LoRaWAN Datasheet

Overview

Description

The RAK9105U PowerLink is a LoRaWAN®-enabled remote power controller designed to remotely manage the power supply of devices such as LoRaWAN gateways, LTE CPEs, Wi-Fi routers, and IP cameras, especially in remote or hard-to-reach deployment environments.

By installing the RAK9105U between the power source and the target device, you can remotely switch controllable outputs through LoRaWAN downlink commands. This allows connected devices to be power-cycled without requiring on-site maintenance.

The RAK9105U can be powered by either an external 9–24 VDC power source or RAK Battery Plus. When connected to RAK Battery Plus through the power and RS485 interface, the RAK9105U can also periodically read Battery Plus operating data and report it over LoRaWAN.

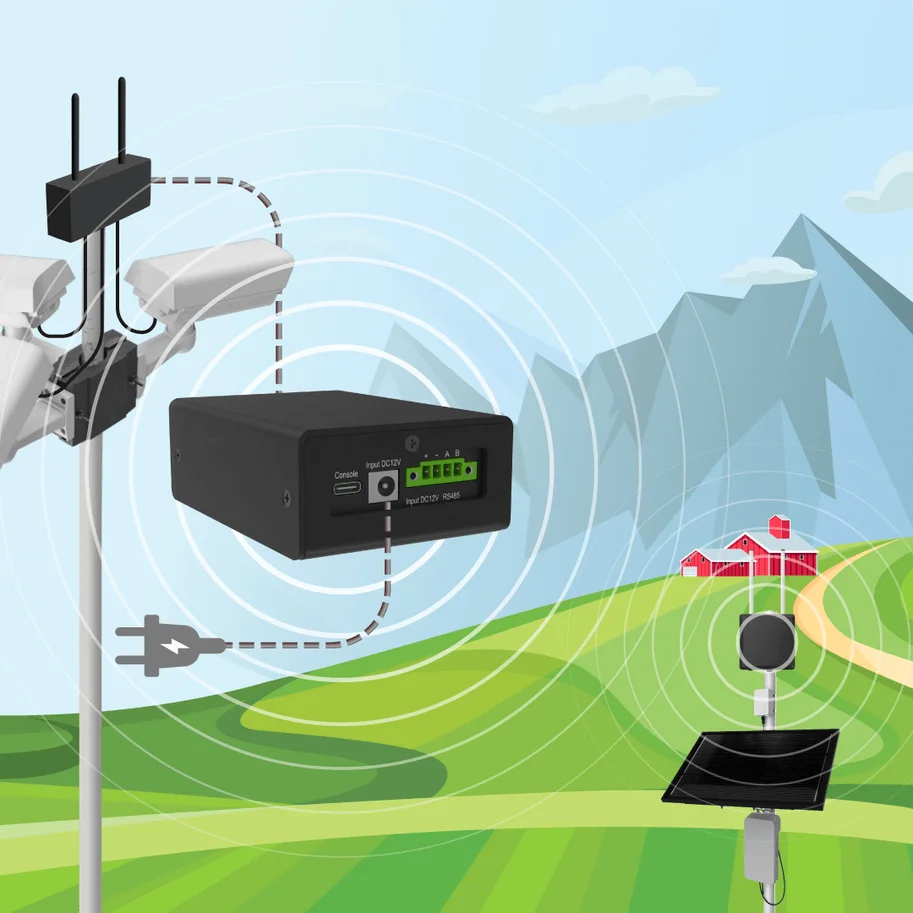

Figure 1: RAK9105U Outdoor Deployment

Features

• Integrated RAK3172 module for long-range LoRaWAN communication
• Supports LoRaWAN 1.0.3 and Class C operation
• Multi-band compatibility for global deployment
• Onboard LoRa antenna; an optional IPEX connector for an external antenna is available upon request
• Remote power switching and rebooting via LoRaWAN downlink commands
• Supports external 9–24 VDC power input through a DC jack
• Supports RAK Battery Plus through the power and RS485 interface
• Supports periodic Battery Plus operating data reporting over LoRaWAN
• Triple output design:
  • 1 always-on DC output (Output 1)
  • 1 controllable DC output (Output 2)
  • 1 controllable 5 V USB Type-C output (Output 3)
• Configurable through WisToolBox

Specifications

Block Diagram

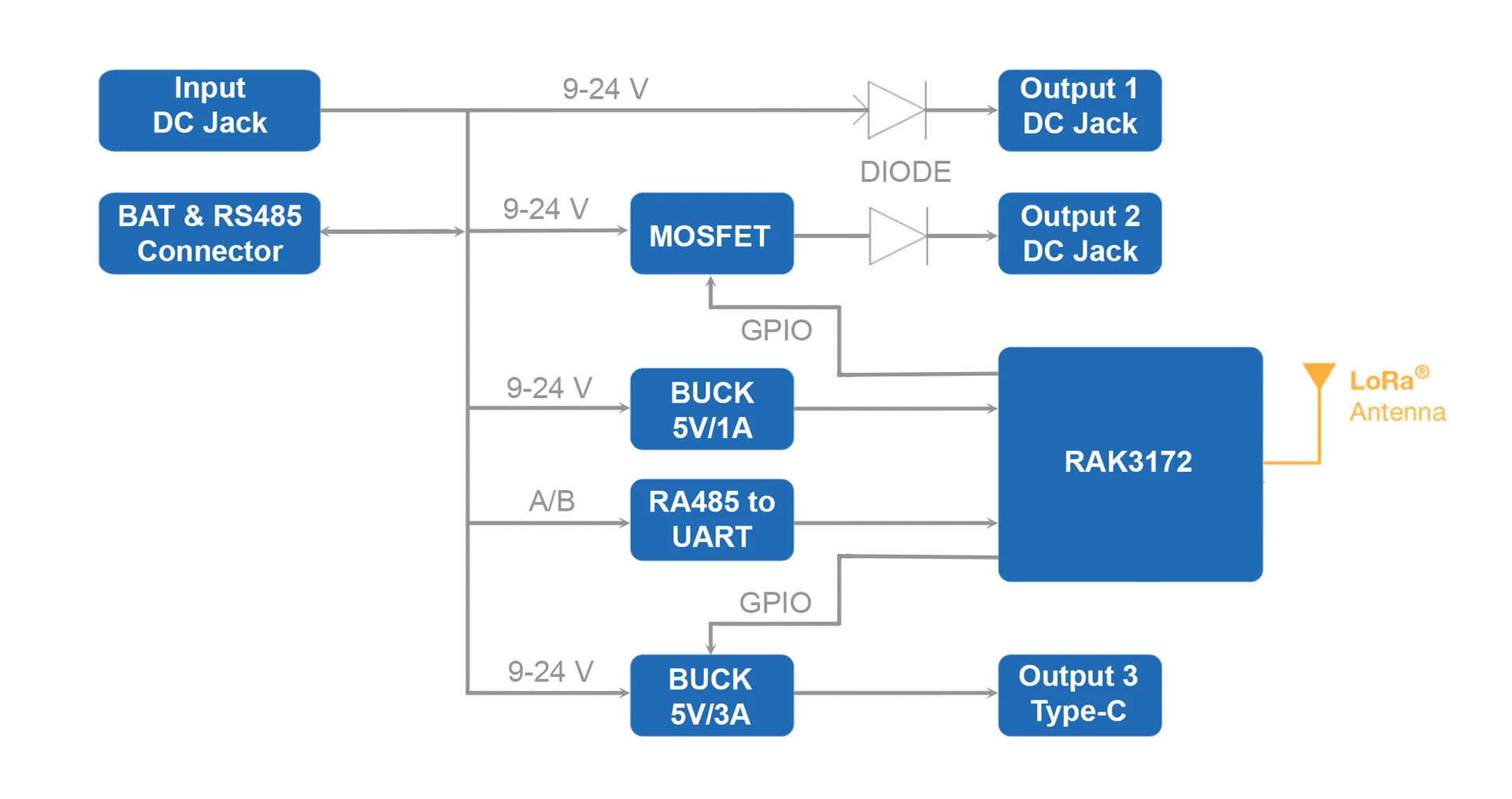

Figure 1: RAK9105U block diagram

Hardware

The hardware specifications are categorized into six parts. The section discusses the interfacing and corresponding functions, electrical, environmental characteristics, and antennas.

Interface

DC Input Interface

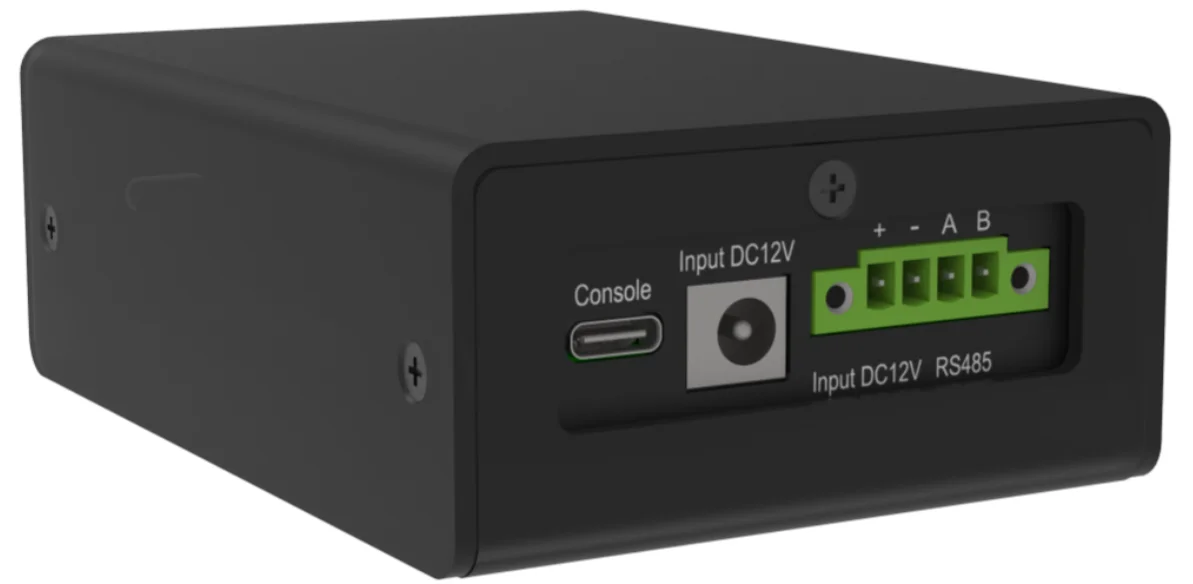

Figure 1: DC input interface

Interface	Description	Specification / Remark
12 VDC Input	DC power jack for an external power supply	Supports 9–24 VDC input
12 VDC Input (RS485)	4-pin terminal block for DC power input and optional RS485 communication	Compatible with RAK Battery Plus or other RS485-enabled systems

For the DC power connection on the 4-pin terminal block:

Terminal	Description
+	Connect to the positive output terminal of the power source or Battery Plus
-	Connect to the negative output terminal of the power source or Battery Plus

For optional RS485 communication:

Terminal	Description
A	Connect to RS485+ of Battery Plus
B	Connect to RS485- of Battery Plus

Console

The Console interface is a USB Type-C port used to configure the onboard RAK3172 MCU or upgrade firmware via WisToolBox.

DC Output Interface

Figure 1: DC output interface

Interface	Description	Specification
Output 1	DC power output, always on	Output voltage follows the input voltage: VOUT1 = VIN - 0.6 V; maximum current: 2 A
Output 2	MCU-controlled DC power output	Output voltage follows the input voltage: VOUT2 = VIN - 0.6 V; maximum current: 2 A
Output 3	MCU-controlled 5 V USB Type-C output	Regulated 5 V output; maximum current: 3 A

Antenna

The RAK9105U uses an integrated PCB antenna by default. An optional external antenna interface using an IPEX connector is also available.

Parameter	Value
Peak gain	2 dBi
Efficiency	> 70%
Polarization	Vertical

LoRaWAN Specifications

Parameter	Specification
Chipset	RAK3172 (STM32-based)
LoRaWAN Version	LoRaWAN 1.0.3
Device Class	Class C
Activation Mode	OTAA (Over-The-Air Activation)
Frequency Bands	EU868, IN865, RU864, AU915, US915, KR920, AS923-1/2/3/4, EU433, and CN470

Environmental Characteristics

Feature	Specifications
Type of use	Indoor environment
Operating temperature	-30° C to +75° C
Storage temperature	-40° C to +85° C
Operating humidity	0-95%RH non-condensing
Storage humidity	0-95%RH non-condensing

Mechanical Characteristics

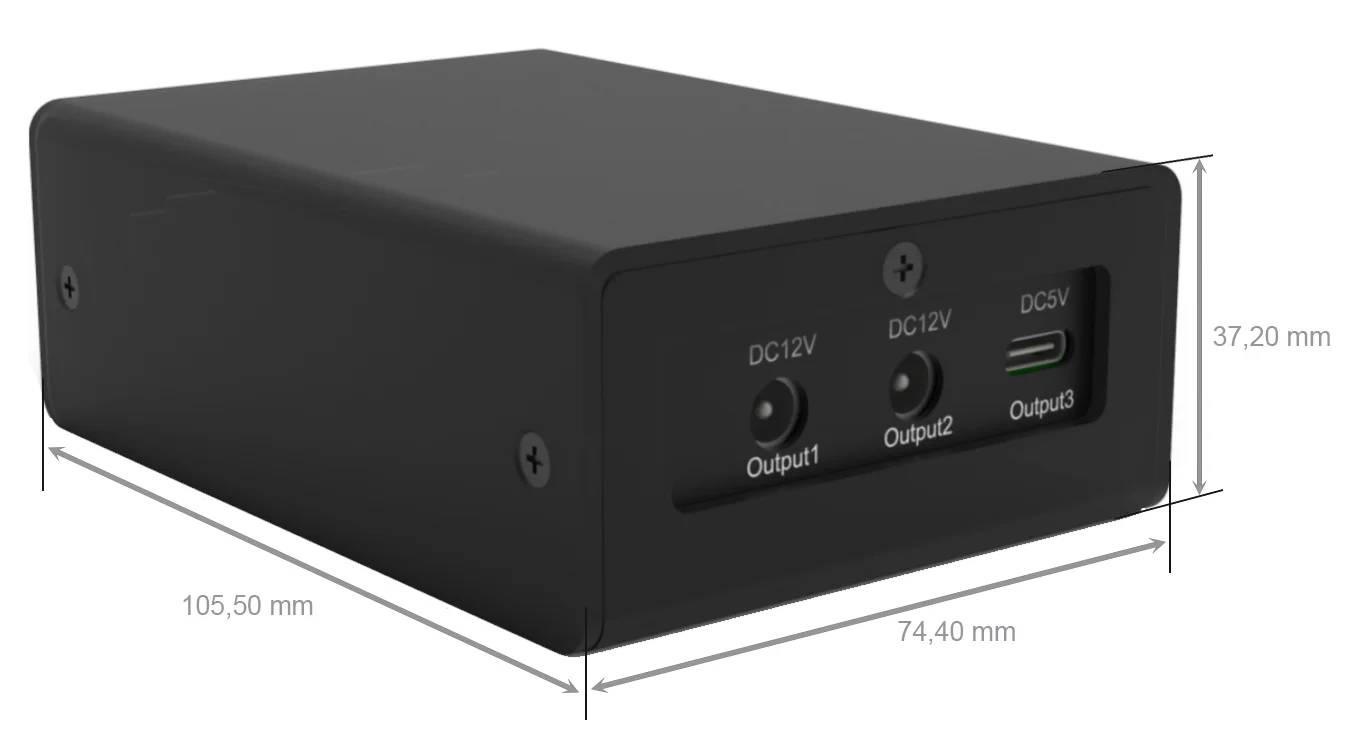

Figure 1: RAK9105U dimensions

• Dimensions: 105.5 mm × 74.4 mm × 37.2 mm
• Enclosure Material: PMMA
