Custom LoRaWAN Deployment and Remote Power Control

Use this guide when integrating the RAK9105U PowerLink into your own LoRaWAN® infrastructure.

Prerequisites

Package Contents

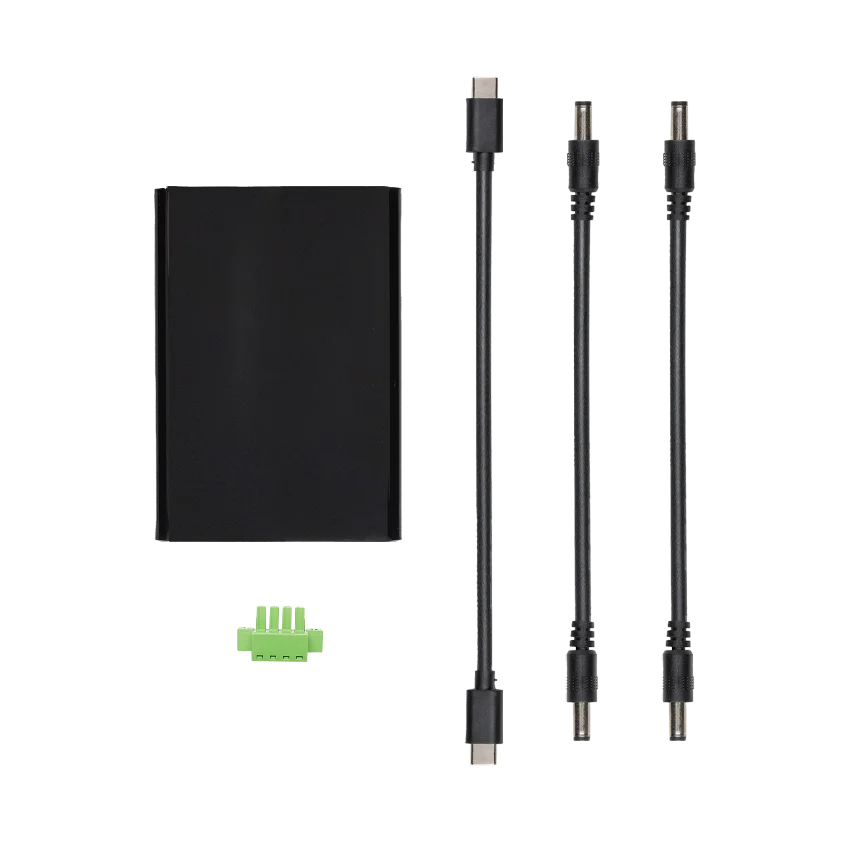

Figure 1: RAK9105U package contents

• 1 × RAK9105U PowerLink
• 1 × USB Type-C cable
• 2 × DC power cables
• 1 × 4-pin terminal block

Additional Requirements

• 9–24 VDC external power source
• Computer with WisToolBox installed
• LoRaWAN gateway within radio range
• Access to a compatible LoRaWAN Network Server
• Target device to be remotely powered or rebooted

Configure the RAK9105U

Before completing the final hardware installation, configure the RAK9105U and verify its LoRaWAN connection through the USB Console interface.

Connect the RAK9105U to a Computer

1. Connect the Console port of the RAK9105U to your computer using a USB Type-C cable.
2. Open WisToolBox.
3. Click START to detect connected devices.

Figure 1: Start device detection in WisToolBox

4. After the device is detected, click CONNECT.

Figure 1: Connect the RAK9105U in WisToolBox

5. Select the detected device to open its configuration page.

Figure 1: Open the RAK9105U device configuration

Configure LoRaWAN Parameters

Configure Global Settings

In PARAMETERS > Global Settings, configure:

• Join mode: OTAA (Default, non-configurable)
• Active region: Select the frequency region used by your gateway and Network Server.

Figure 1: Configure LoRaWAN global settings

NOTE

The RAK9105U supports OTAA activation. The configured frequency region must match the frequency plan used by the gateway and Network Server.

Configure LoRaWAN Credentials

Go to LoRaWAN Keys, ID, EUI and configure or record:

• Application EUI
• Application Key
• Device EUI

Figure 1: Configure LoRaWAN credentials

IMPORTANT

The DevEUI, AppEUI, and AppKey configured on the RAK9105U must match the corresponding values registered on the LoRaWAN Network Server.

Mismatched credentials will prevent the device from joining the network.

Click APPLY COMMAND to apply the configuration.

Figure 1: Apply the RAK9105U configuration

Connect to a LoRaWAN Network Server

Choose one Network Server according to your deployment.

The following examples assume that a compatible LoRaWAN gateway is already deployed and connected to the selected Network Server.

RAK Built-in Network Server

This section uses the Built-in Network Server available on a RAKwireless WisGate gateway.

Enable the Built-in Network Server

1. Log in to the WisGateOS 2 Web UI.
2. Navigate to LoRa.
3. Set Work Mode to Built-in Network Server.

Figure 1: Configure Built-in Network Server mode

Create an Application

1. Go to Applications.
2. Click Add application.
3. Configure the application settings.

Figure 1: Create an application

• Application Name: Enter a name for the application.

• Application Description: Optionally, provide a brief description of the application.

• Application Type: Select the appropriate type from the drop-down menu.

  • Unified Application Key: All devices will use the same application key.
  • Separate Application keys: Each device uses its own App Key (entered during device registration)
  NOTE

  • If a unified Application Key is used, ensure that it matches the AppKey configured on the RAK9105U.
  • If Auto Add Device is enabled, also ensure that the Application EUI matches the RAK9105U.

4. Click Save application.

Register the RAK9105U

If Auto Add Device is enabled, the RAK9105U can be added automatically after the Network Server receives its join request.

Otherwise:

1. Go to End devices.

2. Click Add end device.

3. Configure the device information settings.

   • Activation Mode: Select OTAA.
   • End Device (Group) Name: Enter the name of the device for identification.
   • Class: Select Class C.
   • LoRaWAN MAC Version: Select V1.0.3 for the device.
   Figure 1: Add Device Manually

4. In the next step, enter the End Device EUI (Main) (must match the one set in WisToolBox) and click Add to “End Devices List”.

   Figure 1: Enter the End Device EUI

5. Click Add end devices. Confirm and complete the device addition.

   Figure 1: RAK9105U in the End Devices list

A recent Last Seen timestamp indicates that the Network Server has received data from the device.

The Things Stack

This section explains how to register the RAK9105U PowerLink on The Things Stack (TTN v3) using LoRaWAN OTAA activation, assuming the gateway is already deployed and connected to your TTN environment.

Create an Application

1. Log in to The Things Stack Console.
2. Go to Applications.
3. Click Add Application.
4. Enter the required application information.
5. Click Create Application.

Figure 1: Create an application in The Things Stack

Register the RAK9105U

1. Open the application.

2. Click Register end device.

   Figure 1: Register end device on TTN

3. Configure General Parameters

• Input Method: Select Enter end device specifics manually.
• Frequency Plan: Match your gateway’s region (e.g., EU868)
• LoRaWAN Version: Select 1.0.3
• JoinEUI: Enter the value that matches your RAK9105U configuration

4. After confirming the JoinEUI, proceed to fill in:

• DevEUI: Same as configured on the RAK9105U
• AppKey: Must match the value set on the RAK9105U (or auto-generated during setup)
• End device ID: Enter a unique identifier (e.g., my-device)

Figure 1: End Device Parameters

5. Click Register end device to complete.

After the device joins, verify that recent activity appears in the console.

Figure 1: RAK9105U activity in The Things Stack

ChirpStack v4

This section explains how to register the RAK9105U PowerLink on ChirpStack v4 using OTAA activation, assuming that your LoRaWAN gateway is already deployed and connected to a functioning ChirpStack server.

Create an Application

1. In ChirpStack, go to Applications.
2. Click Add application.
3. Enter the application name and optional description.
4. Click Submit.

Figure 1: Create a ChirpStack application

Create a Device Profile

Before adding a device in ChirpStack v4, you need to create a Device Profile, which defines key configuration parameters for your LoRaWAN device.

The Device Profile ensures that ChirpStack correctly interprets how the device communicates with the network.

1. Go to Device Profiles.
2. Click Add device profile.
3. Configure:

• Name: Enter a profile name (e.g., US915-OTAA-ClassC)
• Region: Select the region matching your gateway (e.g., US915, EU868)
• MAC version: LoRaWAN 1.0.3
• Regional parameters revision: Choose RP002-1.0.3

Figure 1: Configure the ChirpStack device profile

4. In the Class-C tab, enable Device supports Class-C.
5. Click Submit.

Figure 1: Enable Class C support

Register the RAK9105U

1. Open the application.
2. Click Add device.
3. Configure:

• Name: Enter a name for your device
• Description: (Optional) Add a description to help identify the device
• Device EUI (EUI64): Same as configured on the RAK9105U
• Join EUI (EUI64): Same as configured on the RAK9105U
• Device profile: Select the one you just created

Figure 1: Register ChirpStack device details

4. In OTAA Keys, enter the Application Key configured on the RAK9105U.

Figure 1: Configure the RAK9105U OTAA credentials

5. Click Submit.

After a successful join, verify that the device displays a recent Last Seen timestamp.

Figure 1: Submit ChirpStack device registeration

Hardware Installation

After the LoRaWAN configuration has been verified, connect the RAK9105U to the target device and final power source.

Connect the Target Device

Connect the target device to one of the controllable outputs:

• Output 2 - MCU-controlled DC output
• Output 3 - MCU-controlled 5 V USB Type-C output

Connect the Power Supply

Connect the selected power source according to your deployment.

For a conventional installation, connect a 9–24 VDC external power source to the RAK9105U DC input.

If the RAK9105U is used with RAK Battery Plus, follow the dedicated RAK Battery Plus Solution Guide for the power and RS485 wiring.

After power is applied, the RAK9105U uses the previously configured LoRaWAN settings to reconnect to the Network Server.

Verify Uplink Communication

After the RAK9105U reconnects to the network:

1. Open the device page on the Network Server.
2. Verify that uplink packets are received periodically.
3. Confirm that the device shows recent activity.

The uplink content depends on the deployment:

• When powered from an external DC source, uplinks include RAK9105U device and output status information.
• When connected to RAK Battery Plus, uplinks can also include Battery Plus operating data.

For complete FPort definitions, payload formats, field definitions, and scaling rules, refer to the RAK9105U Uplink and Downlink Data Reference.

Verify Downlink Power Control

After uplink communication is confirmed, send a downlink command to verify remote output control.

The basic output control commands are:

Payload	Function
0000	Turn Output 3 (5 V USB Type-C) OFF
0001	Turn Output 3 (5 V USB Type-C) ON
0100	Turn Output 2 (DC output) OFF
0101	Turn Output 2 (DC output) ON

For complete downlink command definitions and reporting commands, refer to the RAK9105U Uplink and Downlink Data Reference.

NOTE

A connected device with internal capacitors or backup power storage may not power off immediately after the RAK9105U output is disabled.

Next Steps

Continue according to your application requirements:

• RAK9105U Uplink and Downlink Data Reference - Understand uplink payloads, Battery Plus operating data, output status, reporting intervals, and supported downlink commands.
• RAK9105U Application Integration - Integrate the RAK9105U with The Things Stack and Datacake for device data visualization and remote power control.
